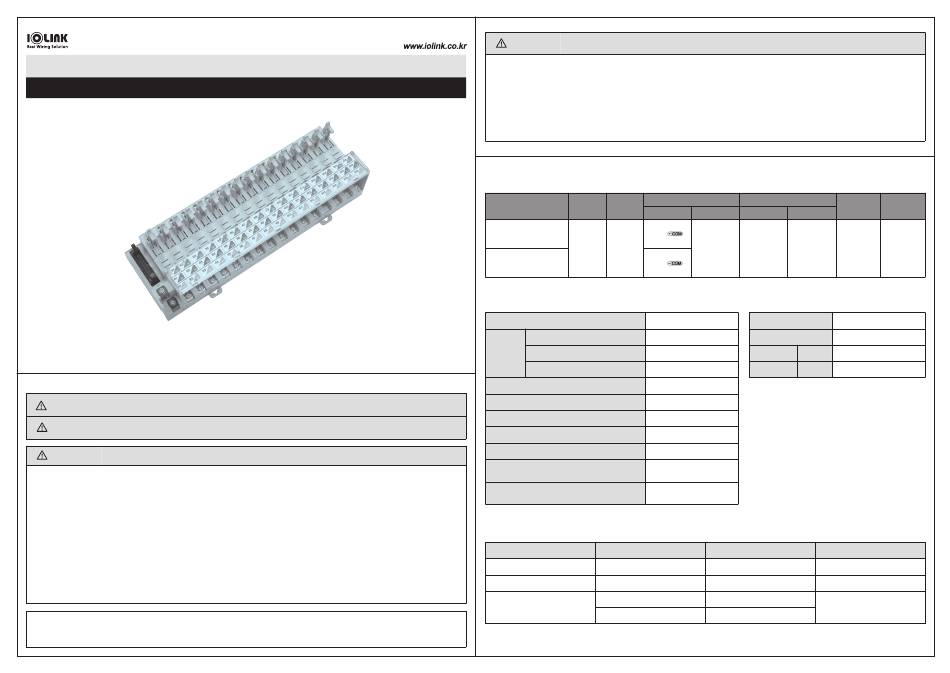

IOLINK R16W Series User Manual

R16W Series
Hybrid 16points Relay Terminal Socket
Thank you for purchasing product of SAMWON ACT.
Please check model of product that you purchase first, and read this manual prior to use it.
Caution for Safety
●
Caution Case that results in serious damage in human body or equipment, and fire if user handles this equipment wrongly
Warning
Case that results in slight damage in human body or equipment, and fire if user handles this equipment wrongly
Caution
1. Do Not use other voltage except appointed voltage.
It may be the cause of fire or damage of equipment.
2. Use it within nominal voltage and current which are marked on load.
It may be the cause of fire or damage of equipment.
3. Check COMMON polarity of using controller (PLC, etc) first, and then select proper product.
It may be the cause of fire or damage of this equipment and user's.
1) COMMON Polarity of controller is '+' (NPN TYPE) : R16W-NC-DC24V
2) COMMON Polarity of controller is '-' (PNP TYPE) : R16W-PC-DC24V
4. Please make sure to check the internal wiring diagram of the terminal block and the arrangement
of the controller PIN (terminal) when making the connection cable between the controller (PLC etc.).
It may be the cause of malfunction or damage of this equipment and user's.
※ The connection cable for PLC of various makers is provided by us. Please refer to the
catalogue or contact Head or branch office if you need more detail models and specifications.
User's Guide
Warning
1. Plug or unplug power line and/or connector for signal after making sure to shut off power so as that
it is prevented to be damaged or malfunctioned.
2. Read this user's guide which is attached to product, and check product's performance, specification,
operation pattern, signal, and how to handle prior to use. Keep user's guide please.
3. When wiring the terminal block, please tighten it with the 0.68~0.78N·m torque using the appropriate tool.
If it is outside of this range torque, it may cause malfunction due to breakage or looseness of tightening surface terminal.
4. When replacing a relay, check how to replace the relay on the back of the manual before using it.
Model Configuration
●
IO Coil Rate
Model
Point(s) voltage
Coil
R16W-NC-DC24VC NPN
16Point
24V DC
(1c * 16)
R16W-PC-DC24VC PNP
Rating/Specification
●
Rated current 10A
Between connector and terminal AC 4,000V 60㎐ / 1min
Dielectric
Between output terminal pitch AC 2,000V 60㎐ / 1min
strength
Between connectors AC 250V 60㎐ / 1min
Insulation resistance 1,000MΩ(500V)
Coil surge suppression device Diode 1A/400V
Cross connection protecting device Diode 1A/400V
Applicable wire 1.65㎟ / MAX
Terminal Screw M3.5 X 10L
7~8Kgf·㎝
Screw torque
(0.68~0.78N·m)
-10℃ ~ +50℃
Ambient temperature
(No condensation)
Applicable Relay
●
Division MODEL
Noncontact PhotoMOS Relay CM-Z202D
Noncontact Solid State Relay CM-G22124
AHN12024
Machinery Contact Relay
G2R-1-S DC24V
※ Relays must be ordered separately.
Common Interface
Dimensions
(W * Hmm)
Contact Coil Contact
Individual
Connector Screw
Com.
MIL-C- Terminal 236 * 77
(4P Short
83503 20Pin 13.5㎜ Pitch
bar built)
Material/Specification
●
Case Modified PPO
Protective cover Polycarbonate
P.C.B Coil Epoxy 1.6t
Pin header Contact C2680 t0.8 / C2100 t0.4
Input voltage Rated switching capacity
5~30V DC Below 2.7A 60V
19.2~28.8V DC 2.0A 75~264V AC
24V DC
10A 250V AC
10A 30V DC
24V DC
Mounting
method
DIN Rail
(Channel)
