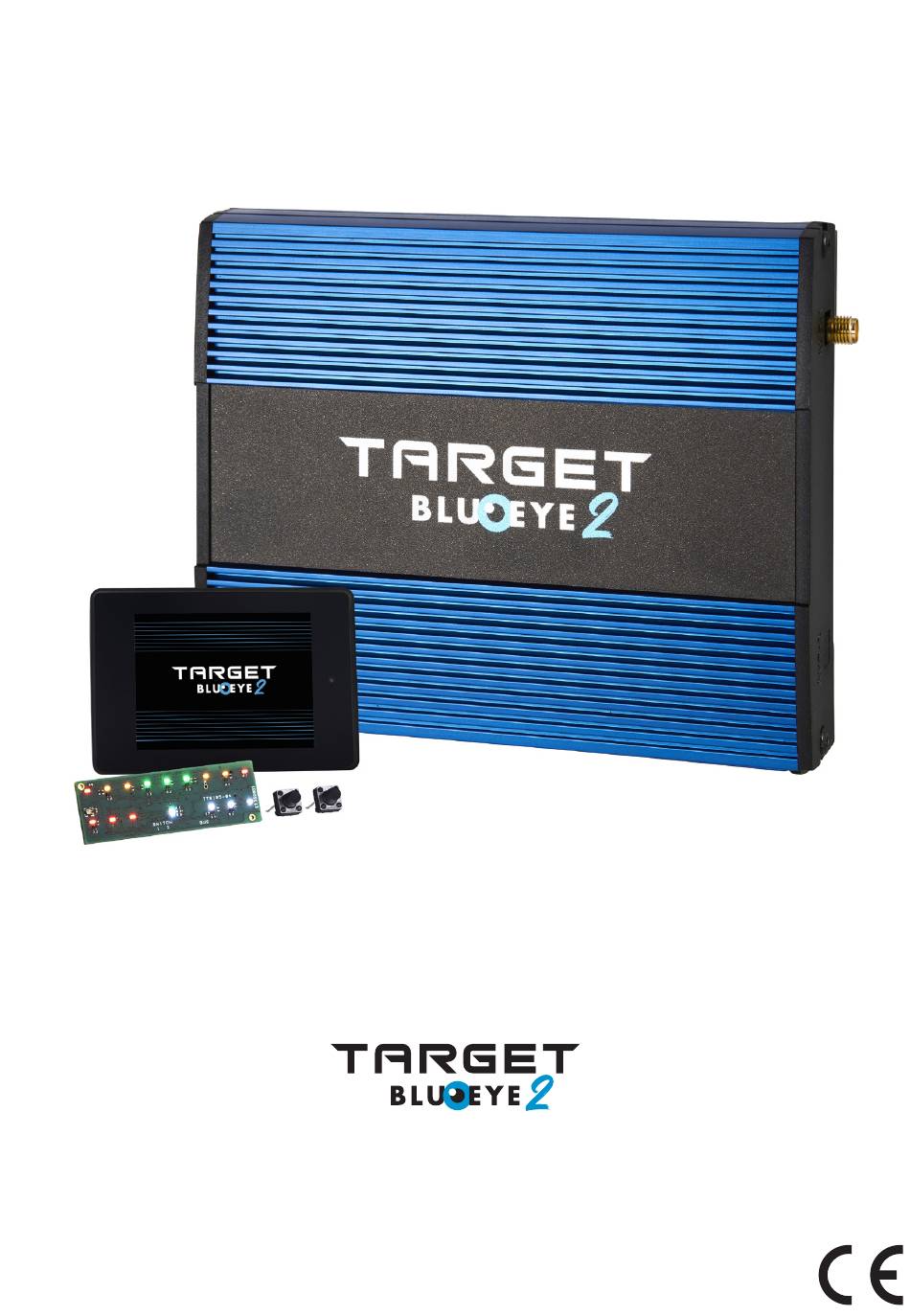

- Page 1 USER MANUAL TARGET BLU EYE 2 LCD DISPLAY + LASERTRACK Know what’s out there...
-
Page 2: Table Of Contents
CONTENT INTRODUCTION OF TARGET BLU EYE DETECTION DISPLAY / SIGNAL STRENGTH METER VISUAL AND ACOUSTIC ALERTS FOR APPROACHING EMERGENCY SERVICES MUTE CITY MODE VOLUME AUDIO MODE BRIGHTNESS INSTALLER MODE DIM-ON-RED ENABLE/DISABLE CHANNEL NUMBER DISPLAY DARK MODE LASERTRACK DISPLAY REMOTE CONTROL... - Page 3 INTRODUCTION Thank you for choosing Target Blu Eye 2. With Target Blu Eye, you will always be alerted well in advance of approaching emergency services, including ambulances, fire trucks, police, and unmarked surveillance vehicles, even when they are traveling at high speed without flashing lights or sirens.
-
Page 4: Detection Display/Signal Strength Meter
Data Messages Within One Second with each other or with the control room, Target Blu Eye recognizes this. You will be alerted by a double tone within one second. This also applies when data messages are sent from the emergency service vehicle. -
Page 5: Temporary Mute
MUTE This suppresses the acoustic alarm. TEMPORARY MUTE Tap the screen once briefly to activate TEMPORARY MUTE: a short sound signal will be heard, and a diagonal white line will appear through the speaker icon. The TEMPORARY MUTE status remains activated for 30 seconds after the last alert. Upon a new alert, you will automatically be alerted again by the acoustic signal. -
Page 6: City Mode
CITY MODE In CITY MODE, a threshold value for alerts is set. Signals up to and including this threshold value are displayed only visually. This setting is recommended in urban areas where there are many and strong emergency service signals. CITY MODE is set as follows: tap on the right side of the screen (red outlined in the image). - Page 7 Tap on CITY MODE: the CITY MODE setting appears. In the example, CITY MODE is set to a threshold value of two signal bars. Tap twice on the right side of the screen: the display returns to the detection view. The set threshold value is displayed.
-
Page 8: Volume
VOLUME Tap on the right side of the screen: the main settings screen appears. Tap on SETTINGS: The following screen appears. -
Page 9: Audio Mode
Tap on VOLUME: the volume can be set in 10 steps. AUDIO MODE You can choose from two different acoustic alarms: Standard Regardless of the signal strength, a warning signal is audible once every 4 seconds upon detection. Adaptive Depending on the signal strength, a single, double, or triple warning signal is audible. •... -
Page 10: Brightness
BRIGHTNESS The brightness can be set in 10 steps. Tap on the right side of the screen to return to the previous display. -
Page 11: Installer Mode
INSTALLER MODE With INSTALLER MODE, the optimal location for the Blu Eye antenna can be determined. All details about this can be found in the ‘Installation Manual’ under the ‘Downloads’” section on the Blu Eye website. -
Page 12: Dim-On-Red
DIM-ON-RED DIM-ON-RED automatically turns off the entire display at a very strong signal (red). When the LCD display is mounted in a location visible to other traffic, this function is intended to minimize distraction to vehicles approaching from behind. Tap briefly on the DIM-ON-RED icon to enable or disable this function. DIM-ON-RED disabled: DIM-ON-RED active: NOTE! -
Page 13: Enable/Disable Channel Number Display
ENABLE/DISABLE CHANNEL NUMBER DISPLAY When CHANNEL NUMBER DISPLAY is enabled, the channel number is displayed at the bottom of each channel. A letter appears before the channel number: L (low) indicates the low band, while H (high) indicates the high band. Tap briefly on the channel number display icon to enable or disable this function. -
Page 14: Dark Mode
DARK MODE When DARK MODE is selected, the LCD display turns off 15 seconds after the last alert. Once a new alert comes in, the display will automatically turn on. Tapping once on the screen will also turn the display on. DARK MODE disabled: DARK MODE active:... -
Page 15: Lasertrack Display
LASERTRACK REMOTE CONTROL As soon as a programmed electric door or gate comes within the range of LaserTrack, three short audio signals are emitted, and the blue laser icon changes to a gate icon. The door or gate will now open automatically. LASER PROTECTION When the laser protection function of LaserTrack is activated, the laser icon turns yellow. -
Page 16: Visual And Acoustic Signals During Laser Measurement
VISUAL AND ACOUSTIC SIGNALS DURING A LASER MEASUREMENT During a laser measurement at the front of the vehicle: • A yellow laser icon appears on the screen. • The background is white (headlights). • An alarm tone sounds. • The brand and type of laser gun are displayed. During a laser measurement at the rear of the vehicle: •... -
Page 17: Pause Lasertrack
The system enters Cooldown. • During Cooldown, laser protection is not active. • Cooldown is indicated by a fading red border around the laser icon. • Upon completion of the cooldown, a triple audio tone sounds, and the laser icon turns yellow. •... -
Page 18: Restore Factory Settings
RESET TO FACTORY SETTINGS This removes laser protection. Use this function when traveling to a country where laser protection is not allowed. Tap on REMOVE: The following screen appears. Tap on the red cross to cancel. Tap on the green checkmark to confirm. •... -
Page 19: Hardware And Software Information
INFORMATION ABOUT HARDWARE AND SOFTWARE Tap on INFORMATION: All data about hardware and software versions will be displayed. -
Page 20: Memory Function For Power On/Off
MEMORY FUNCTION FOR ON/OFF Tap on TURN OFF to disable the system. When the vehicle’s ignition is turned back on, the system remains disabled. You can re-enable the system by tapping once briefly on the screen. ERROR MESSAGES Blu Eye performs a self-diagnosis. If a malfunction occurs unexpectedly, a warning tone sounds, and the Blu Eye logo temporarily turns red. - Page 21 Zuidergracht 19 | 3763 LS Soest | the Netherlands info@tracktechnologies.nl | +31 (0)35 760 5760 www.tracktechnologies.nl www.blu-eye.eu...
