Marquee VENICE 0574346 Assembly Instructions Manual

3x3m gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
VENICE 3 x 3M GAZEBO
Item No.: 0574346

Advertisement

loading
Need help?

Need help?

Do you have a question about the VENICE 0574346 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marquee VENICE 0574346

Summary of Contents for Marquee VENICE 0574346

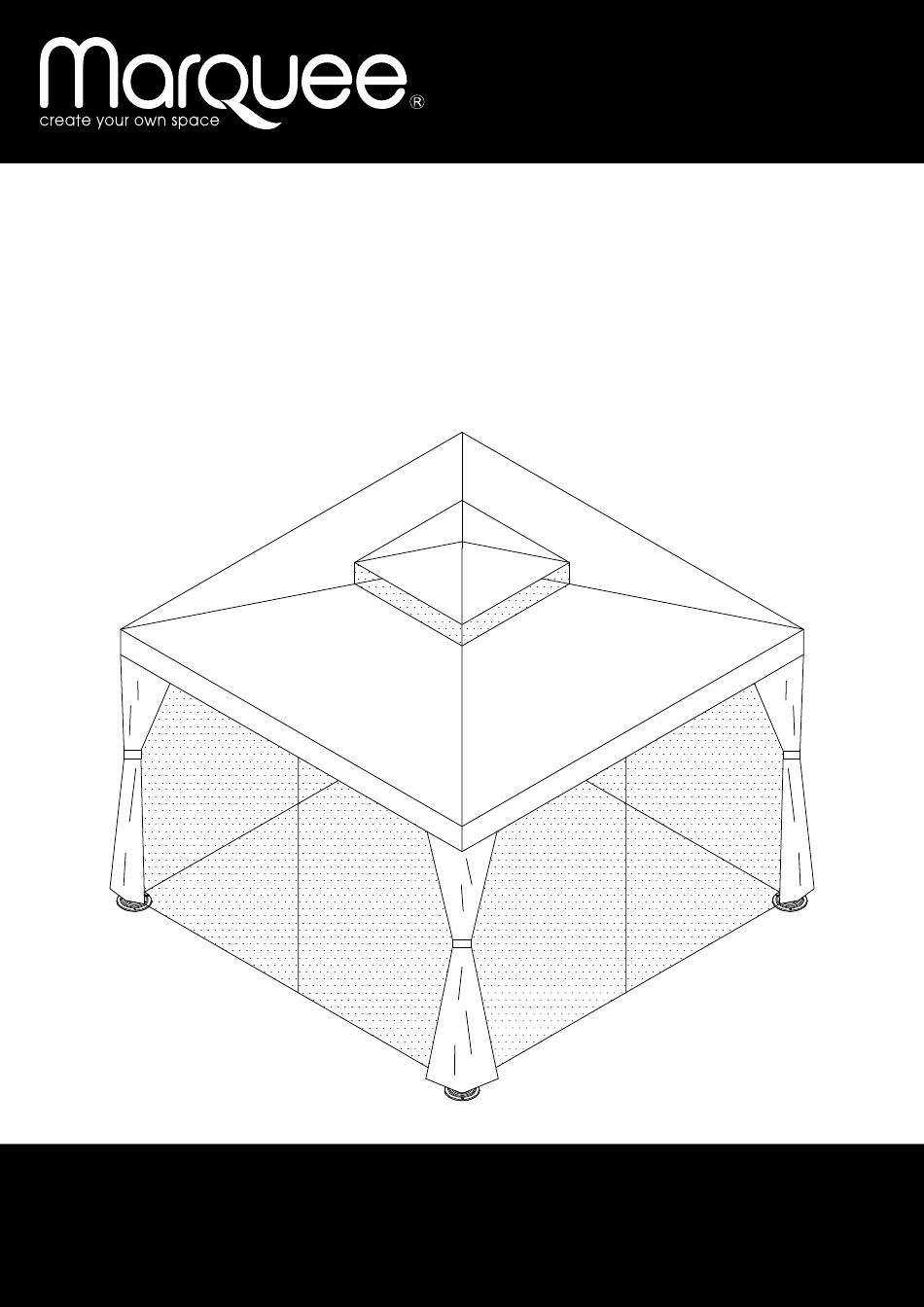

  • Page 1 Assembly Instructions VENICE 3 x 3M GAZEBO Item No.: 0574346...
  • Page 2 POST M6 x12 BOLT LEFT BEAM M6 x40 BOLT + WASHER RIGHT BEAM M6 x25 BOLT + NUT + CAP CORNER RIB GROUND STAKE MID RIB SHORT BAR TOP RIB BEAM CONNECTOR CORNER CONNECTOR HOOK FOOT PLATE MOSQUITO NET LONG BAR SIDE CURTAIN STRENGTHEN BAR TOP COVER...

  • Page 3: Diagram

    DIAGRAM 1.The gazebo is shipped in one carton, which is very heavy and requires lifting by two persons. 2. Carefully take all the parts out from the carton. The parts are identified by removable stickers. Please place the parts for each step on a flat protected nonabrasive staging area.

  • Page 4: Table Of Contents

    List of Parts......................Diagram......................Table of Contents....................STEP 1 Assemble the Posts and Foot plates......(ca.10min)..STEP 2 Connect Posts and Beams with Corner connector..(ca.15min)..STEP 3 Strengthen four corner structures.......(ca.20min)..STEP 4 Connect two corner structures........(ca. 5min)..STEP 5 Connect four corner structures........(ca.10min)..STEP 6 Assemble the corner ribs..........(ca.

  • Page 5: Step 1

    STEP 1 Assemble the Posts and Foot plates Find all components in this step and place them on a level ground. Place the POSTS (A) parallel to each other on level ground. Slide FOOT PLATE (H) into POST (A) from the end. Fasten each plate to the leg post using 3 bolts (L).
  • Page 6 STEP 2 Connect Posts and Beams with Corner connector Find all components in this step and place them on a level ground. 2-A Screw 2 bolts+washers (M) to combine BEAM (B) to POST (A), and 2 bolts+washers (M) to combine BEAM (C) to POST (A). POST CORNER CONNECTOR 2-B Install CORNER CONNECTOR (G) to...

  • Page 7: Step 3

    STEP 3 Strengthen four corner structures Find one corner structure and place the beam on a level ground. 3-A Install the SHORT BAR (P) to the beams and post with 6 bolts (L). 3-B Connect the beams and the post with two STRENGTHEN BARS (J) by 4 bolts (L).

  • Page 8: Step 4

    STEP 4 Connect two corner structures Find two corner structures and place the beams on a level ground. Use BEAM CONNECTOR (Q) to combine BEAM (B) and BEAM (C), by screw 8 bolts (L), making half of the lower frame. Repeat this step on the other half frame.

  • Page 9: Step 5

    STEP 5 Connect four corner structures Assemble two BEAM CONNECTORS (Q) on two beams of one half of lower frame. by screw 4 bolts (L) on each beam. Raise two halves of lower frame, insert BEAM CONNECTORS (Q) to the opposite beams, screw 8 bolts on the beams.

  • Page 10: Step 6 Assemble The Corner Ribs

    STEP 6 Assemble the corner ribs Before this step you had better place the gazebo frame in its desired location. Make sure all corners are squared at 90 degrees. Find all components in this step and place them on a level ground. Connect the CONNER RIB (D) and the TOP RIB (F) with two bolts (N), tighten the nuts and cover with nut caps.

  • Page 11: Step 7 Put Up The Corner Ribs

    STEP 7 Put up the corner ribs 7-A Insert 4 CORNER RIB (D) into the longer leg of the TOP CONNECTOR (K). 7-B Insert the CORNER RIB (D) into the CORNER CONNECTOR (G). Repeat this step on 4 corner ribs. 7-C Anchor the FOOT PLATE (H) into ground by 12 STAKES (O).

  • Page 12: Step 8 Put Up The Mid Ribs

    STEP 8 Put up the mid ribs Insert the MID RIB (E) into the shorter leg of the TOP CONNECTOR (K). Attach the MID RIB (E) to the BEAM (B) by screwing a bolt (L). Repeat this step on 4 mid ribs. MID RIB M6 x12 BOLT...

  • Page 13: Step 9 Put On The Mosquito Nets

    STEP 9 Put on the mosquito nets Assemble the HOOK (R) on MOSQUITO NETS (S). Put up 6 hooks into the inner rail on each beam, until all nets are assembled. HOOK Zipper Zipper MOSQUITO NET...

  • Page 14: Step 10 Put On The Side Curtains

    STEP 10 Put on the side curtains Assemble the HOOK (R) on SIDE CURTAINS (T). Put up 5 hooks into the outer rail on each beam, until all side curtains are assembled. HOOK SIDE CURTAIN...

  • Page 15: Step 11 Put On The Canopies

    STEP 11 Put on the canopies <3> <1> <2> <4> Press 8 spring clip buttons on the ribs and slide the ribs into the top connector (K). This can make mounting the canopies much easier. Fasten 4 belts on COVER (V) onto TOP COVER (U).
