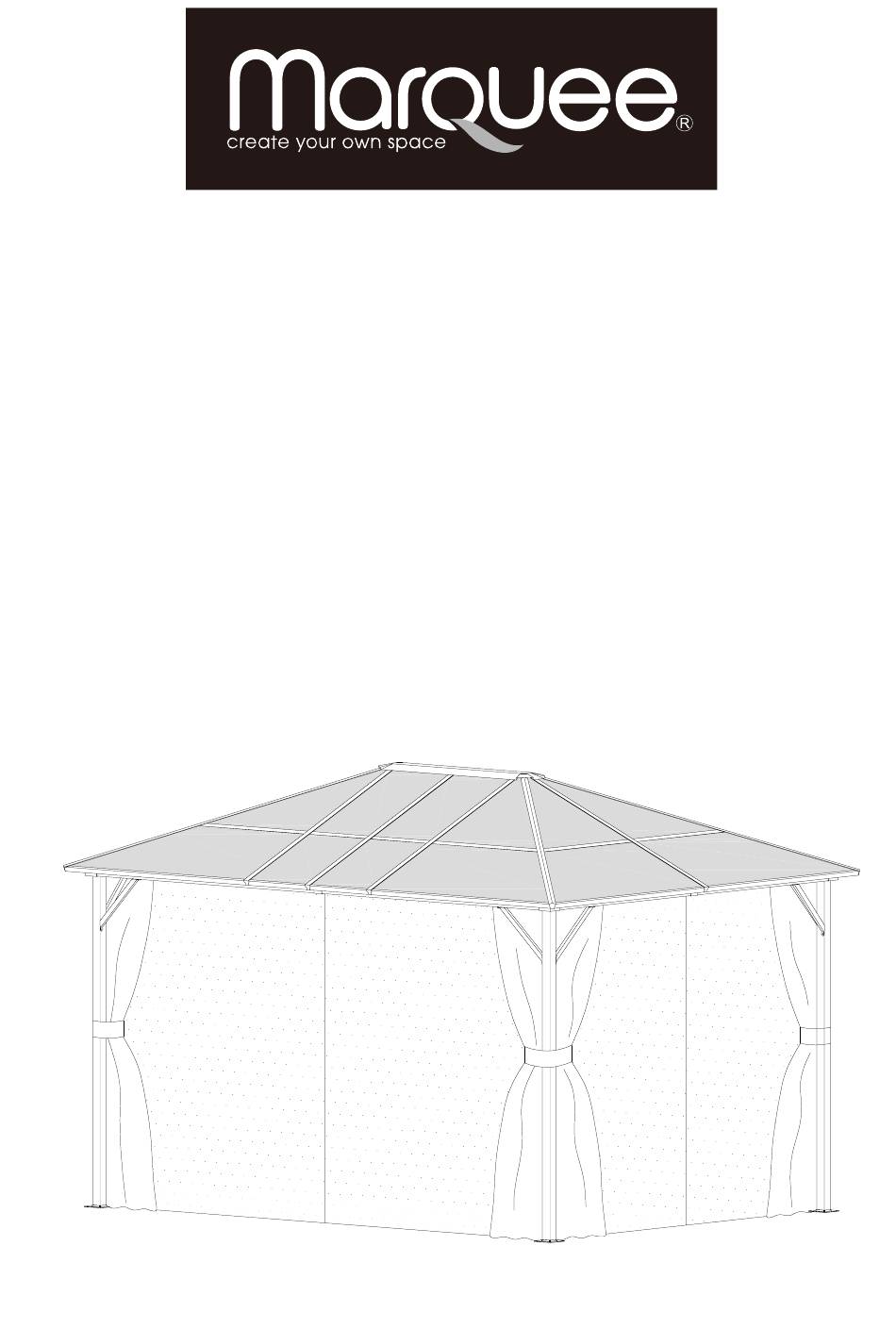

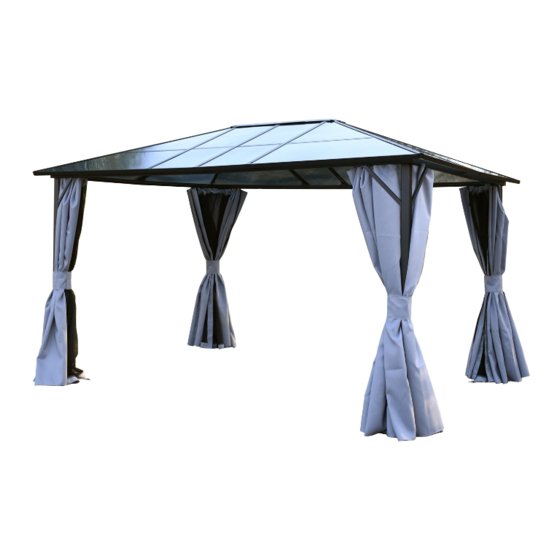

- Page 1 HAVANA GAZEBO 4 x 3 M WITH POLYCARBONATE ROOF Assembly Instructions Item number: 0182364...
-
Page 2: List Of Parts
List of Parts Parts Qty Step Parts Qty Step right LEG POST ROOF JOINT long, right middle BEAM EDGE PROTECTOR long, left left BEAM EDGE PROTECTOR short, right right BEAM EDGE PROTECTOR short, left BEAM STRENGTHEN BAR .. - Page 3 List of Parts Parts Qty Step Parts Qty Step left, upper BEAM CONNECTOR ROOF PANEL left, lower CORNER RIB CAP ROOF PANEL . . . middle, upper ROOF PANEL MID RIB CAP middle, lower ROOF PANEL M6 x 16 right, upper M6 x 16 ROOF PANEL right, lower...
-
Page 4: Table Of Contents
STEP 14 Put up Fabric side panels and Mosquito nets..(ca. 10min)..STEP 15 Secure the Gazebo to the ground.......(ca. 5min)... Thank you for choosing the Havana Gazebo! All steps can be completed by 4 people. The assembly take about two and a half hours. -
Page 5: Step 1 Assemble The Leg Posts
STEP 1 Assemble the Leg posts Place the posts parallel to each other on level ground. No. Components in this step Qty Slide FOOT PLATE (N) into LEG POST (A) from the end. Fasten each plate to the leg post using 4 bolts (U). LEG POST FOOT PLATE Do not tighten bolts immediately, install loose. -
Page 6: Step 2 Assemble The Beams
STEP 2 Assemble the Beams Find all components in this step and place them on a level ground. 2-A Screw two bolts (J) to assemble the MID RIB CONNECTOR (J) onto the long BEAM (B1) and (B2). 2-B Use BEAM CONNECTOR (Q) to combine the long BEAM (B1) and (B2), then secure tightly with 6 bolts (U) only. -
Page 7: Step 3 Attach The Rails To The Beams
STEP 3 Attach the Rails to the Beams No. Components in this step Qty Find all components in this step and place them on a level ground as shown. short 3-A Secure the short CURTAIN RAIL (F) and the MID RIB CURTAIN RAIL CONNECTOR (J) to the short BEAM (C1 &... -
Page 8: Step 4 Attach Short Beams To The Leg Posts
STEP 4 Attach short Beams to the Leg posts Find all parts in this figure and place them on a level ground. No. Components in this step Qty 4-A Combine the short BEAM (C1 & C2) and LEG POST (A) with 3 bolt (T). -
Page 9: Step 5 Attach Long Beams To The Leg Posts
STEP 5 Attach long Beams to the Leg posts Find all components and long BEAM (B1 & B2) in this step. 5-A Raise up two door frames of STEP 4 oppositely with rails inside. 5-B Combine the long BEAM (B1 & B2) and LEG POST (A) with 3 bolt (T). Use ALLEN WRENCH (8) to tight the bolts. -
Page 10: Step 6 Install The Beam Covers
STEP 6 Install the Beam covers Find all components in this step. 6-A Assemble the CONNER BEAM COVER (L) onto the corner of beams with 4 tapping screws (W). 6-B Assemble the MID BEAM COVER (M) onto the middle of beams with 4 tapping screws (W). Repeat the step until 8 beam covers are assembled. -
Page 11: Step 7 Assemble Four Corner Ribs
STEP 7 Assemble four Corner ribs Find the longest CORNER RIB (D) and CORNER RIB CONNECTOR (K), place them parallel to each other on a level ground. Assemble CORNER RIB CONNECTOR (K) on the CORNER RIB (D) with a bolt (U). Repeat the step until 4 corner rib connectors are assembled. -
Page 12: Step 8 Put Up Lower Top Plate And Corner Ribs
STEP 8 Put up Lower top plate and Corner ribs 8-A Assemble four CORNER RIB (D) onto the LOWER TOP PLATE (O) with 8 bolt(U). Now the upper structure looks like ">-<" from top view. 8-B Move this upper structure up to the lower frame. 8-C Secure each CORNER RIB CONNECTOR (K) onto the LEG POST (A) with 2 bolts (U). -
Page 13: Step 9 Install The Mid Ribs
STEP 9 Install the Mid ribs 9-A Install one end of MID RIB (E) onto the LOWER TOP PLATE (O) with a bolt (U). Use the hole of MID RIB (E) closest to the outside. 9-B Attach the other end of MID RIB (E) to the MID RIB CONNECTOR (J) on the beams, by screwing a bolt (U). -
Page 14: Step 10 Install The Upper Top Plate
STEP 10 Install the Upper top plate Lift up the UPPER TOP PLATE (P) onto the LOWER TOP PLATE (O). Secure it with 3 bolts (U) bottom up through the lower plate. No. Components in this step Qty UPPER TOP PLATE The upper top plate is heavy, use support as needed. -
Page 15: Step 11 Assemble The Large Roof Panels
STEP 11 Assemble the large Roof panels Expose this side to sunlight Exposez ce côté au soleil Keep these words side facing up No. Components in this step Qty middle ROOF JOINT left ROOF JOINT right ROOF JOINT left, upper ROOF PANEL left, lower ROOF PANEL... -
Page 16: Step 12 Put Up The Roof Panels
STEP 12 Put up the Roof panels Slide the large Roof panels into the groove of MID RIB (E) and CORNER RIB (D) as shown successively. Use a rubber hammer to carefully tap each panel into the grooves. 6 4 4 2 Place the words side of the 5 3 3 1 polycarbonate roof panels... -
Page 17: Step 13 Install Edge Protectors And Rib Caps
STEP 13 Install Edge protectors and Rib caps 13-A Insert the EDGE PROTECTOR (H1),(H),(H2) to ROOF PANEL (2),(4),(6) separately. 13-B Secure the CORNER RIB CAP (R) to CORNER RIB (D) with a bolt (U). 13-C Secure the MID RIB CAP (S) to CORNER RIB (E) with a bolt (U). Repeat this step until all No. -
Page 18: Step 14 Put Up Fabric Side Panels And Mosquito Nets
STEP 14 Put up Fabric side panels and Mosquito nets 14-A Assemble the plastic HOOK (X) on FABRIC No. Components in this step Qty SIDE PANELS (Z) and MOSQUITO NETS (Y). 14-B Put up the hooks into the curtain rails. 14-C Fix the tapping screw (V) onto curtain rails. -
Page 19: Step 15 Secure The Gazebo To The Ground
STEP 15 Secure the Gazebo to the ground Fix the FOOT PLATE (N) into the ground by 16 STAKES (7). Please ensure that you use anchors sufficient for your surface. Good work! Your gazebo is ready for use! Although stakes are supplied to suit soft ground, you can also secure the gazebo to a concrete floor or a wood deck.
