SureCall SC-CBAND-METER User Manual

Three-Year Warranty
Register at surecall.com/activate.
SureCall warrants its products for three years from the date of purchase against defects in workmanship and/or materials. Specifications are subject
to change.
Products returned by customers must be in their original, un-modified condition, shipped in the original or protective packaging with proof-of-
purchase documentation enclosed, and a Return Merchandise Authorization (RMA) number printed clearly on the outside of the shipping container.
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received
by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit,
all parts originally included in the kit packaging must also be returned.
This warranty does not apply to any product determined by SureCall to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages the product' s physical or electronic properties.
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in
full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall' s option, to repair or replace any product or part
thereof which was purchased up to THREE YEARS after May 1, 2014 or TWO YEARS for products purchased before May 1, 2014, as determined by
examination by SureCall, prove defective in material and/or workmanship. Warranty returns must first be authorized in writing by SureCall. Disas-
sembly of any SureCall product by anyone other than an authorized representative of SureCall voids this warranty in its entirety. SureCall reserves
the right to make changes in any of its products without incurring any obligation to make the same changes on previously delivered products.
As a condition to the warranties provided for herein, the Buyer will prepay the shipping charges for all products returned to SureCall for repair, and
SureCall will pay the return shipping with the exception of products returned from outside the United States, in which case the Buyer will pay the
shipping charges.
The Buyer will pay the cost of inspecting and testing any goods returned under the warranty or otherwise, which are found to meet the applicable
specifications or which are not defective or not covered by this warranty.
Products sold by SureCall shall not be considered defective or non-conforming to the Buyer' s order if they satisfactorily fulfill the performance
requirements that were published in the product specification literature, or in accordance with samples provided by SureCall. This warranty shall not
apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. SureCall makes no warranty
whatsoever in respect to accessories or parts not supplied by it.
Limitations of Warranty, Damages and Liability
EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS AS TO MERCHANTABI-
LITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHER WARRANTIES, CONDITIONS, GUARANTEES, OR REPRESENTATIONS, WHETHER EXPRESSED OR
IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING.
SURECALL AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE, INC. FOR THE
UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT
SHALL SURECALL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED.
All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California, and any controversy that cannot be
settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association,
and judgment upon the award rendered may be entered in any court having jurisdiction thereof. If one or more provisions provided herein are
held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or
unenforceability without affecting in any way the
remaining provisions hereof.
Safety Information
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the Federal Trade Commission
(FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and radiates frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
SureCall

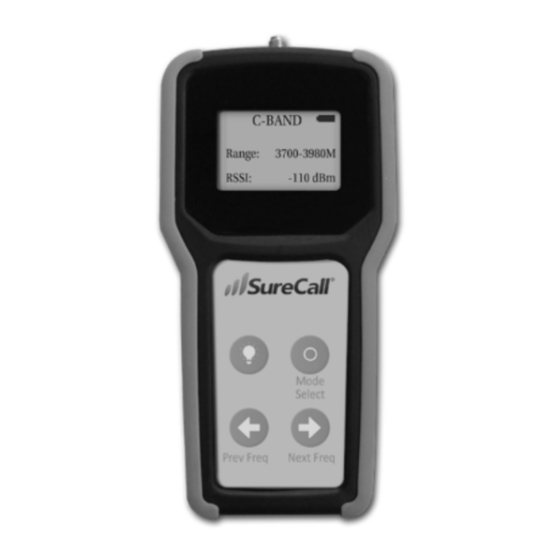

C-BAND SIGNAL METER
SC-CBAND-METER
User Manual
PACKAGE CONTENTS
• C-Band Signal Meter
• Flat right-angle antenna with SMA-Male connector
• 24" SMA-Male to N-Male cable connector
• N-Female to F-Male connector
• N-Female to F-Female connector
• N-Female to 4.3-10 Male connector
• N-Female to 4.3-10 Female connector
• 9" SMA-Male to N-Female cable connector
• 110V AC power adapter
• (4) AAA NiMH rechargeable batteries
The C-Band Signal Meter by SureCall is an essential site survey and installation aid used to
measure signal information of C-Band frequencies in the 3700-3980 MHz range. The C-Band
Signal Meter is specifically designed to assist in the installation of a C-Band Signal Booster.
• Using the whip antenna, the meter can reliably read open air C-Band signal levels to
survey the outside frequency environment, approximate the location for a donor antenna
and map indoor signal levels to maximize signal booster coverage.
• Additionally, the meter connects directly to your donor antenna during installation to
pinpoint the optimum placement and angle for best booster performance.
SureCall, Inc | 48346 Milmont Drive Fremont, California 94538, USA
888.365.6283 | support@surecall.com | www.surecall.com
