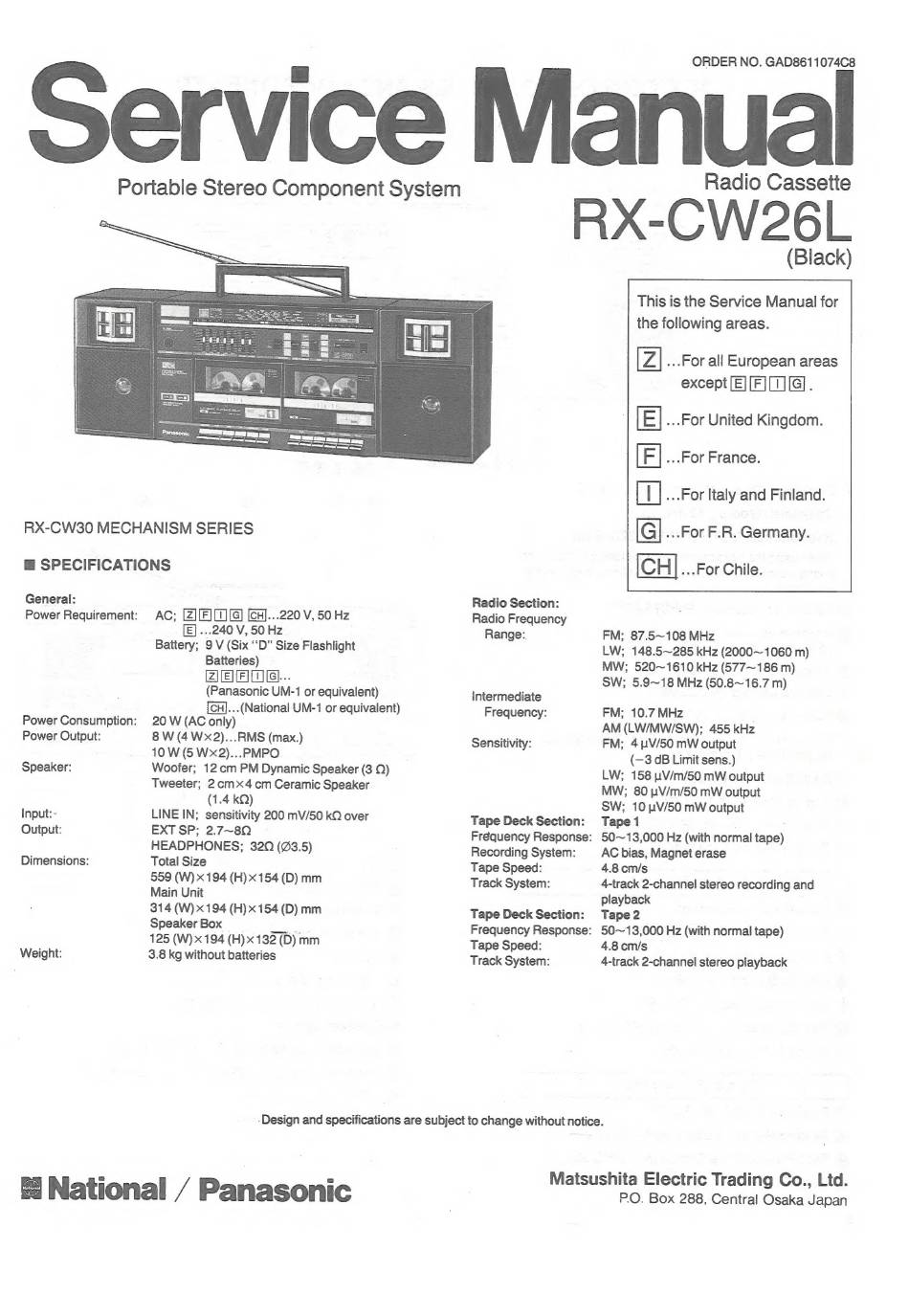

Panasonic RX-CW26L Service Manual

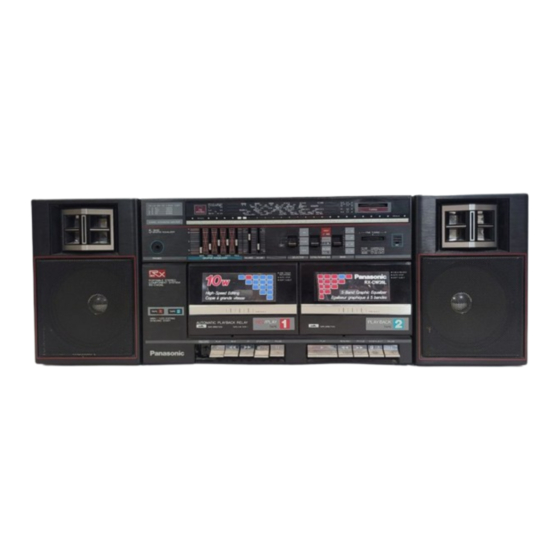

Portable Stereo Component System
oo ory
RX-CW30 MECHANISM SERIES
@ SPECIFICATIONS
General:
Power Requirement:
Power Consumption:
Power Output:
Speaker:
Input: -
Output:
Dimensions:
Weight:
AC; [Z](FIL[] [cx]...220 v, 50 Hz
[E] ...240 V, 50 Hz
Battery; 9 V (Six '"'D" Size Flashlight
Batteries)
ZEIGE...
(Panasonic UM-1 or equivalent)
[CH]...(National UM-1 or equivalent)
20 W (AC only)
8 W (4Wx2)...RMS (max.)
10 W (5 Wx2)...PMPO
Woofer; 12cm PM Dynamic Speaker (3 Q)
Tweeter; 2cmx4cm Ceramic Speaker
(1.4 kQ)
LINE IN; sensitivity 200 mV/50 kQ over
EXT SP; 2.7~80
HEADPHONES; 32Q (@3.5)
Total Size
559 (W) x 194 (H) x 154 (D) mm
Main Unit
314 (W) x 194 (H)x 154 (D) mm
Speaker Box a
125 (W)x 194 (H)x 132 (D) mm
3.8 kg without batteries
ORDER NO. GAD8611074C8
nual
Radio Cassette
RX-CW26L
Radio Section:
Radio Frequency
Range:
Intermediate
Frequency:
Sensitivity:
Tape Deck Section:
Fréquency Response:
Recording System:
Tape Speed:
Track System:
Tape Deck Section:
Frequency Response:
Tape Speed:
Track System:
(Black)
This is the Service Manual for
the following areas.
For all European areas
except LI [G] .
For United Kingdom.
Ly
Gi ..For F.R. Germany.
...For Chile.
For Italy and Finland.
[E]...
...For France.
[G].
FM; 87.5~108 MHz
LW; 148.5~285 kHz (2000~1060 m)
MW; 520~1610 kHz (577~186 m)
SW; 5.9~18 MHz (50.8~16.7 m)
FM; 10.7 MHz
AM (LW/MW/SW); 455 kHz
FM; 4uV/50 mW output
(—3 dB Limit sens.)
LW; 158 uV/m/50 mW output
MW; 80 pV/m/50 mW output
SW; 10 uV/50 mW output
Tape 1
50~13,000 Hz (with normal tape)
AC bias, Magnet erase
4.8 cm/s
4-track 2-channel stereo recording and
playback
Tape 2
50~13,000 Hz (with normal tape)
4.8 cm/s
4-track 2-channel stereo playback
-Design and specifications are subject to change without notice.
