Corkill Systems Reporoa Engineering 2807D Instruction Manual page 18

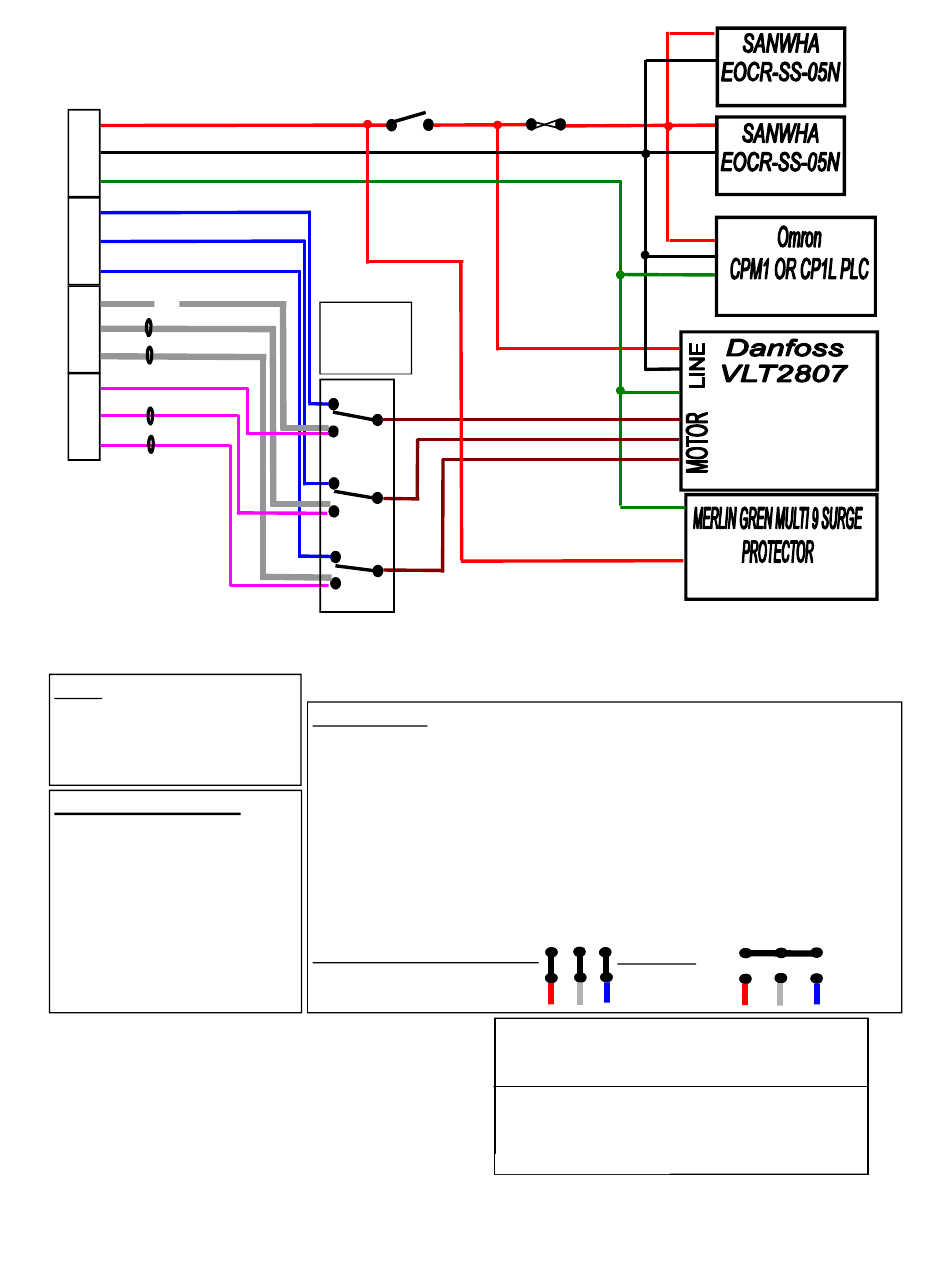

THE REPOROA HIGH LIFT GATE CONTROLLER ELECTRONIC SYSTEM
P
N
E
G
L
M
L
CT
D
CT
M
R
CT
D
CT
M
NOTE:
This diagram relates only to the 230V
high voltage connections of the
control system, low voltage inputs and
outputs are on the LV Diagram.
CONNECTIONS KEY
P = Phase/Live
N = Neutral
E = Earth (from Earth bar)
GLM = Gate Lift Motor (Blue wires)
LDM = Left Drive Motor (Yellow wires)
RDM = Right Drive Motor (Orange
wires)
This manual subject to copyright and not to be copied without the express permission of Corkill Systems Limited
CSLRHLG-MANUAL-2014.DOC
Model 2807D – 2014
K&N
A290 SWITCH
T#1 & T#2
FINDER
56.34
24VDC
(Omron LY4
equivalent)
CONNECTIONS
1. Provide a 2.5mm Single Phase supply to the Junction Box position.
2. Fuse this supply to 16 Amps using either Motor Rated HRC fuses or a Circuit-breaker.
3. Connect supply to Red, Black and Green DIN connectors in the junction box provided.
4. MULTICORE CABLE:
(a) Connect wire #1 between the J/Box Phase (Red) connector and P#1 in the Control Box
(b) Connect wire #2 between the J/Box Neutral (Black) connector and N#2 in the Control Box
(c) Connect wire #3 between the J/Box Earth (Green) connector and the Earth stud in the Control Box
5. MOTORS:
Wire all motors using the CBS cable provided connecting both the Earth conductor and the screen to the Earth bar,
and the motor Earth terminal. Connect motor phases to the corresponding terminals according to the KEY on this
diagram (eg LGM, LDM, and RDM).
DELTA
ALL MOTORS TO BE WIRED IN
NOTE MOTOR BRIDGE POSITIONS
Copyright June 2001 – Steve Corkill
Page 18
1 Amp
Fuse
NOT STAR
eg eg
CORKILL SYSTEMS LTD
5 Tasman St, PO Box 16
OPUNAKE, TARANAKI. NEW ZE ALAND
Ph (06) 761 7531 Fax (06) 761 7336
REPOROA HIGH LIFT GATE CONTROL
230Volts CIRCUIT DIAGRAM
2012 Model
CSLRH LG-WIRE- 230V- 2012.PUB
22/02/2012
24/07/2014
