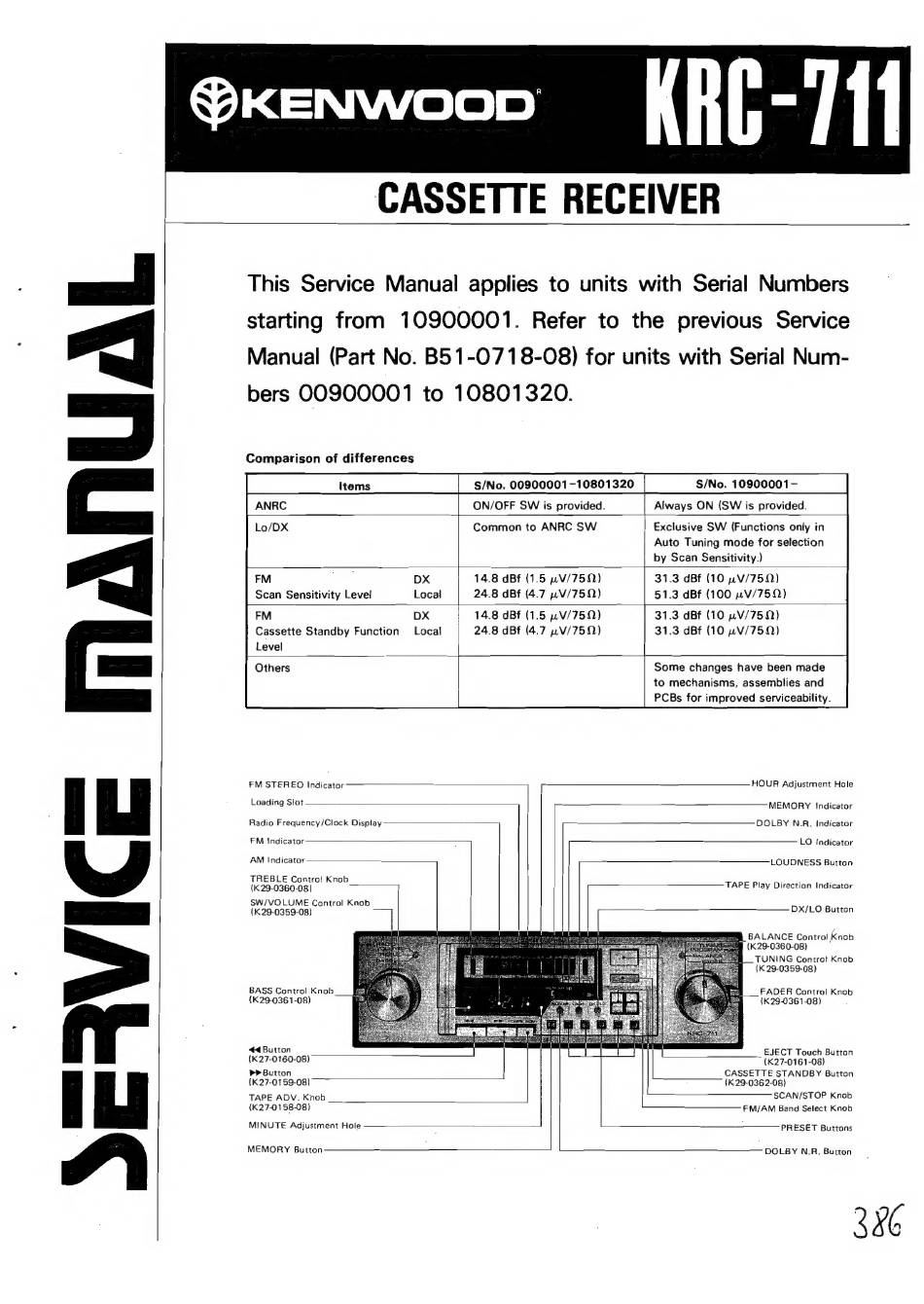

Kenwood KRC-711 Service Manual

kenwoon KHC-711
CASSETTE RECEIVER
This Service Manual applies to units with Serial Numbers
starting from 10900001. Refer to the previous Service
Manual (Part No. B51-0718-08) for units with Serial Num-
bers 00900001 to 10801320.
Comparison of differences
S/No. 00900001 -10801320 S/No. 10900001 -
ON/OFF SW is provided. Always ON (SW is provided.
Common to ANRC SW Exclusive SW (Functions only in
Auto Tuning mode for selection
by Scan Sensitivity.)
FM os DX 14.8 dBF (1.5 2V/75Q) 31.3 dBF (10 2V/750)
Scan Sensitivity Level Local 24.8 dBf (4.7 4V/750) 51.3 dBf (100 #V/750)
FM DX 14.8 dBF (1.5 2V/750) 31.3 dBf (10 nV/750)
Cassette Standby Function Local 24.8 dBF (4.7 pV/750) 31.3 dBf (10 nV/75Q)
Level
Others Some changes have been made
to mechanisms, assemblies and
PCBs for improved serviceability.
FM STEREO Indicator HOUR Adjustment Hole
Radio Frequency/Clock Display
LO Indicator
FM Indicator
AM Indicator LOUDNESS Button
TREBLE Contro! Knob
(K29-0360-08)
SW/VOLUME Control Knob
(K29-0359-08)
TAPE Play Direction Indicator
DX/LO Button
BALANCE Control Knob
(K29-0360-08)
TUNING Controt Knob
(K29-0359-08)
FADER Control Knob
BASS Control Knob
(K29-0361-08)
{K29-0361-08)
4 Button _ EJECT Touch Button
(K27-0160-08) (K27-0161-08)
>> Button CASSETTE STANDBY Button
(K27-0159-08) (K 29-036 2-08)
TAPE ADV. Knob SCAN/STOP Knob
(K27-0158-08) FM/AM Band Select Knob
PRESET Buttons
MINUTE Adjustment Hole
DOLBY N.R. Button
386
MEMORY Button
SERVICE MANUAL
