Summary of Contents for Victorian Plumbing AREZZO AZTH11MB

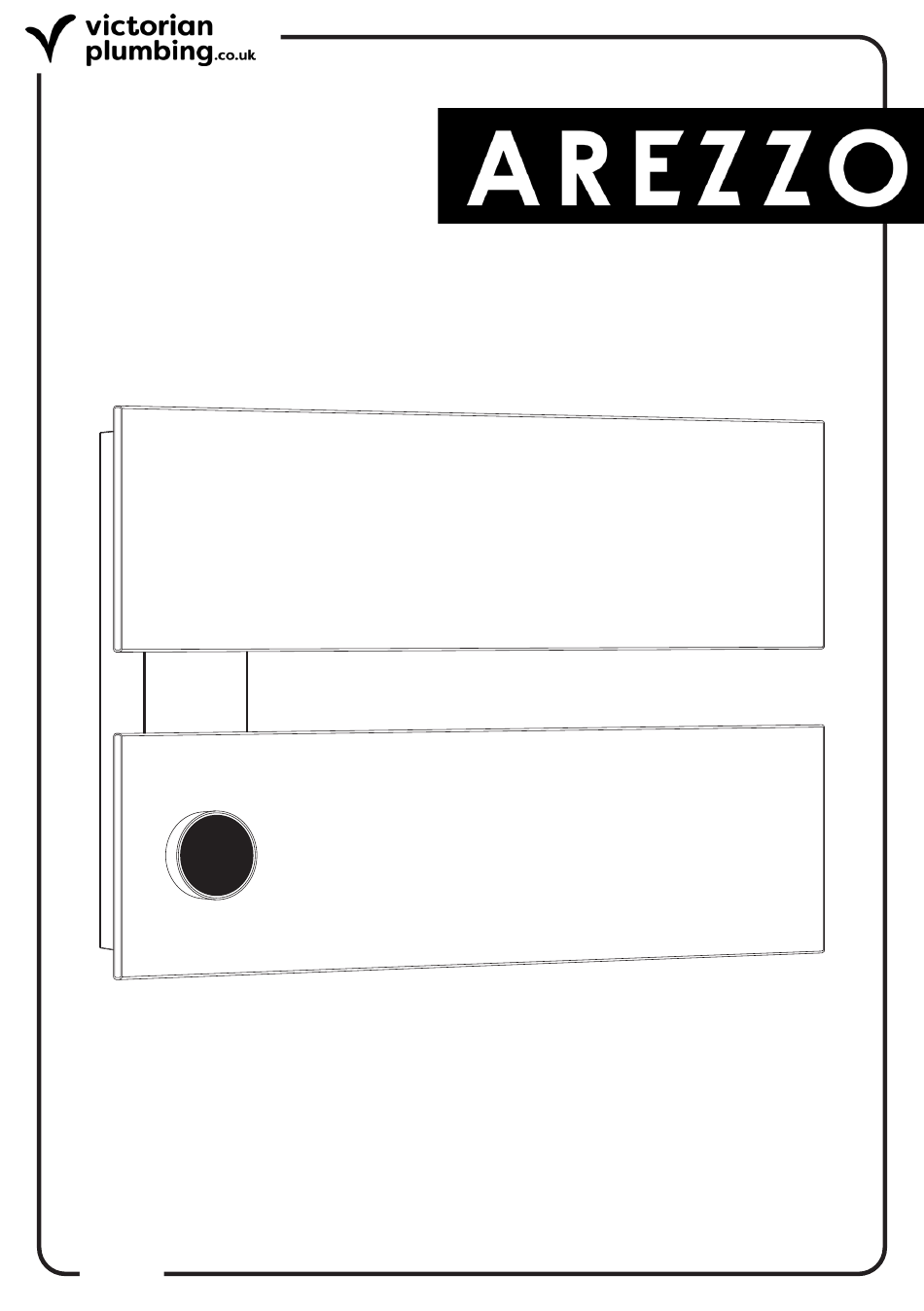

- Page 1 Electric Double Bar Towel Heater Fitting Instructions Please follow them carefully and leave this manual with end user V2.07.24...
- Page 2 Important Information Before installation, please read this guide carefully. We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed or any damage to the floor, walls, plumbing, towel heater, or personal injury during installation. Check the chosen wall space for any pipes/cables prior to drilling Observe all local building codes &...
-
Page 3: Technical Information
Technical Information: Electric Supply 220V Heating Output Available 140W Device Protection Class IPX4 Temperature Adjustment Range 5°C/25°C/40°C/50°C/60°C These products are in compliance with 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Low Certification Voltage Directive These products carry CE mark accordingly. Fitting List: A. - Page 4 Towel Heater Installation: Diagrams are for illustration purposes only. Your Towel Heater may superficially differ from this drawing however the installation guide steps still apply. Step 1: • Set the ‘Towel Heater’ (A) at the desired height, then make a mark across the top and bottom of the wall.
- Page 5 Step 3: • Mount the ‘Towel Heater’ (A) onto the ‘Fixing Plate’ (B) and feed the ‘Power Cable’ (G) through the pre-drilled cable hole in the wall. Secure the ‘Towel Heater’ into place by using the ‘Grub Screws’ (C) provided and tighten with an ‘Alan Key’ (D). Ensure the ‘Towel Heater’...
- Page 6 Instructions For Use: Select the corresponding mode by rotating the outer frame of the dial of the heater. You can control the towel radiator remotely by connecting it to your mobile phone or tablet through the app. Rotate mode selection Short-press conformation Operating Procedure: •...
- Page 7 Set Time: • Rotate the handle on the device to the “Timing” mode. Short press once to enter the setting. • Set time operation is only performed at 50°C daily drying mode by default. Rotate the handle to set the time to a maximum of 24hrs. Short press once to start the timer countdown.
-
Page 8: App Download
App Download: Please follow the steps to download the app for remote use. • Scan the QR code on the right, open the link and click “DOWNLOAD” on the website. • For IOS go to the app store to download. •... -
Page 9: Device Connection
Device connection: Step 1: • To connect the network for the first time, click twice on the Wi-Fi interface and then turn on Wi- Fi to connect to your chosen hot spot. Note: It is not necessary to double click the Wi-Fi on the device to add the second phone network connection. -
Page 10: Screensaver Setting
Step 5: • Select or enter the Wi-Fi hotspot name. • Enter the hot spot password. • Click “Sure”, the device will begin connecting to the Wi-Fi. Finish: The device is ready to use. Screensaver setting: • Open the app, go into settings “Settings-Background Settings”, you can then choose different background wallpapers. -
Page 11: Product Disposal
Product Disposal: This product should not be disposed as general waste, but should be brought to the appropriate collection point for recycling of electric and electronic devices. Information on the appropriate point for used devices can be provided by your local authority, product distributor or from where the product was purchased. - Page 12 www.victorianplumbing.co.uk V2.07.24...
