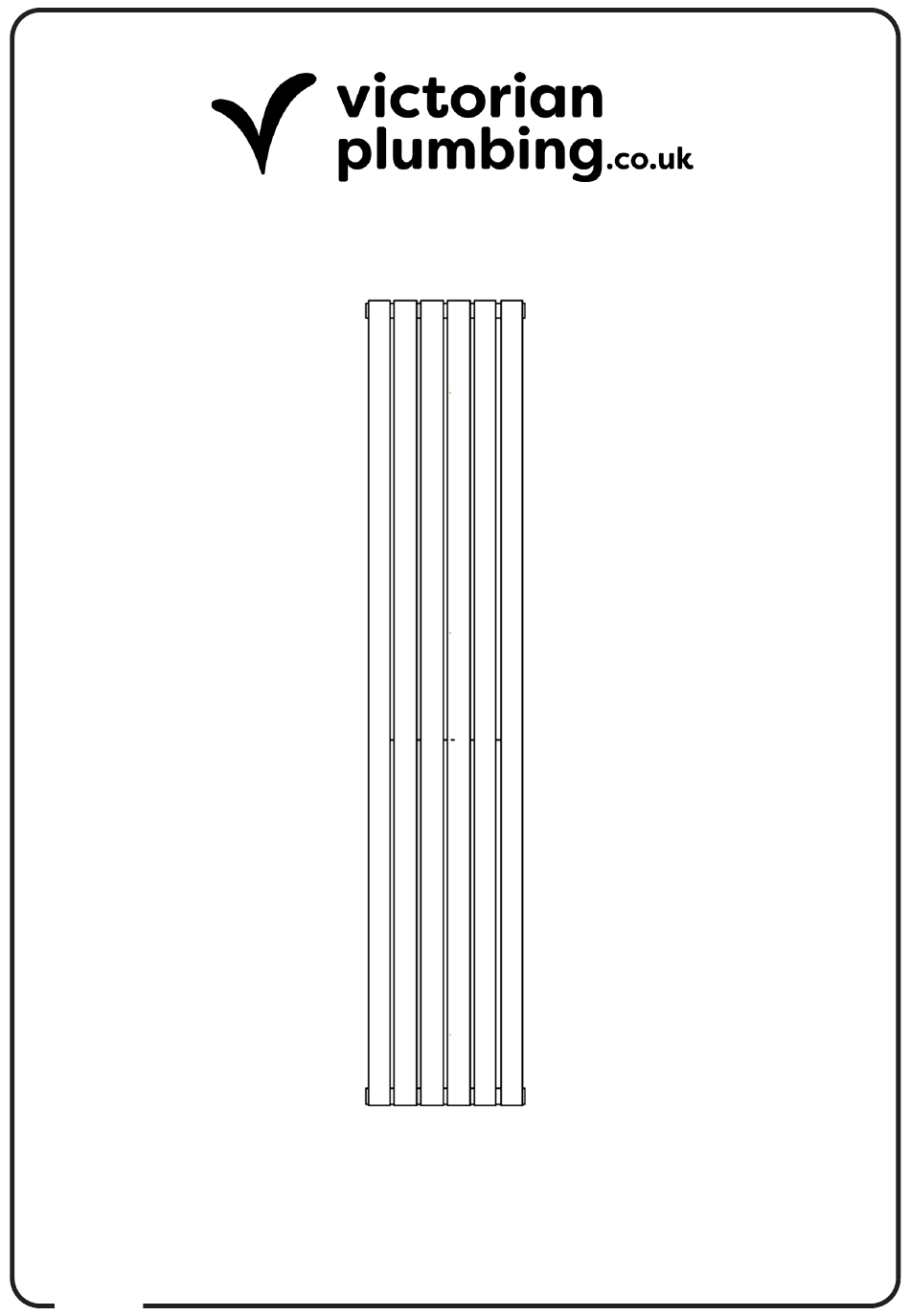

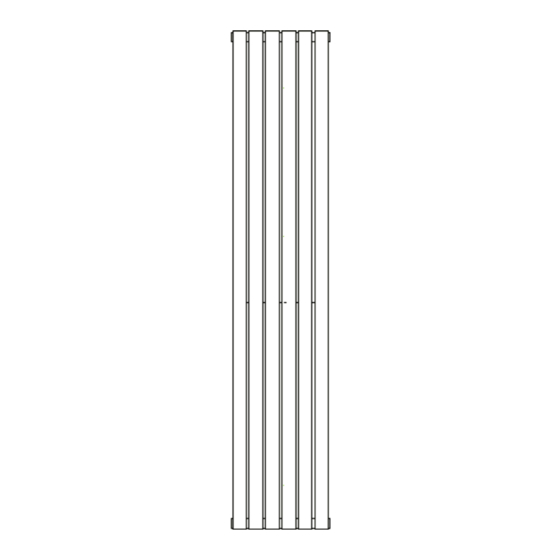

- Page 1 Column Radiator Fitting Instructions Please follow them carefully and leave this manual with end user V4.11.23...
- Page 2 Check & Inspect Here at Victorian Plumbing, we pride ourselves on selecting products from reputable manufacturers who manufacture to our exacting standards and quality control measures. All our products are well packaged and should reach you in pristine condition.
-
Page 3: Tools Required For Installation (Not Supplied)
Tools required for installation (not supplied) Pencil Tape Measure Power Drill Spirit Level Gloves Rubber Adjustable PTFE Tape Screwdriver Hammer Wrench Please check you have all the items below: Plug x1 Air vent x1 Gasket x8 Supporting structure Rawl Plug x8 Rubber Gasket x4 Long Screw x8 V4.11.23... - Page 4 Step 1: Position the radiator on your chosen wall and using a spirit level check that the radiator is level both vertically and horizontally. Using a pencil, mark the top & bottom fixing brackets ready for drilling & securing. Drain down the heating system in preparation to connect the radiator.
- Page 5 Step 2: Carefully drill the holes for the rawl plugs ensuring the correct sized masonry bit is used and insert the rawl plugs. For false or studded walls, different fixings can be purchased from your local DIY store. Ensure the fixings you choose are suitable for the type of wall structure to which you are hanging the radiator, also allowing for the weight of the radiator when both empty and filled with water.
- Page 6 Step 4: Wrap PTFE tape around the blanking and vent plugs, and screw into the top of the radiator. Tighten with a spanner. Step 5: Hang the radiator on the brackets, always checking that the radiator sits fully on to the bracket. Install the bracket and connect both flow and return pipework as required.
-
Page 7: After Installation
After installation • Use a screwdriver/vent key to open the air vent, open the valve and let the water rush into radiator. • Check all connections for leaks. • Once water overflows from the air vent, the radiator is fully purged of air. •...
