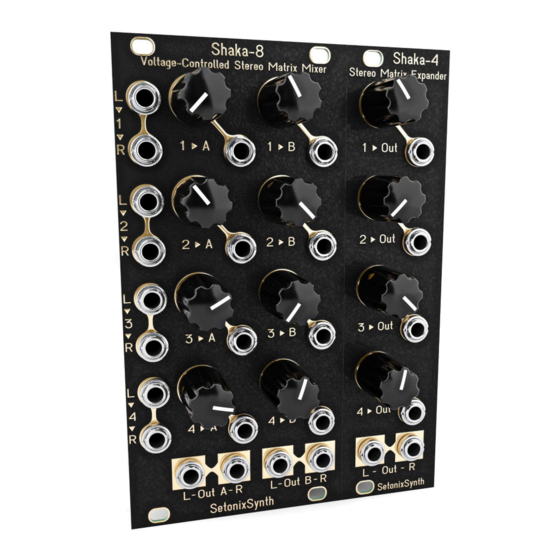

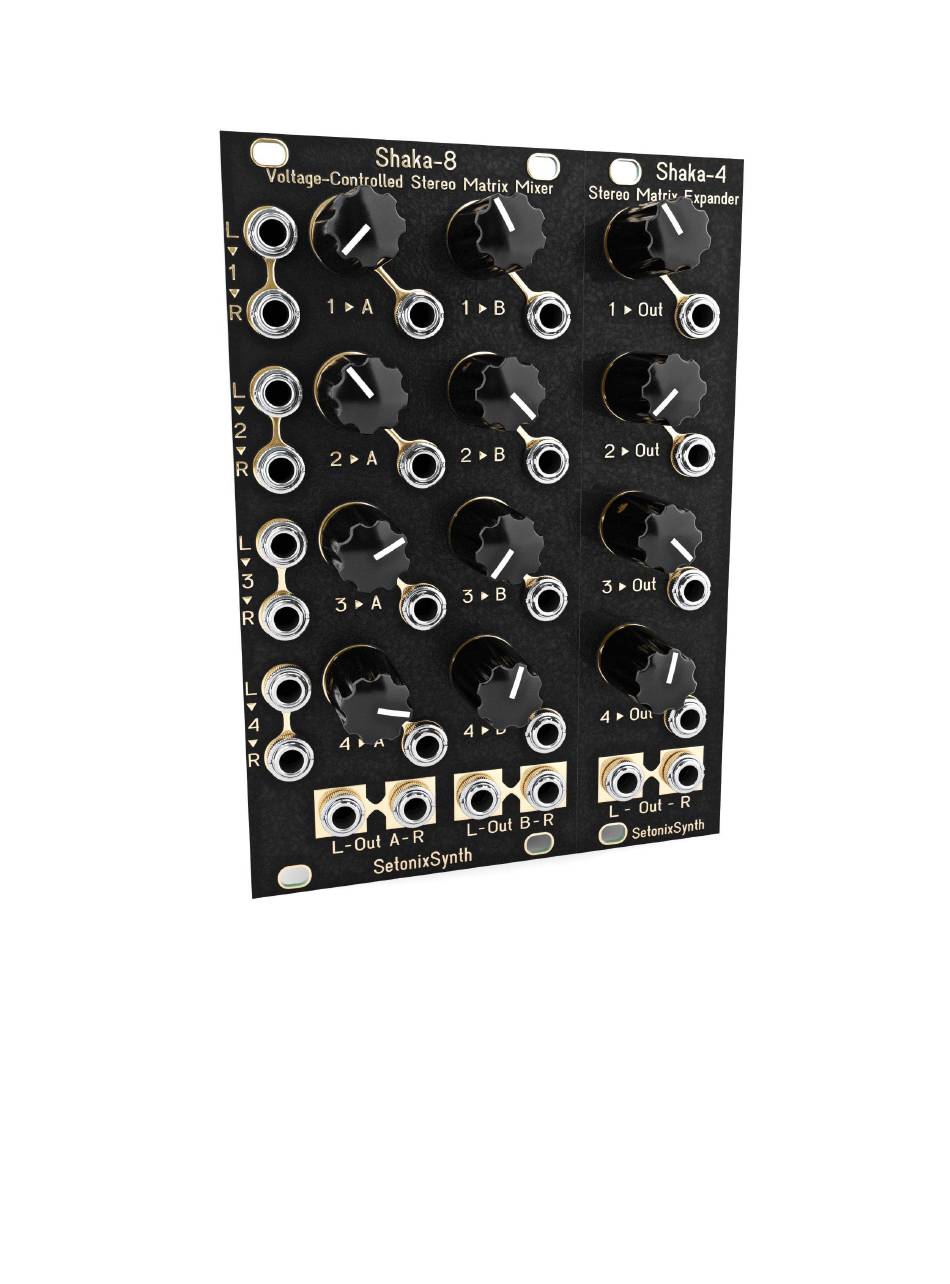

- Page 1 Shaka-8 Voltage-Controlled Stereo Matrix Mixer Shaka-4 Stereo Matrix Expander User’s Manual v0.1 - Eurorack Final specs subject to change Copyright 2024 SetonixSynth. All rights reserved.
- Page 2 L/R pair of inputs to each L/R pair of outputs. In addition to the 4 input and 2 output channels on the Shaka-8, the Matrix may be expanded to a 4x3, 4x4 or more matrix mixer by chaining Shaka-4 Stereo Matrix Expanders to the main unit via the 12-pin connector labeled “EXPANDER”...
- Page 3 CV Inputs: Exponential Control Voltage inputs which are summed with the related Initial Gain knob to control the level of the matrix point. The Shaka-8 and Shaka-4 can accept bi-polar voltages at the CV inputs, with the Initial Level control used to compensate.
- Page 4 Basic Effects Send/Return: Patch an Audio Output channel to the Audio Input of an effect such as a delay or reverb, and patch the fully Wet output of the effect to an Audio Input of the Shaka-8. Patch up to three audio signals to the other inputs of the Shaka-8.
