Ubique YAN-NNRE55425-GG Assembly Instructions Manual

Pet waste station with trash can

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
Before You Begin:
Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the
components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching
during assembly.
Caution:
Tighten all components securely before use. Failure to do so may result in personal injury.
DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may
result.
Warning:
CHOKING HAZARD - Small Parts. Adult Assembly Required.
DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE
Serious or fatal injuries can occur from furniture tipping over. You must install Tipping Restraint Hardware (where
included) to help prevent the unit from tipping and causing accidental injury, instability, death or damage. The
tipping restraint is intended only as a safety measure, it is not a substitute for proper adult supervision.
To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall
Straps suitable for the unit weight and wall materials (if not included) should be purchased and installed.
Customer Service Email: CustomerExperience@theubiquegroup.com | Phone: 866-552-2810

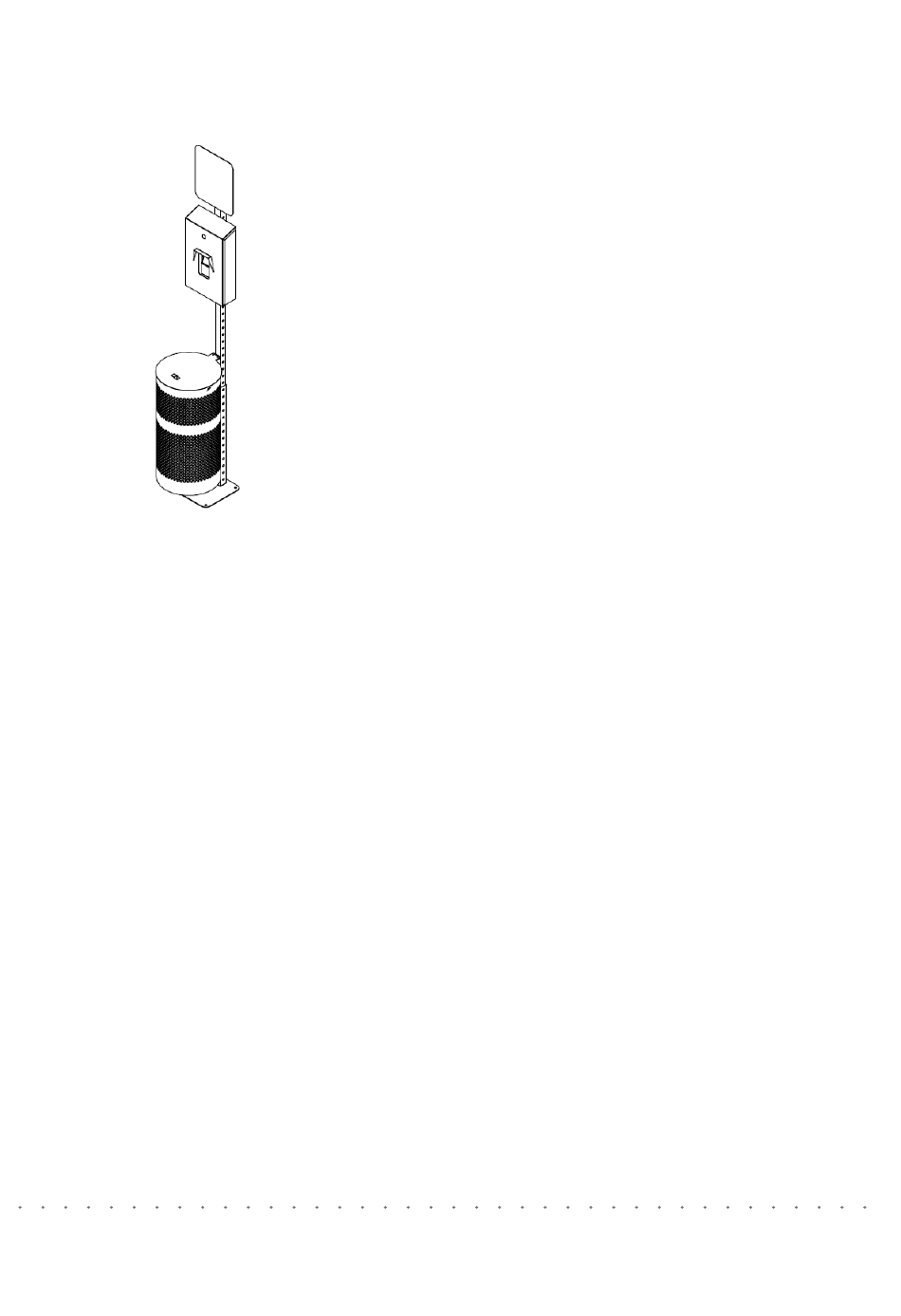

Pet Waste Station
with Trash Can
YAN-NNRE55425-GG
Thank you for your purchase!

Advertisement

loading
Need help?

Need help?

Do you have a question about the YAN-NNRE55425-GG and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubique YAN-NNRE55425-GG

  • Page 1 To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall Straps suitable for the unit weight and wall materials (if not included) should be purchased and installed. Customer Service Email: CustomerExperience@theubiquegroup.com | Phone: 866-552-2810 YAN-NNRE55425-GG...
  • Page 2 Station Sign Hand Sanitizer ♦ Bottle Dispenser c:::> c::> M 1 0 <:=:::> L-Shaped Bracket Can with Lid Hand Sanitizer Bottle (1 pc) L-Shaped Bracket (1 pc) Steel Post Base(1pc) Wrench Steel Post Segment A (1 pc) Steel Post Segment B (1 pc) Station Sign (1 pc) Bag Dispenser (1 pc) Allen Wrench...
  • Page 3 STEP 1 Place the base in the desired location on the cement surface and mark the 4 holes. Using an Air Hammer (Not Included) make the holes in the cement..STEP2 Insert the M 1 0 Expansion Bolt into the hole using a Hammer (Not Included).
  • Page 5 STEP 5 • • • • • • • • Align the holes on the back of the trash can with the holes on the steel post. Insert one Spring Washer & Flat Washer M8 on 7 M8 screws. Insert screws from back to front. Tighten screws using the Allen Wrench.
  • Page 6 STEP 7 On top of the steel post, align the holes on the back of the station sign with the holes on the steel post. I nsert one Spring Washer & Flat Washer M8 on 3 M8 screws. Insert screws from back to front. Tighten screws using the Allen Wrench .
  • Page 7 STEP9 Find and remove the 2 rubber caps on the side of the dispenser. Take the L-shaped bracket & align it with the holes. Insert the MS screws (the smallest ones) through the holes like shown in the picture. Tighten screws with MS nuts using the Allen Wrench and the Wrench.
  • Page 8 STEP 11 Hang the bags from the hooks as shown in the picture. Close & lock the dispenser door.
