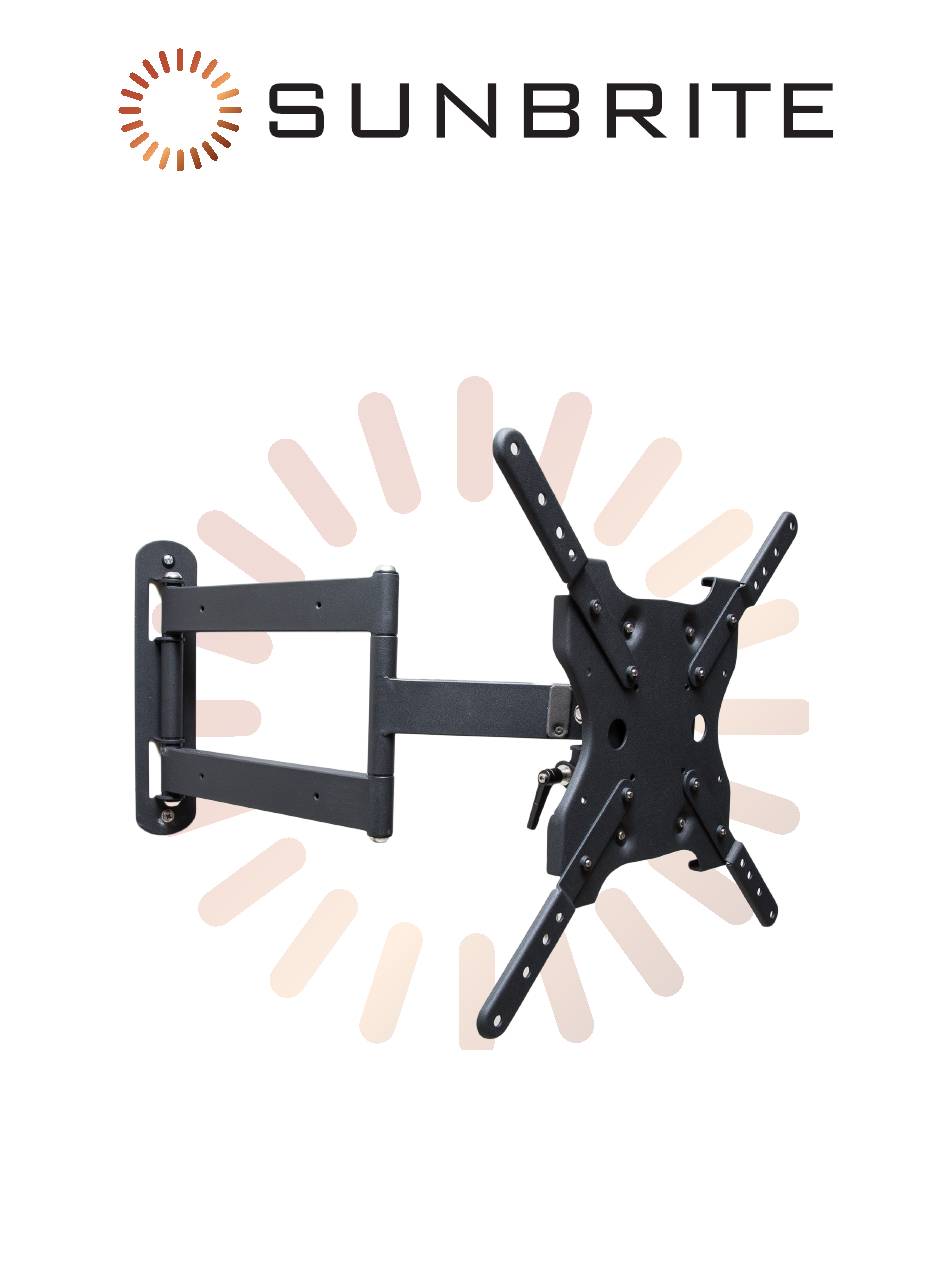

- Page 1 SB-WM-ART1-M-BL Weatherproof Single-Arm Articulating Mount for Medium Displays Installation Guide...
- Page 2 The maximum weight of this wall mount is 90 lbs (41 kg). Use with heavier than the maximum weight indicated may result in instability causing possible injury. Ensure these instructions are thoroughly understood before attempting installation. If unsure of any part of the installation process, contact a professional installer for assistance.
-
Page 3: Installation
Recessed (S) Recessed Hole Spacer Hole Spacer Spacer (T) Spacer BAG 2 Lag Bolt (U) M8×65 Concrete (V) A nchor Anchor Lag Bolt (W) Washer Washer Flange Bolt (X) M6×12 Button Head (Y) M8×12 Flange Bolt Hex Key –... - Page 4 Wall Mounting of Arm Assembly Hammer concrete anchors (V) into wall as applicable. Warning: If anchors are going to be applied to a plastered concrete wall, the anchor must be recessed beyond the plaster to reside fully in the concrete. Apply washers (W) to lag bolts (U).
- Page 5 Assemble TV Bracket Lay the TV flat on a soft, flat, surface and locate the four VESA mounting bracket holes. Determine the VESA pattern and prepare the TV bracket and adapters accordingly. Small Displays (Up to VESA 200×200) Use only the TV adapter plate. Back of TV Test the TV mounting bolts (A–M) and find the diameter that fits the TV’s VESA mounting...
- Page 6 Attach TV to Arm Assembly Caution: Only lift the TV with two persons. These instructions are the same for all TV sizes. Pull the head of the arm assembly out from the wall and tilt the Head Mount down as much as possible. This makes it easy to mount the TV.
-
Page 7: Tilt Adjustment
Adjustments Tilt Adjustment Loosen the tilt levers on the head of the arm assembly enough to allow controlled adjustment. Set the desired tilt, then re-tighten the locking levers. (Fig.11) Once the tilt levers are locked, their position can be adjusted by pulling out on each lever and rotating it to a less obtrusive position. - Page 8 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. Control4 and SunBriteTV are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners. Snap One makes no claim that the information contained herein covers all installation scenarios and contingencies, or product use risks.
