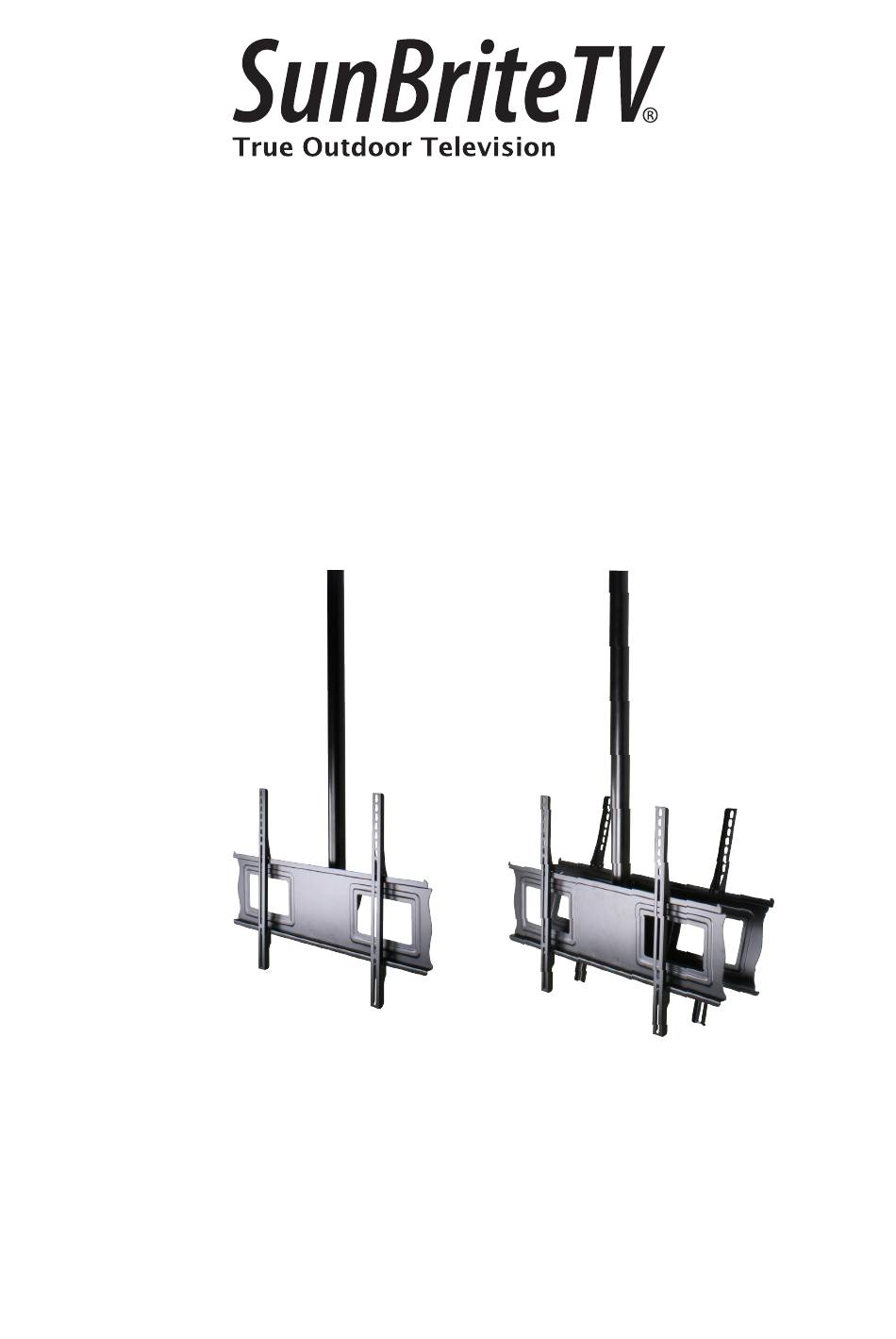

- Page 1 SB-CM-T-L-BL SB-CM-DT-L-BL Weatherproof Universal Single & Dual Ceiling Mount for Large TVs INSTALLATION MANUAL...
- Page 2 WARNING • We highly recommend this product be installed by a qualified professional. • Please do not begin installation until you have thoroughly read and understood these instructions. • This mount supports display mounting from VESA 200x200 up to 700X500. •...
- Page 3 INSTALLATION Step 1: Mark Mounting Hole Locations Place the ceiling plate on the mounting surface and mark the mounting Fig 1 hole locations. Step 2: Mount the Ceiling Plate For Mounting on a Wood Joist (Fig 1) a. Drill four holes into joist using a 3/16” drill bit. Be sure to drill into the center of the joists.
- Page 4 This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SunbriteTV or a designated service center with prior notification and an assigned return authorization (RA) number.
