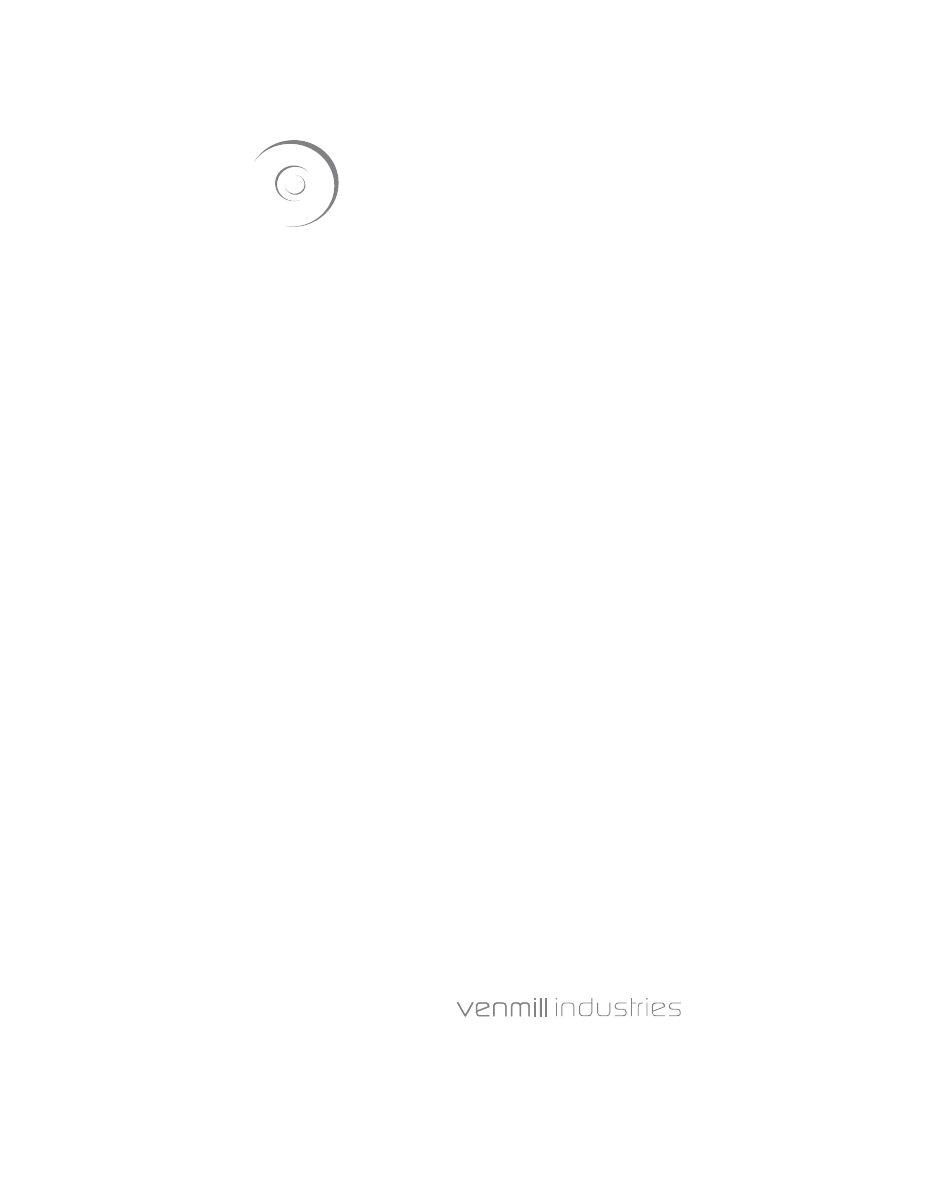

  • Page 1 ELITE 60 User’s Manual Covers getting to know your machine, repairing an optical disc, maintenance, menus, displays, & warranty coverage.
  • Page 2 660 Douglas Street Uxbridge, MA 01569 U.S.A 508-278-0091 www.venmill.com VenMill, Skip-Away, Elite 60 & OptoClear names and designs are trademarks of VenMill Industries, Inc. Artwork and Design © 2007 VenMill Industries, Inc. All Rights Reserved. The maximum amount of repairs per cartridge may vary based on cleaning cycle usage.
  • Page 3 THANK YOU For purchasing the Elite 60 This unit is intended to clean/repair the following discs: CD-Roms, Music CDs, Data CDs, DVDs, HD-DVDs, Computer Discs, Game Discs, Books on disc, all recordable CDs and DVDs, double-sided discs, & 3 Inch Discs (only with adapter).

  • Page 4: Table Of Contents

    Replacing the Buffing Wheels ............1 3 Cleaning the Buffing Wheels ............. 1 3 Replacing the Buffing Wheel Cleaning Brush ........1 4 Cleaning the Elite 60 .......................... Cleaning the Drive Wheel ..............1 5 Error Codes ..................1 5...

  • Page 5: Getting To Know Your Machine

    Getting to Know Your Machine SECTION 1 OPTOCLEAR CARTRIDGE 3 INCH ADAPTER HOLDER SPRAY NOZZLE PROTECTIVE SHUTTER CARRYING HANDLE DRAWER HANDLE DISPLAY MENU SCROLL BUTTONS POWER BUTTON REPAIR BUTTON Green = Power Blue = Repair mode Orange = Standby Green = Clean mode Red Flashing = Error...

  • Page 6: Onscreen Displays

    Onscreen Display SECTION 2 Onscreen Display The top line displays the machines status (Ready or Error Code) and cycle type (Repair or Clean). You can scroll through machine information by using the scroll buttons: a Total Repairs, Total Cleans, Percentage of Cartridge remaining, Percentage of Buffing wheel remaining, and the Menu Select.

  • Page 7: Quick Start

    Quick Start SECTION 3 1 Plug in the Elite 60 power cord. WARNING! Plug directly into outlet. Do not use Extension Cords. 2 Press the power button. The shutter will open completely. a a a a a 3 Select the language you want for your display.
  • Page 8 5 Press the Repair Button. a When the repair button is pressed, it will illuminate blue, indicating a 90 second repair is selected. b By default, the Elite 60 when it is first powered ON ON is in “Quick Clean Mode”.

  • Page 9: Operation

    Pressing the repair button will end the cycle. As long as the repair button is illuminated, the last selected cycle is in memory. 2. Insert a Disc into the Elite 60 Machine will start a cleaning cycle.

  • Page 10: Menu Screen

    (if available) HOUR OP – use this option to display the total hours of cycle operation. CHK SYS – use this option to test the functions of your Elite 60 . This may be used to determine where a failure has occurred.

  • Page 11: Replacing The Optoclear Tm Cartridge

    NOTE NOTE: Do not remove or tamper with safety caution label or chip on cartridge. Insert the new replacement cartridge into the Elite 60 4 Tighten the spray nozzle by turning clockwise. 5 Remove safety caution label on new replacement cartridge.

  • Page 12: Replacing The Buffing Wheels

    5 Install the new buffing wheel. Ensure it is fully seated against the back of the buffing motor spindle with label facing towards you. 6 It is recommended that you now clean your Elite 60 and change your cleaning brushes. (Please see pgs 14 & 15.) 7 Install the front drawer.

  • Page 13: Replacing The Buffing Wheel Cleaning Brush

    6 Insert new brush. 7 Reinstall buffing wheel with label facing you. 8 It is recommended that you now clean your Elite 60 . (Please see pg. 15) 9 Install the front drawer. Note: Push front drawer completely into machine or your machine will not power on.

  • Page 14: Cleaning The Elite 60

    You may use compressed air, a gentle vacuum, or your hand. 5 Install the front drawer. Note: Push front drawer completely into machine or your machine will not power on. 6 Plug in the Elite 60 power cord and turn on the power. Cleaning the Drive Wheel This may be necessary if the Disc is spinning roughly or improperly during the cycle.

  • Page 15: Year Limited Warranty

    TIONS: warranty gives the Purchaser specific legal rights, and the Warranty applies only to Elite 60™ units manufactured by or for Purchaser may also have other rights that vary by country, state VenMill that can be identified by the “VenMill” trademark, trade or province.
  • Page 16 FOR SUPPORT INFORMATION www .v .v .v .v .v enmill.com enmill.com enmill.com enmill.com enmill.com 508-278-0091 866-864-0210 TOLL FREE FOR NON-NORTH AMERICAN SERVICE PLEASE CALL YOUR REGIONAL DISTRIBUTOR If uncertain please contact sales@venmill.com E60M.PNV3000.111507.2...
