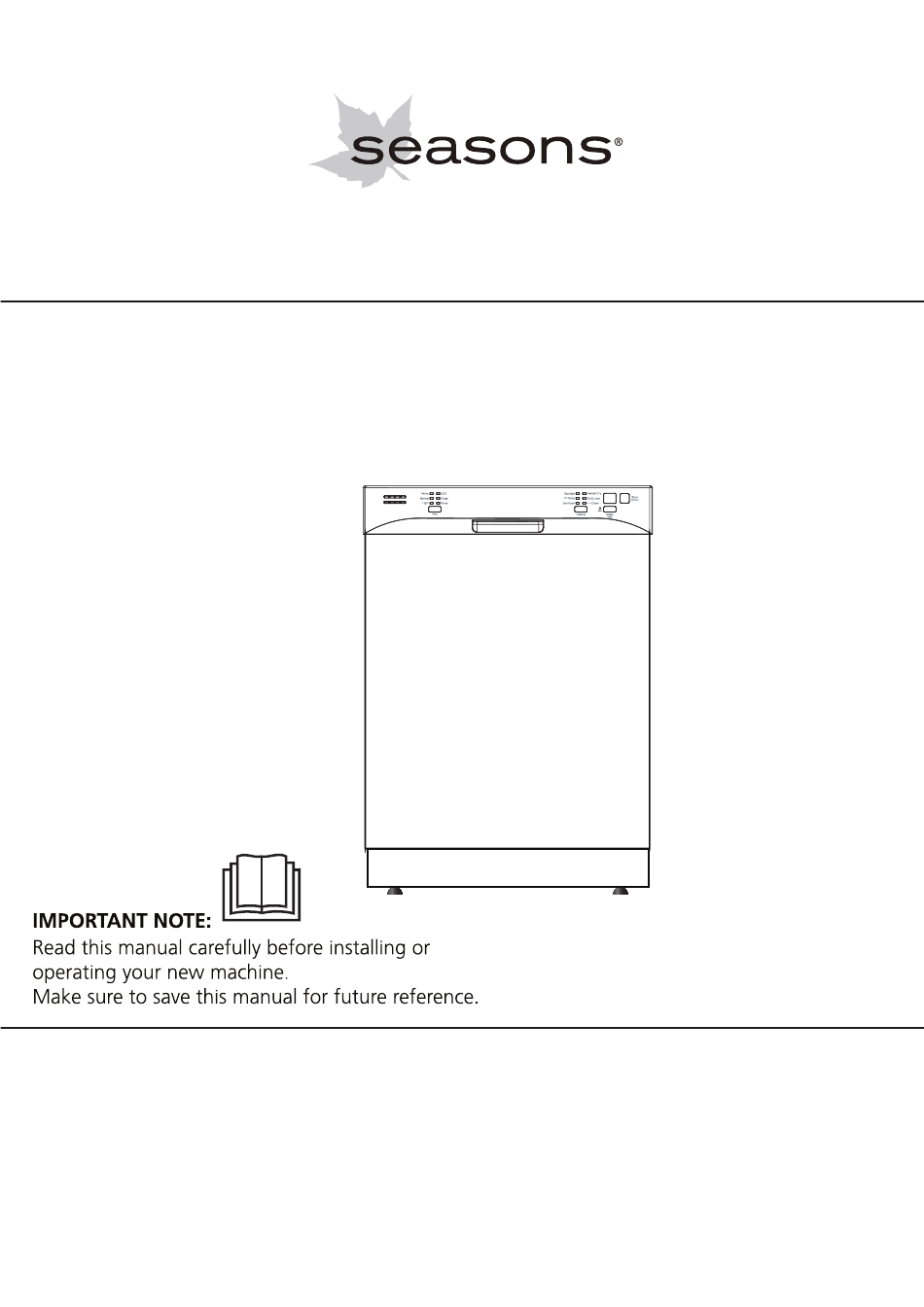

- Page 1 Use & Care Manual SDF24P2AWW SDW2FCMB SDF24P2AST SDW2FCMS SDF24P2ABB SDW2FCMW Exclusively Distributed By: To Reorder: HD Supply Atlanta, GA 30339 1-800-431-3000 hdsupplysolutions.com © 2022 Made in China...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! When using the dishwasher follow basic precautions including the following: or 149 . Water supply temperature should be 120 Dispose of the discarded appliance and packing material properly. The dishwasher must be grounded or it can result in a risk of electric shock If there is any damage of the dishwasher please contact to your dealer not to attempt to repair or replace any part by yourself . - Page 3 IMPORTANT SAFETY INSTRUCTIONS Do not use the dishwasher if it has a damaged power line or plug and do not plug the dishwasher into a damaged outlet failure to observe these instructions may result in electrical shock. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it . Do not touch the STEAM on the pannel during the washing...
- Page 4 DISHWASHER FEATURES Capacity 14 place settings Dimension 606 x 650 x 857 mm W x D x H Power Supply 120 V, 60 Hz Rated Power Usage Wash motor 50 W Heater 840 W Water Feed Pressure 20 - 120 psi (138 - 828 kPa) Rinse Aid Dispenser Top Spray Arm Detergent Dispenser...
- Page 5 OPERATING INSTRUCTIONS Options With the dishwasher door close, you can press When the wash cycle has been selected, you the PRO button to select the wash cycle. A can choose the option by pressing the "Options" light on the display will indicate which cycle button.
- Page 6 OPERATING INSTRUCTIONS Indicator Light Delay Start To delay the start of a selected cycle, press Delay Start Sanitized pad until the desired delay time shows in the LED When "sanitize" option is selected, the temperature indicator it allows you to automatically start your of the water will reach a maximum of 70°C (158°F).
- Page 7 OPERATING INSTRUCTIONS NOTE The remaining could suddenly increase or drop several minutes. This means the Smart Sensor has checked the soil level and determined if additional water fills are needed or if water fills can deleted. Running time Running time with Running time with Program Description of Cycle...
-
Page 8: Preparing And Loading Dishes
PREPARING AND LOADING DISHES Dish preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove the remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to... - Page 9 PREPARING AND LOADING DISHES Loading the Bottom Rack bottom rack is designed to load plates, soup bowls, plates, saucers and cookware. The adjustable rack space will allow you to load maximum 13 inch items. Large items should be placed along the edge so they do not interfere with the middle spray arm rotation, and make sure they not prevent...
-
Page 10: Adjustable Upper Rack
PREPARING AND LOADING DISHES Adjustable Upper Rack The upper rack height can be easily adjusted to accommodate loading taller dishes in either rack. To accommodate taller dishes in the bottom rack, there are 2 positions available: Upper Rack Position Lower Rack Position Note: Height should be adjusted without dishes in the racks. -
Page 11: Filling The Detergent Dispenser
& DISHWASHER DISPENSER & & * * * DETERGENTS Filling the detergent dispenser Filling the detergent dispenser Rinse aid greatly improves drying and reduces water 1. Push the dispenser cover latch downwards and spots and filming. Without rinse aid your dishes and open it . -
Page 12: Care And Cleaning
CARE AND CLEANING Clean the Stainless Steel Inner Because hard water chemicals will clog the Door and Tub spray arm jets and bearings, it is necessary to clean the spray arms regularly. Wash the The tub is made of Stainless Steel, it will not rust or corrode if the dishwasher should be scratched or dented. -
Page 13: Clean The Fine Filter
CARE AND CLEANING Clean the Fine Filter Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To remove the Fine Filter you must first remove the bottom spray arm as shown below. Flush the Fine Filter by holding it under running water and replace. -
Page 14: Solutions To Common Dishwashing Problems
SOLUTIONS TO COMMON DISHWASHING PROBLEMS Solution Problem Possible cause Possible cause Solution Door may not be closed properly Shut the door compl l ete ly make sure it is latched Door may not be closed properly Power supply or power line is not connected Check and connect the power supply Power supply or power line is not connected Delay Start option has been selected... -
Page 15: Error Codes
SOLUTIONS TO COMMON DISHWASHING PROBLEMS Problem Possible cause Solution Detergent dispenser Add the detergent and rinse aid as indicated by Improper operation of the detergent cover the manual will not shut Water remains in the Select the proper cycle as introduced by the Previous cycle has not finished or has been dishwasher interrupted... - Page 16 Midea To contact a customer service representa�ve, call HD Supply Warranty Solu�ons . 1-800-782-4154 or email FMWarrantySolu�ons@hdsupply . com Midea Midea Midea...
Need help?
Do you have a question about the SDF24P2AWW and is the answer not in the manual?
Questions and answers
How do I clear an error message
To clear an error message on the SeasonsComfort SDF24P2AWW, first address the cause of the error (for example, open the faucet or check for leaks). Then, press the Start/Cancel pad once. The dishwasher will start a 60-second drain and shut off. After the drain, you can select a new cycle.
This answer is automatically generated
Turn off child lock?
To turn off the child lock on the SeasonsComfort SDF24P2AWW, press and hold the Delay Start pad for 3 seconds until the lock graphic light turns off.
This answer is automatically generated
How to turn heat off when washing
The manual does not explicitly state how to turn off the heating element during washing. However, avoiding the "Hi-Temp Wash" and "Sanitize" options may reduce heat usage. Additionally, selecting the "Eco" wash cycle could minimize heating.
This answer is automatically generated
Why does DW start washing cycle when door is opened to put dirty dish in
The SeasonsComfort SDF24P2AWW dishwasher does not start the washing cycle when the door is opened. Opening the door may turn on the display if the dishwasher is in power-saving mode, but it does not trigger the wash cycle to start.
This answer is automatically generated
Why does it switch between mins and 1-2 hour display when I only want it running for a light cycle?
My delay start cycle will not cancel or clear
What do bells ringing signify? The manual says nothing about a bell ringing once or multiple times? Also, we cannot get the machine to go off of flashing 2 hr 38 min?
Which kind of detergent I should use for detergent dispenser? Can I use liquid or pods?
I need a replacement rinse aid dispenser cap. Or a replacement part number
