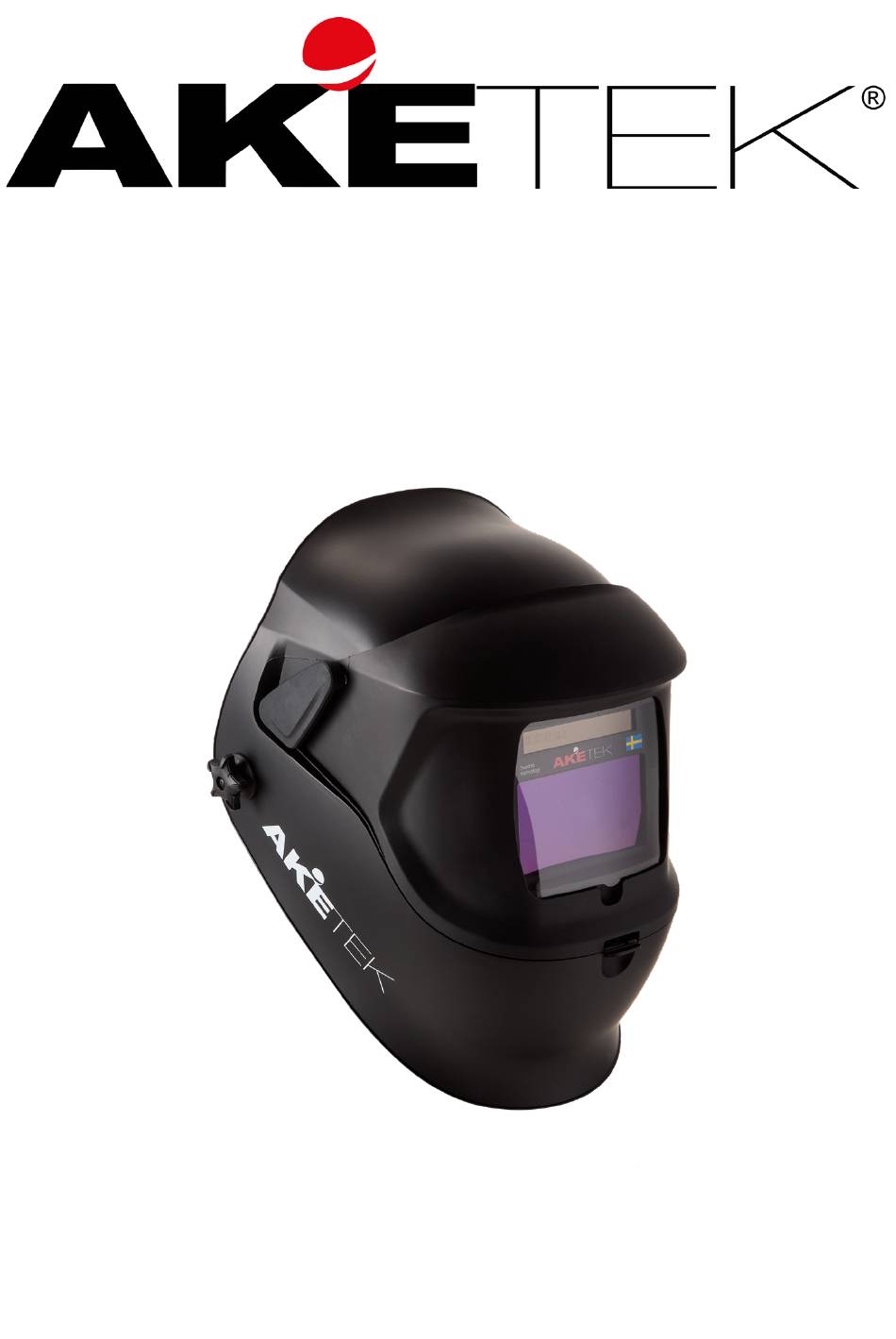

- Page 1 AKETEK® LIFT-UP WELDING HELMET User’s manual...
-
Page 2: Table Of Contents
1 Introduction 2 Operating instructions 3 Maintenance and cleaning 4 Storage and transport 5 Spare parts 6 Troubleshooting 7 Replacement of parts 8 Technical specifications 9 Product markings 10 Compliance and notified body 11 Warranty 13 Recycling and environmental information... -
Page 3: Introduction
The following User Instructions are applicable to the AKETEK® Lift-Up welding helmet equipped with an auto-darkening filter (ADF). The AKETEK® Lift-Up welding helmet is designed for electric arc weld- ing (MIG/MAG, MMA, TIG), grinding and plasma cutting. The helmet provides reliable protection against ultraviolet radiation (UV), infrared radiation (IR), visible light, sparks and weld spatters when used in accordance with the User Instructions. -
Page 4: Operating Instructions
Warnings: AKETEK® Lift-Up welding helmet can only be used for electric arc welding, plasma welding, and grinding. AKETEK® Lift-Up must always be equipped with an AKETEK® auto-darkening filter, outer & inner cover plates and a grinding visor. Before welding, always inspect the helmet for cracks or scratches to the welding filter or protection plates. - Page 5 2.1 Adjusting the helmet Adjust the size of the circumference so that the helmet fits firmly and comfortably on the head by turning the knob on the back. The headgear has two adjustable head straps and a flexible neck pad for increased comfort.
- Page 6 Make sure to activate “WELD” mode before welding. If the AKETEK® ADF fails to switch to dark mode when it is set to WELD, stop welding immediately and see the troubleshooting section.
-
Page 7: Maintenance And Cleaning
Recommended shades for various welding applications. 2.3 Raising and lowering the visor Please note that the visor raises in a different motion compared to other brands. Follow the tracks on the side of the helmet when raising and lowering the visor to prevent damages to the helmet. When lowering the visor, make sure you pull the visor forward and then downward. -
Page 8: Storage And Transport
4 Storage and transport Make sure that the AKETEK® Lift-Up welding helmet and its components have not sustained any damage during transportation. Store the welding helmet in a dry environment with temperatures ranging from -10°C to +40°C, with humidity levels below 90% relative... -
Page 9: Spare Parts
Our products are designed with modularity in mind, ensuring ease of use and maintenance for our valued customers. Should you require spare parts or replacements, visit our website at www.aketek.com or reach out to our dedicated support team for assistance. -
Page 10: Replacement Of Parts
Always use out- er and inner cover plates and make sure they are fitted correctly. Always check our website www.aketek.com for the most up-to-date information. 7 Replacement of parts 7.1 Replacing the Lift-Up grinding visor 1. - Page 11 7.1 Replacing the outer cover plate 1. Remove the outer cover plate by pulling it out at the lower part of the cover plate. 2. Remove the protection film from both sides of the new cover plate. 3. Insert the new outer cover plate into one side and bend the plate to snap into the other side.
-
Page 12: Technical Specifications
7.6 Replacing the soft neck pad 1. Remove the soft neck pad. 2. Attach a new soft neck pad. 7.7 Optional magnifying lens The magnifying lens can be inserted by following the same instructions as for the inner cover plate, see 7.2. 8 Technical specifications Optical clarity / 1/1/1/1 per EN-379 /... -
Page 13: Product Markings
9 Product markings Markings on AKETEK® Lift-Up Welding helmet 16321 Name of the standard Manufacturer’s identification Welding filter Maximum shade number Impact level Applicable head size Markings on AKETEK® VIEW Auto-darkening filter 16321 Name of the standard Manufacturer’s identification Welding filter... -
Page 14: Compliance And Notified Body
If the impact level symbols are not equal on both the lens/filter and the frame, then it is the lower level that shall be assigned to the complete protector. Some products may display markings in accordance with previous standards such as EN175, EN379 and EN166. Light state Variable shade 8-12... -
Page 15: Warranty
11 Warranty Aketek Industries AB covers any defects in material or workmanship under normal use for two (2) years for the auto-darkening filter. Aketek Industries AB’s obligation under this warranty shall be to repair, replace, or refund the purchase price of any product or portion thereof deter- mined to be defective in materials or workmanship. - Page 16 While every effort has been made to ensure the accuracy and completeness of this manual, no guarantee nor liability can be accepted for any errors or omissions. Aketek Industries AB reserves the right to change the specification of the product described at any time without prior notice.
