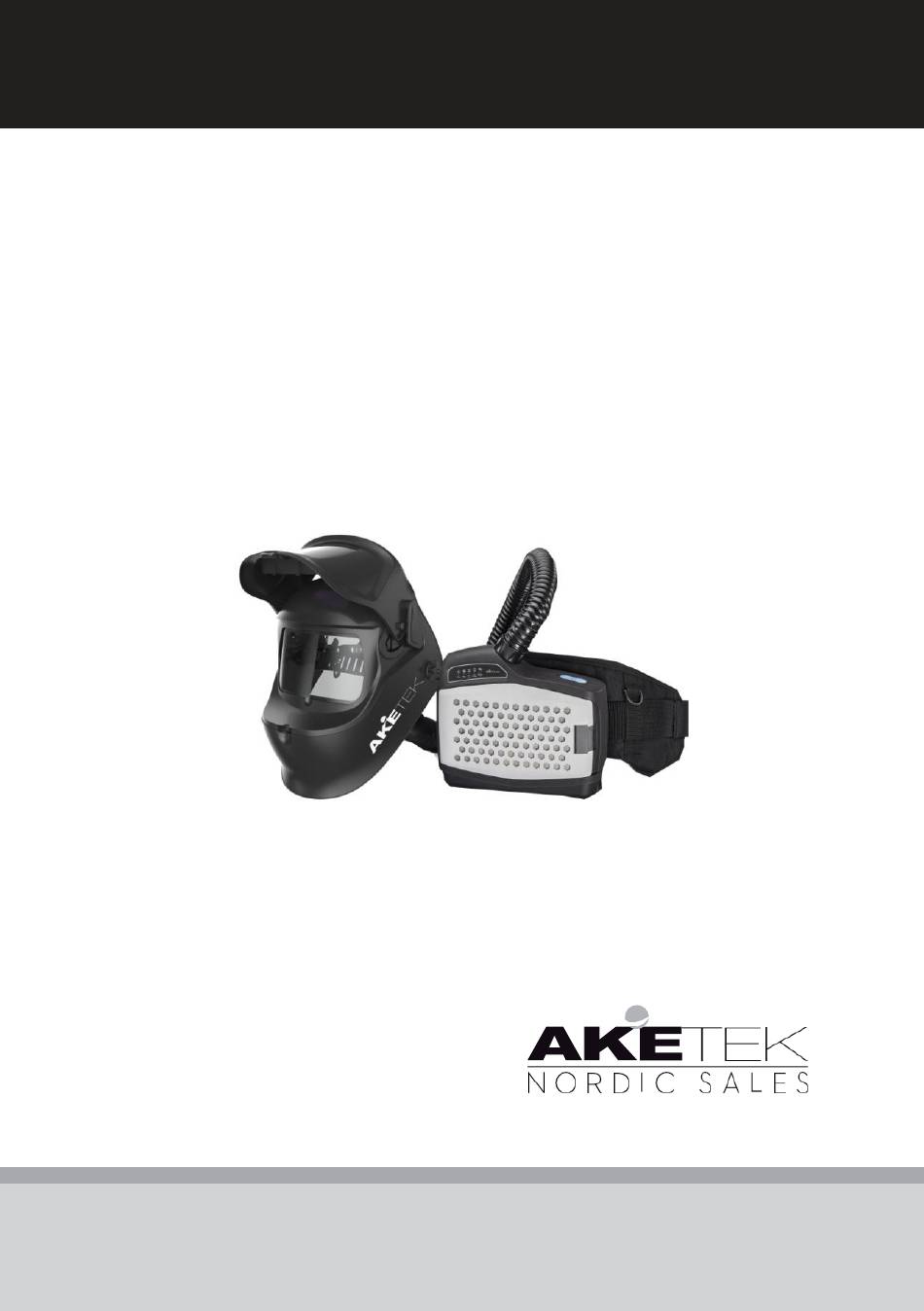

- Page 1 Operation instructions: Aketek LIFT-UP AIR Created: January/2020 Updated: April/2023 Aketek LIFT-UP AIR welding helmet Installation, operation and maintenance instructions...
- Page 2 0,0001 sec. The electronic is extremely low power and the in-built battery, supported by a solar cell, has a long life time. At all Aketek welding helmets switching to grinding mode is possible.
-
Page 3: Table Of Contents
Innehåll Information ................... 4 Areas of applications ..............4 Preparations before use: .............. 5 In use ....................6 Maintenance and cleaning ............7 Storage and transport ..............10 Installation and replacement of parts ........10 Spare parts ................... 13 Warranty ..................13 10.0 Please note the following ............ -
Page 4: Information
UV/IR radiation for eyes and skin, no glare from the welding arc, better quality and faster and more efficient welding. With the Aketek LIFT-UP AIR, you can lift up the welding filter to also have protection for grinding work and to get a better overview of the workplace. -
Page 5: Preparations Before Use
170 l/min or 220 l/min. The runtime for Aketek LIFT-UP AIR is 6-10 hours. The capacity of the battery is affected by the selected airflow, low ambient temperature, number of charges and care/maintenance. Do not use the welding helmet for uses other than those specified below. -
Page 6: In Use
LED lamps are lightened on the AIR unit and three beeps are heard. Then Aketek LIFT-UP AIR is ready to be used. 3.11 During startup, a self-check is performed to ensure the correct amount of airflow, 170 l/min. -
Page 7: Maintenance And Cleaning
The outer and inner protection plates must be replaced if they become scratched or damaged in any way that impairs the view. The protection plates from Aketek are made of polycarbonate plastic (PC) with a scratch-resistant surface coating. If protection plates are not used, the welding filter cassette will be damaged by weld spatter and the warranty will be invalidated. - Page 8 If the AIR blower unit warns “Change filter”, replace the prefilter as a first step. If the AIR blowing unit still warns, the particle filter also needs to be replaced. 5.10 See recommended maintenance on the next page. You can also download it at www.aketek.se.
- Page 9 Product Control Recommended replacement Note Outer Daily. Look for scratches, Once a month, more often Scratches, dirt, and welding splashes impair protection dirt, heat damage, etc. when needed. visibility, which may adversely affect the result. plate Date of exchange: Inner Daily.
-
Page 10: Storage And Transport
Installation and replacement of parts If the Aketek automatic welding filter cassette, a protection plate or grinding visor needs to be replaced, follow the instructions below. Note that the welding filter cassette protects against UV/IR radiation and is in the light state before welding and in the dark state during welding. - Page 11 Replacing the inner protection plate 7.2.1 Lift up the front part holding the welding filter cassette. Remove the inner protection plate on the inside of the welding filter cassette by pulling it out from the side holders. 7.2.2 Remove the protective film on both sides of the new inner protection plate. 7.2.3 Slide in the new inner protection plate.
- Page 12 Replacing of the soft neck pad Remove the soft neck pad which is attached with Velcro. 7.7.1 7.7.2 Attach a new soft neck pad, with Velcro on the outside of the headband. Replace the face seal 7.8.1 Loosen all Velcro straps that the fabric is attached to. 7.8.2 Release the headband from the helmet by pressing the button on the upper side of the bracket, both on the right and left sides of the helmet.
-
Page 13: Spare Parts
Downloaded a warranty form from www.aketek.se. If a defect is found to be covered by the warranty, return the product to Aketek Nordic Sale. Aketek Nordic Sales is not responsible for indirect damages or consequential damages that... -
Page 14: Please Note The Following
arise through the use of the product. The warranty does not apply to malfunctions or damage to the product caused by modification, improper use, or improper and careless handling such as marks from abuse and damage to the electronic welding filter cassette. Please note the following 10.1 This welding helmet should only be used for electric arc welding and plasma... - Page 15 10.17 Aketek LIFT-UP AIR must not be used in a flammable or explosive environment, if the inhaled air has a low oxygen content, if the concentration of contaminants is so high that it exceeds safety class TH3P (Europe), in temperatures below -5 °C or over +55 °C or if...
-
Page 16: Marking
EN 12941 – 1988/A2 2008 to class P3 and TH3. The certification has been performed ° by CE Notified Body 0082, APAVE Sudeurope SAS (n 0082) CS60193, 13322 Marseille Cedex 16 France. Manufacturer: Aketek Industries AB, Falun, Sweden. General agent: Aketek Nordic Sales AB, www.aketek.se.
