3004509-2019-08-29

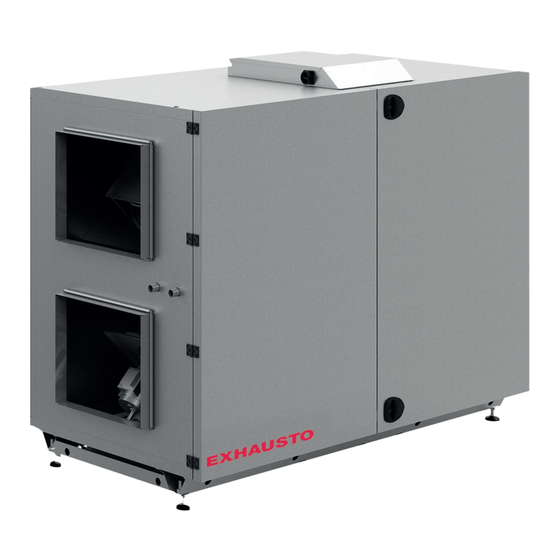

VEX170 Horizontal HCW
with EXact2 control
Product information........................................ Chapter 1 + 6
Mechanical assembly..................................... Chapter 2 + 3
Electrical installation.......................................Chapter 4
Maintenance...................................................Chapter 5
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
Tel. +45 65 66 12 34
Fax: +45 65 66 11 10
exhausto@exhausto.dk
www.exhausto.dk
VEX170H_HCW
Original instructions
Advertisement
Table of Contents
Related Manuals for Exhausto VEX170
Summary of Contents for Exhausto VEX170

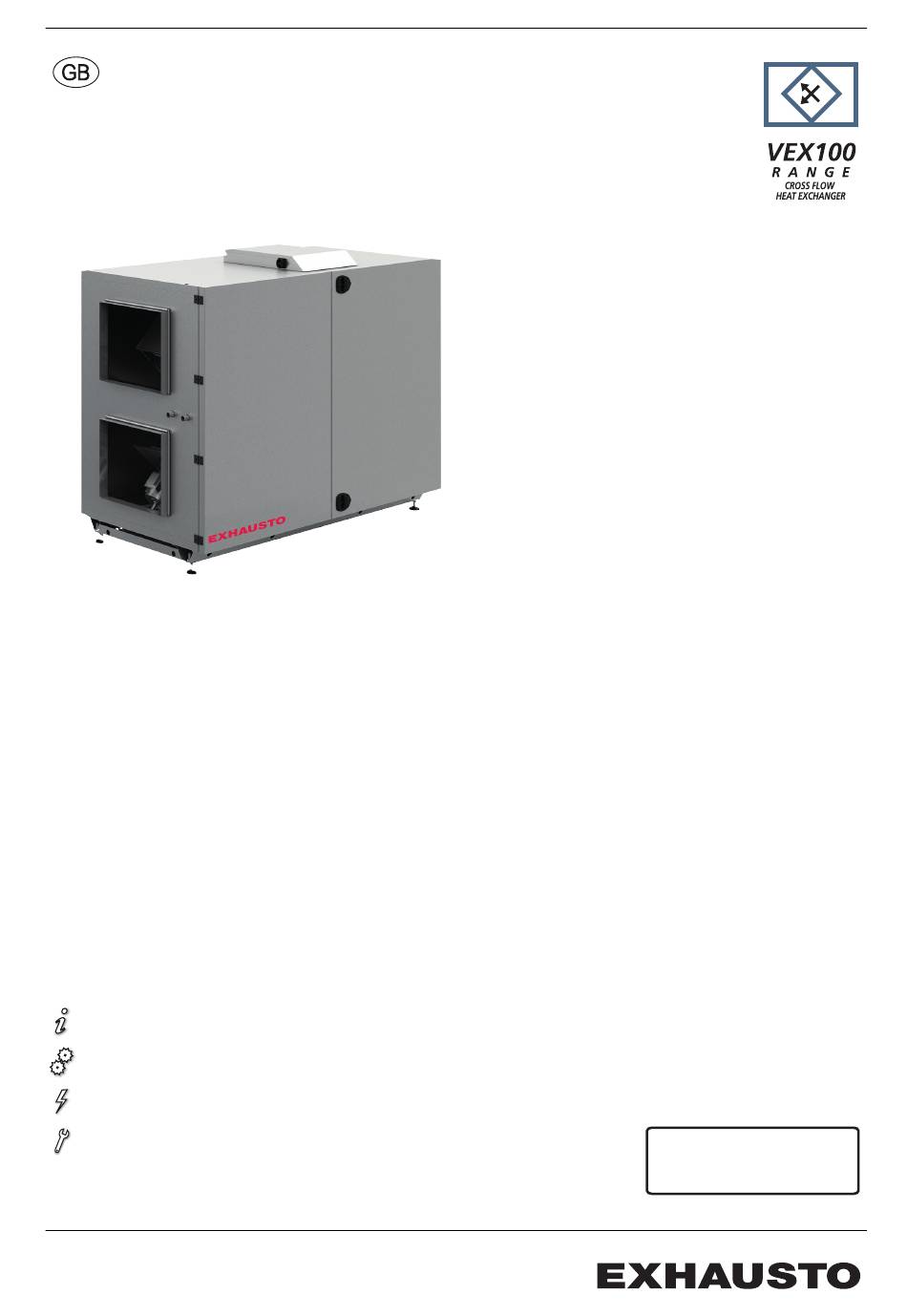

- Page 1 VEX170H_HCW 3004509-2019-08-29 VEX170 Horizontal HCW with EXact2 control Product information........Chapter 1 + 6 Mechanical assembly........Chapter 2 + 3 Electrical installation........Chapter 4 Maintenance...........Chapter 5 Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax: +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk...
-
Page 2: Table Of Contents
3004509-2019-08-29 1. Product information 1.1. Designations used in these instructions.............6 1.1.1. Simplified diagram....................6 1.2. Application......................7 1.3. Location requirements..................7 1.3.1. Space requirements..................7 1.3.2. Requirements for underlying surface............... 7 1.3.3. Condensation outlet..................7 1.3.4. Requirements for duct system................. 8 1.4. - Page 3 3004509-2019-08-29 6.3.1. MVM motor valve ..................31 6.4. Capacity diagram....................32 6.5. EC Declaration of Conformity................32 6.6. Ordering spare parts................... 32 6.7. Environmental declaration..................33 3/36...
- Page 4 Failure to observe instructions marked with a danger symbol may result in personal injury and/or damage to the unit. Scope This instruction manual is for use with EXHAUSTO VEX-type air handling units. Please refer to the product instructions regarding accessories and extra equip- ment.
- Page 5 Rating plate The VEX unit rating plate shows: ● VEX unit, type (1) ● production number (2) Always have the production number ready when contacting EXHAUSTO A/S. Choose the correct documentation for the task... Find your information. Assembly and Electrical instal-...
-
Page 6: Product Information
Product information 3004509-2019-08-29 1. Product information 1.1 Designations used in these instructions 1.1.1 Simplified diagram Component Function Standard/accessory Water heating coil Standard TE-RPT Temperature sensor in return pipe from water heating coil (internal) Standard MPT1, P1 Airflow control, extract air Accessories MPT1, P2 Airflow control, supply air... -
Page 7: Application
3004509-2019-08-29 1.2 Application Comfort ventilation EXHAUSTO VEX is used for comfort ventilation tasks. Operating temperature range for the unit – see section "Technical data". Prohibited uses The VEX unit is not to be used to transport solid particles or in areas where there is a risk of explosive gases. -
Page 8: Requirements For Duct System
● heating/cooling losses Condensation Condensation in the ducts may occur when the exhaust/outdoor air has high hu- midity. EXHAUSTO recommends a condensation outlet is also fitted at the lowest point in the ducts. Outdoor air intake The outdoor air intake must be dimensioned with sufficiently low airflow to prevent rain and snow being drawn into the duct system. -
Page 9: Description
Product information 3004509-2019-08-29 1.4 Description 1.4.1 Construction of the VEX unit The following drawings show an overview of the construction of left and right-hand models of VEX units (shown without door). 20 21 2,1,A 1,2,A 2,2,A 1,1,A 2,1,A 1,2,A 2,2,A 1,1,A 9/36... -
Page 10: Parts Of The Vex Unit
Product information 3004509-2019-08-29 Pos. Part Function Spigot 2,1,A Outdoor air spigot The spigot can also be posi- tioned on the top of the unit (2,1,B). Closing damper LS LSF, outdoor air closing damper Outdoor air filter Filters outdoor air Bypass damper For operation with heat recovery, the bypass damper is closed so that the air passes through the crossflow heat exchanger. - Page 11 Product information 3004509-2019-08-29 Crossflow heat ex- The crossflow heat exchanger in the unit is mounted with a modulating bypass changer damper. The crossflow heat exchanger can be removed for cleaning. Filters The unit includes integral panel filters for both extract air and supply air. 11/36...
-
Page 12: Principal Dimensions
Product information 3004509-2019-08-29 1.5 Principal dimensions VEX170H, Left The following drawing gives the principal dimensions: 2200 1,2,B 2,1,B 2,1,A 1,2,A 1" 2,2,A 1,1,A DN32 2,2,B 1240* 1190 2,1,A 1,2,A 2,2,A 1,1,A The drawing shows all of the spigot positioning options. * Allow a distance for service in front of the unit equivalent to the unit depth. - Page 13 Product information 3004509-2019-08-29 2200 1,2,B 2,1,B 2,1,A 1,2,A 1" 2,2,A 1,1,A DN32 2,2,B 1240* 1190 2,1,A 1,2,A 2,2,A 1,1,A The drawing shows all of the spigot positioning options. * Allow a distance for service in front of the unit equivalent to the unit depth. ** Allow a min.
-
Page 14: Handling
Handling 3004509-2019-08-29 2. Handling 2.1 Unpacking Supplied compo- The following components are supplied: nents ● VEX unit ● Supplied accessories (as indicated in the checklist on the front page of the in- structions). Packaging The unit is delivered on a disposable pallet and packed in clear plastic. Once the plastic has been removed, the unit must be protected against dirt and dust: ●... - Page 15 Handling 3004509-2019-08-29 Method Drawing Note - without dis- posable pallet There is a risk of dam- aging the base of the unit if the forks on the lifting equipment are in- sufficiently long and the disposable pallet is not used. Pallet truck or fork-lift truck - without dis- posable pallet: Use...
-
Page 16: Passage Through Openings
Handling 3004509-2019-08-29 Method Drawing Crane: Use straps and lifting yokes to prevent dam- age to the unit. 2.2.1 Passage through openings Height The height of the VEX is 1895 mm. Width The list (below) shows how wide the opening has to be for the unit to pass through: If the opening width is ...*) Response... -
Page 17: Internal Transport With Reduced Weight
Handling 3004509-2019-08-29 2.2.2 Internal transport with reduced weight Removing the serv- To remove the service doors: ice doors ● Open both doors. ● Using a small punch or similar tool, knock the pin out of the top of the door hinges (A), and lift the doors off. - Page 18 Handling 3004509-2019-08-29 To remove the fan unit Step Action Remove the fixing screw from the sliding rail, and release the ties on the motor cable. Pull the fan unit out to the stop (two screws) on the sliding rail. Dismount the motor cable from the motor con- trol on the sliding panel and pull it towards the motor through the rubber grommets.
-
Page 19: Mechanical Assembly
After installation, check the VEX unit is completely level. 3.1.2 Integral mounting base The EXHAUSTO integral mounting base enables the air handling unit to be installed correctly. The base is equipped with adjustable machine shoes, so that the air han- dling unit can be fitted horizontally on a surface that is not level ( +/- 20 mm per me- tre). -
Page 20: Water Heating Coil
Solution with HT Use HT pipe (HT, DN32, DIN4102), if the above solution is not employed (not sup- pipe plied by EXHAUSTO). 3.3 Water heating coil 3.3.1 Principles for connecting the water heating coil Mixing loop The diagrams below are simplified. The dimensioning of valves, pipes, etc. and heating coil connection must always be carried out by authorised fitters in accord- ance with applicable regulations and legislation. - Page 21 Mechanical assembly 3004509-2019-08-29 Type Principle Simplified diagram Mixing Variable flow in the primary loop 1 circuit (supply) and constant flow in secondary circuit (VEX unit) Mixing Variable flow in the primary loop 2 circuit (supply) and constant flow in secondary circuit (VEX unit) a) When there is no heating requirement, valve adjust-...
-
Page 22: Mvm Valve
I - AB Pressure difference regulator* Impurity trap* *) not EXHAUSTO delivery (refer to the technical specifications in section 7). Bleeding Following connection of water supply to the unit: ● Bleed the system thoroughly using the upper bleed screw on the water heat-... - Page 23 Mechanical assembly 3004509-2019-08-29 Exercise cycle of The circulation pump is exercised with the EXact2 control, as described here: circulation pump 1. With no heat requirement, the MVM valve runs at 0%. 2. The circulation pump will then run for a further 5 min and stop. 3.
-
Page 24: Electrical Installation
3004519-2013-02-07 Guide to Electrical Installation of VEX150-160-170 with water heating coil and EXact2 Electrical installation........Chapter 1 + 2 Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk... -
Page 25: Maintenance, Hygiene And Servicing
1111) to check the unit’s operating status. 5.2 Maintenance 5.2.1 Overview of maintenance intervals The following chart details the recommended maintenance intervals for the VEX. based on normal operation. EXHAUSTO recommends maintenance is adjusted to suit the actual operating requirements. Component Procedure... -
Page 26: Hygiene (Vex100Vdi Only)
● Use of non-original filters may cause leakage in the VEX unit, impair filter function and cause an extraordinary pressure drop. ● EXHAUSTO recommends that you register the filter replacement date to en- sure filters are replaced at the correct intervals. -
Page 27: Cleaning The Heating Coils
Maintenance, hygiene and servicing 3004509-2019-08-29 5.4.3 Cleaning the heating coils Step Action Switch off the power supply to the unit at the isolation switch before opening the doors. Vacuum clean the heating coil Check that the fins on the heating coil are not deformed. The fins are sharp. - Page 28 Maintenance, hygiene and servicing 3004509-2019-08-29 Step 1-11 Action Clean the heat exchanger by flushing with hot water or by pressure washing. Max. water temperature. 90℃. Mount the bypass motors. The damper must be in open position (louvres fully open), as for dismounting.
-
Page 29: Technical Data
Technical data 3004509-2019-08-29 6. Technical data 6.1 Weight, corrosion class, temperature ranges, etc. Weight VEX total weight 665 kg Doors 2 x 29 kg Crossflow heat exchanger 124 kg Fan unit 2 x 36 kg VEX for transporting into building (without doors, heat exchanger 411 kg and fan unit) Corrosion class... -
Page 30: Panel Filters
Damper depth 100 mm 100 mm A maximum of two LSFR dampers or four LSA/LSF dampers may be connected. 6.2 Panel filters VEX170 Data Device Dimensions: h x w, 1 item per air direction 800 x 564 Panel filter thickness Temperature resistant to °C... -
Page 31: Water Heating System
Fin spacing 2 mm Permissible media temperature 5..0.95℃ Recommendation A precise calculation of the heating coil is recommended, to be carried out with calculation program EXselect, available on www.exhausto.dk. 6.3.1 MVM motor valve Valve 1.0 - 4.0 Test pressure 1600 kPa 1600 kPa Max. -
Page 32: Capacity Diagram
Air flow rate Recommendation You are recommended to make a more precise calculation of the unit's capacity with the EXselect calculation program, available on the EXHAUSTO web- site. 6.5 EC Declaration of Conformity The document is located in the door of the VEX unit. It is also available on the EX- HAUSTO website by searching under the document or order number. -
Page 33: Environmental Declaration
3004509-2019-08-29 Contact: Contact your local EXHAUSTO office service department to order a spare part. Contact information is given on the back cover of these instructions. See also the "Layout" section for an overview of the position and designation of parts in the VEX. - Page 34 3004509-2019-08-29 34/36...
- Page 35 3004509-2019-08-29 35/36...
