Summary of Contents for Lacidoll LCD-MH-2303A

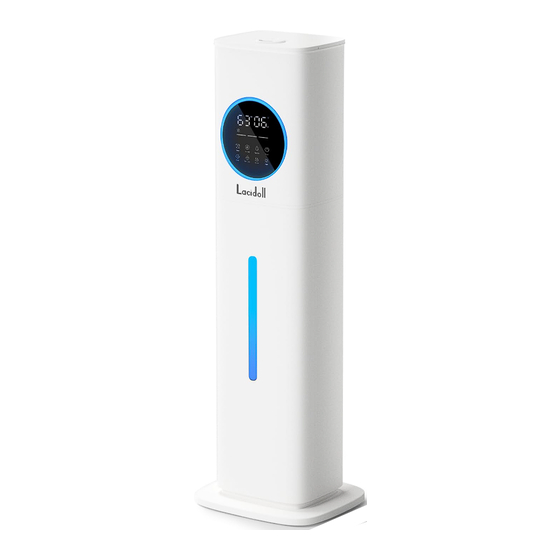

- Page 1 Ultrasonic Humidifier LCD-MH-2303A User Manual Thanks for your purchase. We provide a one-year warranty. If any quality issues, replacement or refund is available. Please feel free to contact us via E-mail: info@lacidoll.com...
- Page 2 Precautions Thank you for purchasing our humidifier LCD-MH-2303A. Please read this manual carefully before using and keep it for future reference. All pictures shown are for illustration purposes onl y . Actual products may vary due to product enhancement. Scan the QR code to view the user manual and...
-
Page 3: Table Of Contents
Contents Safety Guide Components Placement Installation Water Filling Using the Aroma Box Control Panel & Remote 8-10 Care & Maintenance 11-13 Troubleshooting 14-16 Product Specifications Warranty... -
Page 5: Safety Guide
Safety Guide Only use the humidifier as described in this manual. -
Page 6: Components
Components Nozzles Top Cover Main Body LED Display Control Panel Aroma Box Safety Tank Handle Water Tank Drain Hole Sensor Water Pipe Water Viewport Water Pump Power Cord Base Main Body Inside Remote Control Water Outlet Water Overflow Port Atomizer Float Fan Outlet... -
Page 7: Placement
Placement Place the humidifier on a level, dry surface that is free from any inclinations. Ensure that it is horizontally positioned at a distance of more than 50 cm from any furniture, walls, appliances, or other items. Avoid using the humidifier in the following situations to prevent water leakage, signal jamming, damage, or injury: In direct sunlight. -
Page 8: Installation
We provide a one-year warranty. If any quality issues, replacement or refund is available. Please feel free to contact us via E-mail: info@lacidoll.com 2. For the safety of long-distance transportation, the remote control does not 1. Take the main body out of the packaging and remove the remote control and other come with batteries. -
Page 9: Water Filling
Water Filling There are two ways to add water. Fill the water tank up to the "MAX" mark indicated. Do not exceed the full water line(MAX). You can directly add water to the machine at the top grid. Lift the humidifier mainbody and add water to the water tank. -
Page 10: Using The Aroma Box
Using the Aroma Box 1. Push the aroma box at the back of the tank and pull it out. Place an aroma pad, sponge, or tissue in the aroma box. Put 2-5 drops of essential oils on the aroma pad. Insert the aroma box back into the humidifier. -
Page 11: Control Panel & Remote
Control Panel & Remote The control panel and remote control allow you to operate the humidifier with ease. Relative Humidity(RH) Percentage Indicator Water shortage Indicator imer Indicator Sleep Mode Indicator Night Light Indicator Humidity Setting Button Mist Level Button Timer Button Power Button Timer Humidity... - Page 12 Control Panel & Remote (cont.) Power Press to turn the humidifier on/off. The humidifier will start misting at the highest level. If the water tank is empty, the low water indicator will flash, and the humidifier will automatically shut off after beeping.
- Page 13 Control Panel & Remote (cont.) Max-Min The humidifier will start misting at the highest level. Press repeatedly to cycle through mist settings: Low, Medium, and High. The mist indicator on the display will light up accordingly. If there is water around the humidifier during use, it means that the humidity in the room is too high.
-
Page 14: Care & Maintenance
Care & Maintenance the humidifier instead. Daily Cleaning 1. Unplug the humidifier. 2. Remove and rinse the water tank cover / aroma box /aroma pad. 3. Remove the mainbody. Pour out any water from the tank and sink. 4. Wipe the outside of the humidifier with a damp soft cloth or sponge below 40 °C. 5. - Page 15 Care & Maintenance (cont.) Cleaning the Water Pipe If you notice mineral buildup (scale) in the water pipe, please clean it with a slim brush or contact our customer service to request a replacement. 1. Unplug the water pipe from the humidifier. 2.
- Page 16 Care & Maintenance (cont.) Note...
-
Page 20: Product Specifications
Product Specifications Ultrasonic Humidifier Product Name LCD-MH-2303A Model Number Medium High Operation Mode Rated Power Rated Voltage 120V~ Rated Frequency 60Hz Noise <35dB Tank Capacity 2.1Gal/8L 1-12 hours Timer Safety Functions Waterless auto shut-off Automatic shutdown when falling... -
Page 21: Warranty
Provide the warranty card and the order number. Describe the problems you are experiencing in detail and provide pictures or videos if possible. info@lacidoll.com Send an email to Please note that we cannot provide warranty service if you are unable to provide the above information.
Need help?
Do you have a question about the LCD-MH-2303A and is the answer not in the manual?
Questions and answers
Where does the water pipe connect?
The water pipe connects to both ends of the water pump and the main body's interface.
