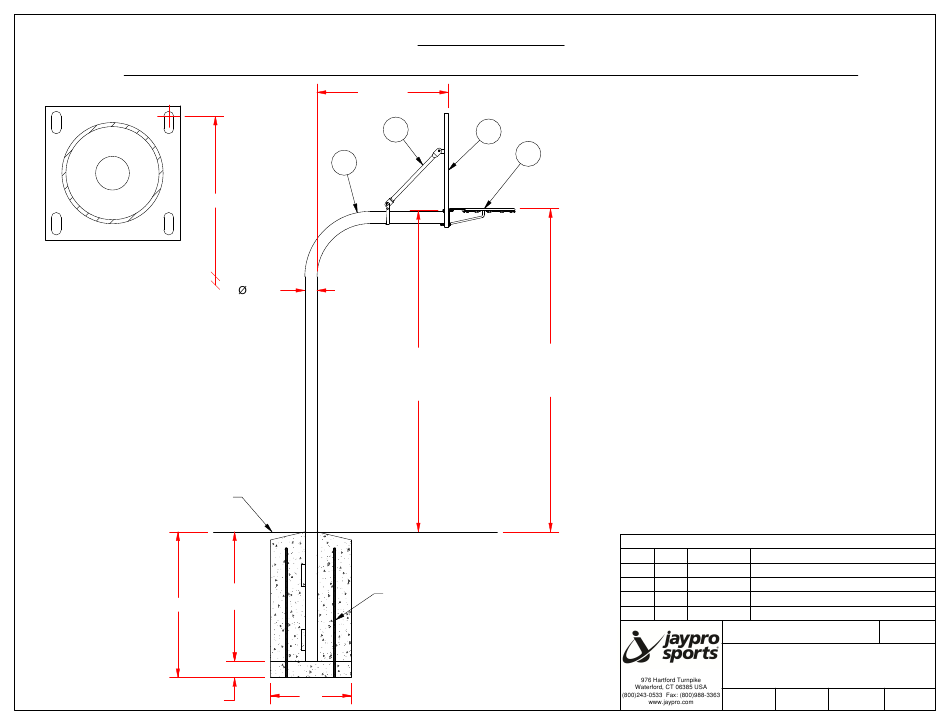

4 1/2" ROUND POST 4 FOOT EXTENSION, DIRECT MOUNT
119"
4 1/2 "
PLAYING
SURFACE
48"
REF
54"
30"
6"
MODEL 996
* 48 3/4 "
B
C
A
119"
TOP OF GOAL
CENTER OF
TO PLAYING
TOP MOUNTING HOLE
TO PLAYING SURFACE
RECOMMEND 3/4 in x 48 in (4 PLACES)
REBAR TO BE TIED TOGETHER
(TO BE SUPPLIED BY INSTALLER)
IMPORTANT NOTICE:
1) EQUIPMENT SHOULD BE CHECKED REGULARLY
FOR PROPER CONNECTING HARDWARE AND
STRUCTURAL INTEGRITY. REPLACE ANY DAMAGED
D OR MISSING HARDWARE IMMEDIATLEY.
2) USE OF THE EQUIPMENT OTHER THAN INTENDED,
MAY BE HAZARDOUS.
3) ALTERATION OR MODIFICATION OF THIS
EQUIPMENT MAY BE HAZARDOUS AND RESULT IN
INJURY. FOR REPAIR OR REPLACEMENT, CONTACT
JAYPRO SPORTS.
* ACTUAL DIMENSION MAY VARY
DEPENDING ON CHOICE OF
BACKBOARD USED.
CHECK LOCAL BUILDING CODES
BEFORE STARTING THE FOOTING,
AS BUILDING CODES MAY VARY.
10'-0"
LOCAL BUILDING CODES SHOULD
BE ADHERED TO IF REQUIREMENTS
ARE GREATER THAN THOSE
SURFACE
OUTLINED HERE.
NOTES:
1) BACKBOARD VARIES PER CUSTOMER ORDER.
FOR CUSTOMERS WHO ORDERED BRACES FOR
THEIR FAN BOARDS (ALB-24BT) SEE LAST PAGE.
2) GOAL VARIES PER CUSTOMER ORDER.
3) HARDWARE KIT 996BK INCLUDES BRACES,
BRACKETS & BAND CLAMP FOR ALL UNITS.
ITEM QTY
A 1
B 1
C 1 SEE NOTE 1
D 1 SEE NOTE 2
Typical Parts List for 996 Units
PART # DESCRIPTION
996U GOOSENECK UPRIGHT
996BK HARDWARE KIT
BACKBOARD
GOAL
MODEL NUMBER: CHECKED BY:
996
PRODUCT NAME:
996 INSTALLATION INSTRUCTIONS
DATE: REV: DRAWN BY:
-
10/29/2019 Moune T.
WVB
SHEET:
1 OF 5
