Summary of Contents for MoCA DualGig-2.5/SAT
- Page 1 DualGig-2.5/SAT Ethernet over Coax adapter Installation Instructions...
-
Page 2: Table Of Contents
What is in the Box?............2 DualGig-2.5/SAT Connections ........3 Telecom and Fibre Subscribers .. -
Page 3: Quickstart Dualgig-2.5/Sat Internet Over Coax Adapter
QuickStart DualGig-2.5/SAT Internet over Coax adapter QuickStart manual (2 Adapters) Connect your 1e MoCA Adapter (with your Router) Connect LAN1 or LAN2 of your MoCA Adapter with your Router • Connect the Power Supply and push the ON/OFF Button (the Blue LED ‘PWR’ is activat- Connect both MoCA Adapters with the Coax cable •... -
Page 4: What Is In The Box
F-male/F-male Fly lead 60 cm * Products supplied may differ from images shown, they are functionally the same MoCA-2.5 adapters can also be offered per 2 pieces in 1 box with a double set of accessories Installation Instructions DualGig-2.5/SAT 20210520... -

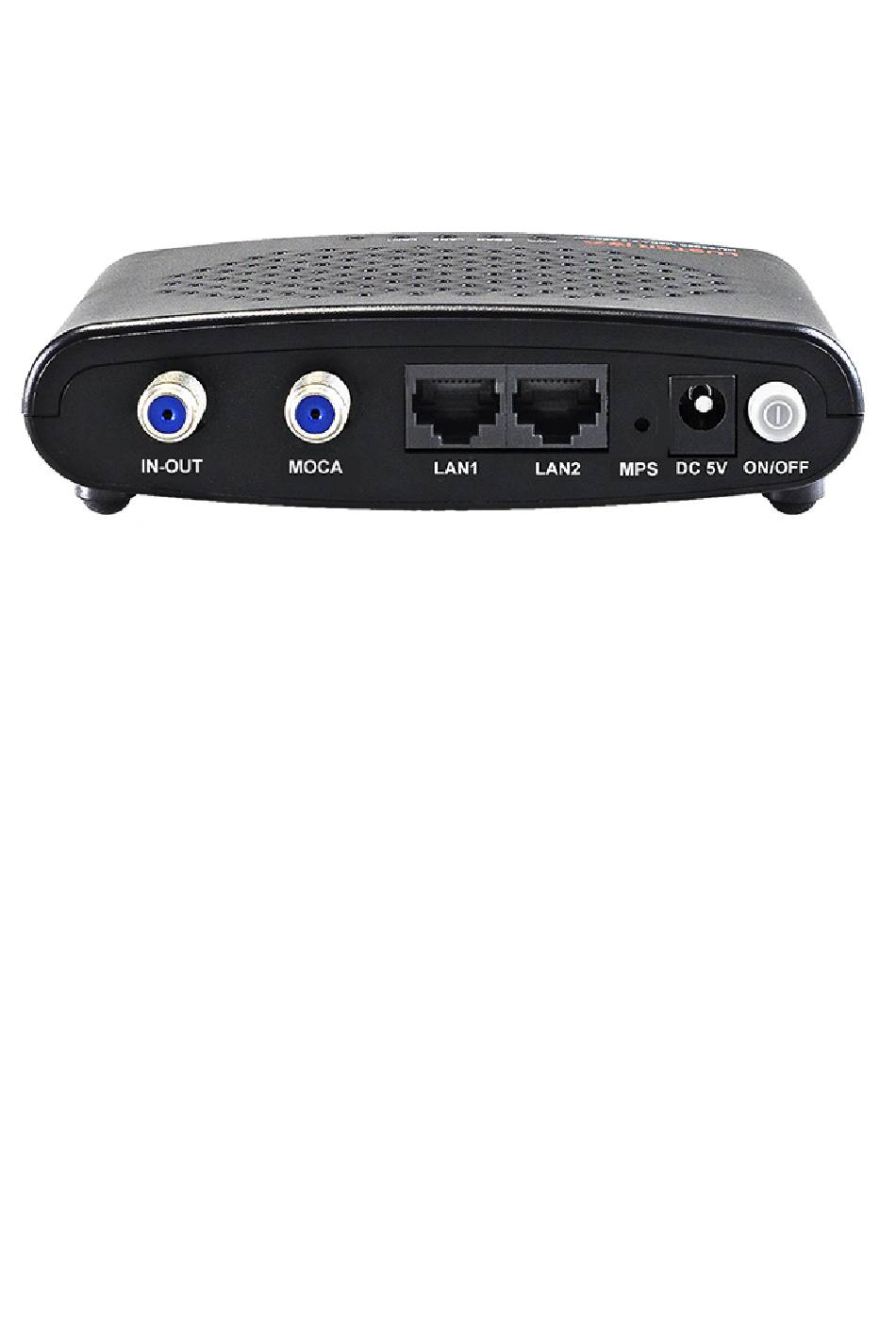

Page 5: Dualgig-2.5/Sat Connections
DualGig-2.5/SAT Connections Reset Installation Instructions DualGig-2.5/SAT 20210520... -
Page 6: Telecom And Fibre Subscribers
Adapter (to the Router) • Connect one of the free LAN Ports of your Cable modem with a Network ® cable and connect that Cable to LAN1 or LAN2 of your MoCA Adapter. • • Take the Coax Cable intended to connect direct or indirect with your 2nd ®... - Page 7 Adapters with your Cable Modem using either the LAN1 or LAN2 Port ® • Connect your Laptop either with LAN1 or LAN2 of the other MoCA Adapt- • Run a Speed test and compare the result with the data speed of your Internet subscription.
-
Page 8: Mps (Moca ® Protected Setup) Explained
MPS (MoCA Protected Setup) explained ® ® MPS stands for MoCA Protected Setup. MPS is a User friendly way to protect your network with a unique Password. This funtion is disabled for the MoCA-2.5/SAT Installation Instructions DualGig-2.5/SAT 20210520... -
Page 9: Moca-2.5/Sat With Your Satellite Installation
MoCA-2.5/SAT adapters 1. Use Wall Outlets that pass DiSECq sig- nal and offer a separate TV port 2. Use a Multiswitch with a Terrestrial input Alternatively you can also connect a MoCA adapter to the Terrestrial input Installation Instructions DualGig-2.5/SAT 20210520... -
Page 10: Setting Of The Moca Adapter
Setting of the MoCA adapter ® The MoCA Adapters come in a plug and play condition. If you may choose to make changes to the network adapter, changes can be made on the Web menu by following the instructions as illustrated below. -
Page 11: Menu Settings
In general search for other adapters starts at the LOF (lowest frequency). 3. LOF (lowest frequency). This function has no meaning for the MoCA-2.5/ SAT model as the adapters only work in the full E-band. - Page 12 2. IP configuration. Here you can select the static IP address or select the DHCP option in which case your router will assign an IP address to the adapter. 3. MoCA Telnet. Keep the default setting set to ‘Enable’. Installation Instructions DualGig-2.5/SAT 20210520...
- Page 13 2. Network security setup. You may choose to give each frequency band its own Password to enable only those adapter to connect that have the same Password. Changing the Password take effect after a save en reboot the adapter. Installation Instructions DualGig-2.5/SAT 20210520...
- Page 14 You can monitor the satus of the adapter on this Page. PHY Rates You can monitor the data rates between the adapters on this Page. These are the so called data rates at the Physical Layer (OSI Layer 1) between the adapters. Installation Instructions DualGig-2.5/SAT 20210520...
- Page 15 If there is a new Firmware upgrade available first download the new Firmware on your computer. Then upload the file by choosing the ‘Choose File’ option. The new Firmware takes effect after a Reboot. Reboot After every change go to save + Reboot to take effect permanent. Installation Instructions DualGig-2.5/SAT 20210520...
-
Page 16: Hints En Tips
2nd MoCA® adapter directly onto the TV output of that outlet. Can a MoCA® adapter be connected before the input of an amplifier? No, a MoCA® signal does not travel through an amplifier (from input to out- put). MoCA® adapters must be connected behind the amplifier. - Page 17 You also have an advantage if, for example, you only have 1 LAN port left on your cable modem to connect the 1st MoCA® adapter. Then connect that 1st MoCA® adapter to it and a LAN port will become available again on the 2nd LAN port of the MoCA® adapter.
-
Page 18: Specifications*)
Bundled, 100 MHz Band width Standard Band default 400 - 700 MHz Max Transmission power + 3dBm (+2 dBm typical) Input Sensitivity - 70 dBm Attanuation MOCA to In-Out < 2 dB MOCA input Frequency 5-2400 MHz IN-OUT Frequency 950-2400 MHz Throughput... - Page 20 Vivaldistraat 4 3816VM Amersfoort The Netherlands mail@cablehome.nl...
