Quick Installation Guide

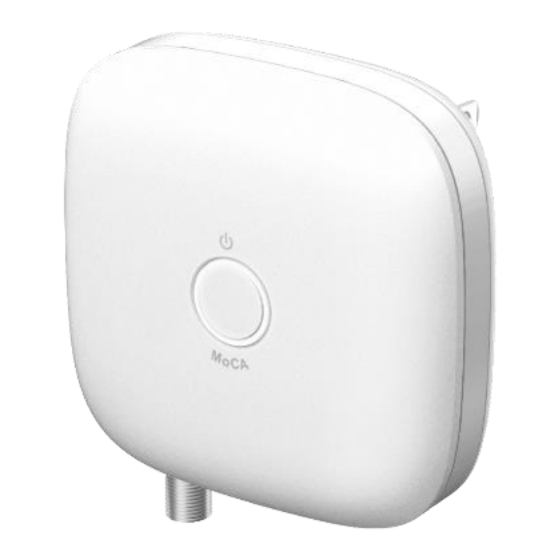

The KMC1000 is a high-speed bridge that in conjunction with router, delivers
Ethernet networking access anywhere you have a coaxial port.
MoCA technology guarantees the distribution of HD and ultra-HD content
around the home over coax. With support for the latest MoCA 2.0
standard, the KMC1000 delivers wired speeds up to 500 Mbps, more than
enough bandwidth for HD video, online gaming, and other demanding
applications. You get the reliability and performance of a wired connection
over coax, without the expense of wiring the home for Gigabit Ethernet.
1
1. Front Panel
Off
The MoCA adapter is powered off.
1
POWER
On
The MoCA adapter is powered on.
Off
The application is loading, or MoCA link downed.
Flashing
The MoCA adapter is activated.
2
MoCA
Green On
The MoCA link up.
The initialization is not started, or has failed.
Red On
1
POWER
2
MoCA
2
Advertisement
Table of Contents
Related Manuals for MoCA KMC1000
Summary of Contents for MoCA KMC1000
- Page 1 1. Front Panel POWER MoCA Quick Installation Guide The KMC1000 is a high-speed bridge that in conjunction with router, delivers Ethernet networking access anywhere you have a coaxial port. The MoCA adapter is powered off. POWER MoCA technology guarantees the distribution of HD and ultra-HD content The MoCA adapter is powered on.
- Page 2 Or Plug the Ethernet Cable into an open Ethernet Port on the back of the Modem/Router. Then connect a coaxial cable from the RESET Coax port on your MoCA adapter router to a Wall Coaxial Outlet. CABLE IN AC Plug AC Plug Connects the unit to AC 110V power.
- Page 3 5. Specification Add another MoCA adapter to the HDTV, set top box or other device. BCM6803 Main Chipset (MIPS-M4K@200MHz, 384KB IRAM, 128KB DRAM, 32KB shared memory) Memory Flash: 8MB SPI (NOR) MoCA 2.0 Coaxial Ethernet Spec Cable Cable (Interoperability to MoCA 1.1 / MoCA 1.0)
