1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the MC-35EZEZDWN1, part of the Charles Industries Modular Cabinet series. Figure 1
shows a closed front view of the enclosure.
Hereafter, the Charles Modular Cabinet, MC-35EZEZDWN1 will be referred to as the "MC."

1.2. Product Purpose

The MC consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and copper
interfaces. This cabinet is part of Charles Industries' line of Modular Cabinets. The modular enclosures can combine multiple bays to
support a variety of applications.

1.3. Product Mounting and Location

This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant MC is to be mounted on a steel grate platform. The installer connects the power, fiber, and copper connections. Detailed mounting
and installation information is covered in Section 3.
©Copyright 2024 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Modular Cabinet
MC-35EZEZDWN1
General Description and Installation

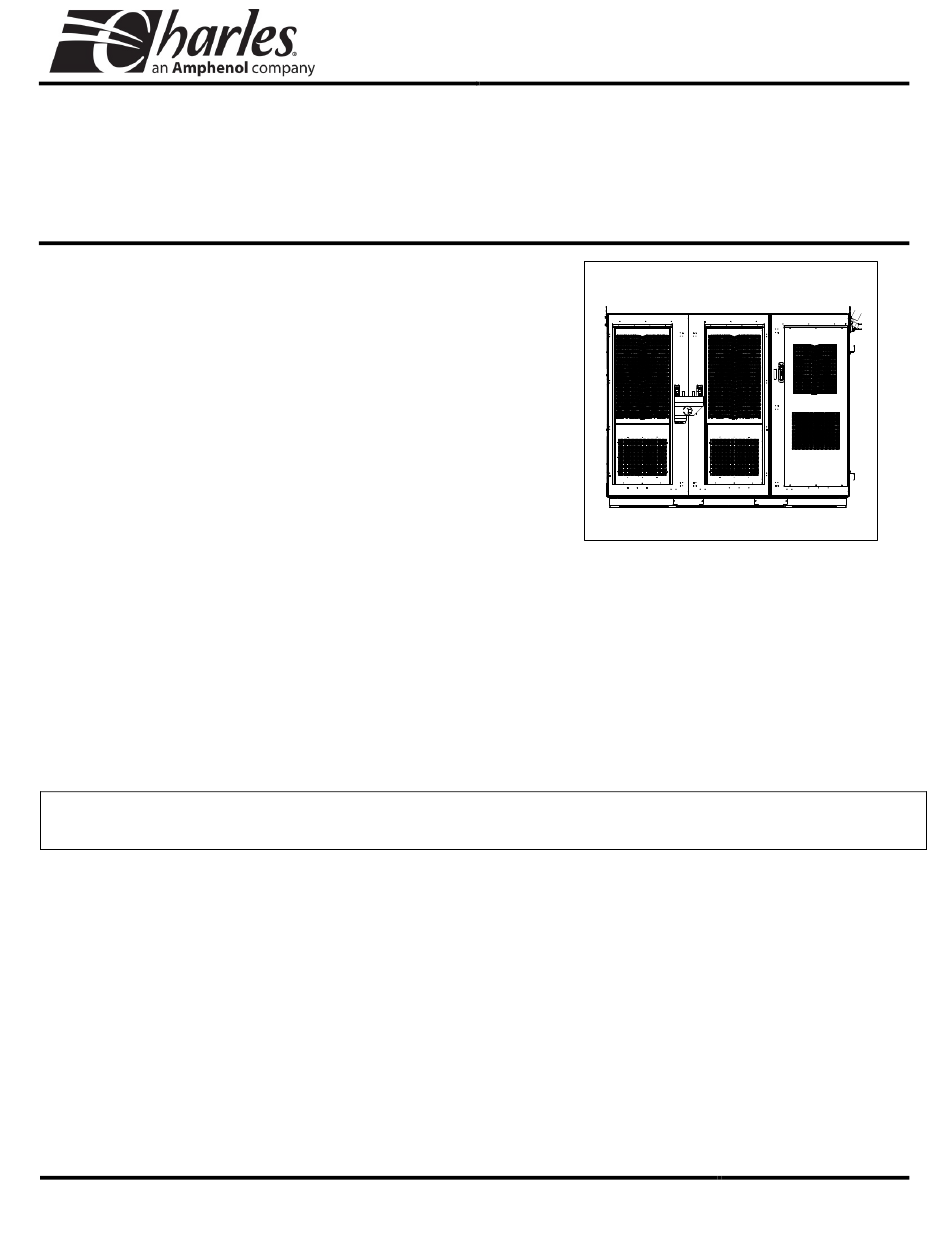

Figure 1
-NOTE-
LT-MC35EZEZDWN1
2
nd
Printing, May 2, 2024
Front View of the MC
Page 1 of 11
