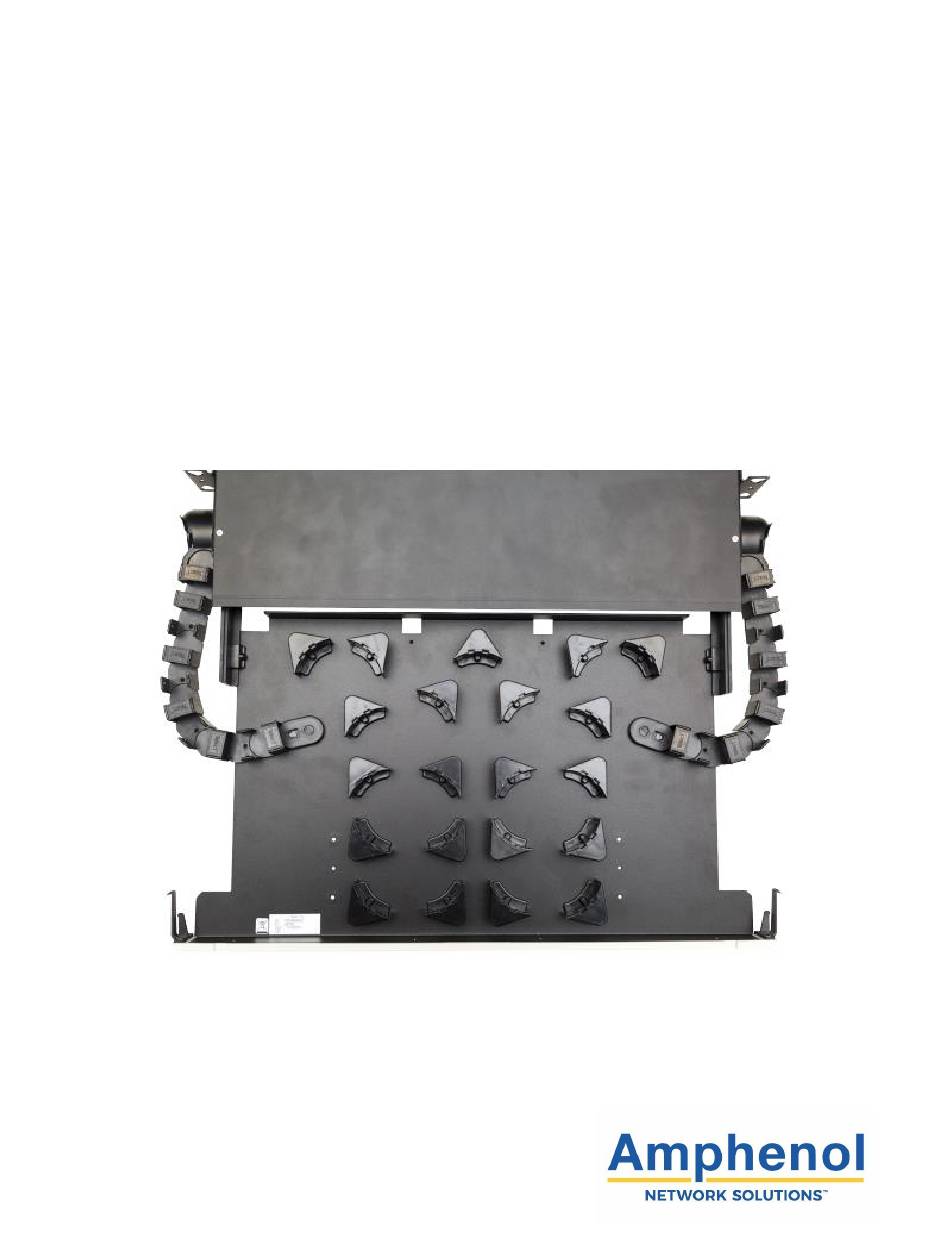

- Page 1 Fiber Storage Tray Routing Guide Amphenol Network Solutions E-Series Storage Tray...
- Page 2 Fiber Storage Tray Routing Guide Fiber :: Amphenol Network Solutions E-Series Storage Tray This document shows various routing methods for 3-6 ft slack lengths. Either the left set or right set of bend radius managers may be used to take slack.
- Page 3 NOTE: Some slack is required outside of the storage tray to avoid placing strain on the fiber 0’ 3’ 1’ 2’ 0’ K1 links K1 links Amphenol Network Solutions E-Series All rights reserved. 03.31.2021 E-Series Routing Guide v2 509.926.6000 — amphenol-ns.com...
- Page 4 0’ 2’ 4’ 1’ 3’ 5-ft (or slightly less) slack – Pass through - 24 x 1.6mm jumpers shown 0’ 5’ 1’ 4’ 3’ 2’ Amphenol Network Solutions E-Series All rights reserved. 03.31.2021 E-Series Routing Guide v2 509.926.6000 — amphenol-ns.com...
- Page 5 0’ 5’ 1’ 4’ 3’ 2’ 6-ft slack – Pass through - 24 x 2.0 mm jumpers shown 0’ 6’ 5’ 1’ 4’ 3’ 2’ Amphenol Network Solutions E-Series All rights reserved. 03.31.2021 E-Series Routing Guide v2 509.926.6000 — amphenol-ns.com...
