Schmidt BAABS G3 Assembly

Swivel strap
Hide thumbs

Advertisement

Quick Links

Download this manual

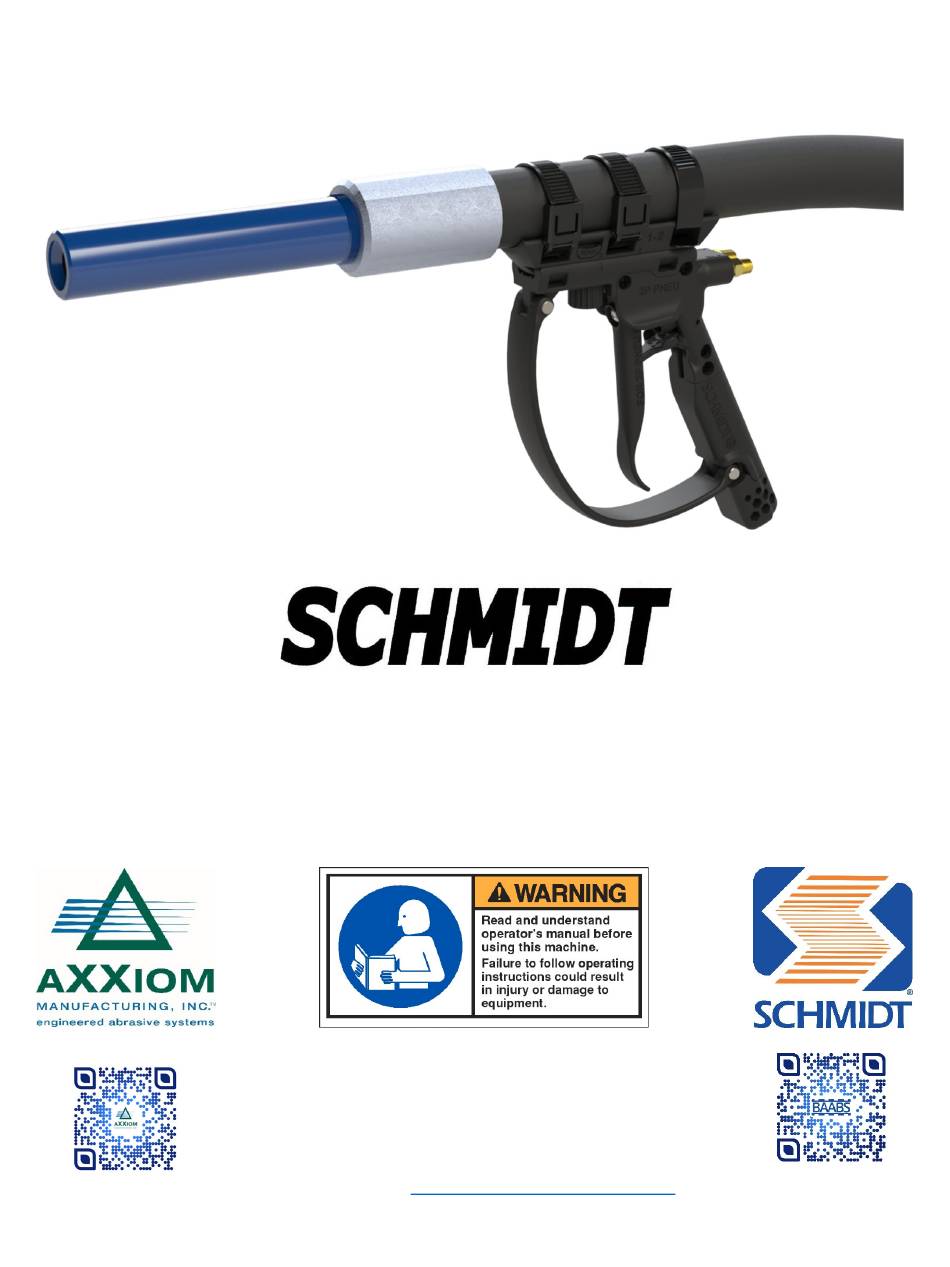

BAABS G3 Swivel Strap Assembly
October 2024
SAVE THIS MANUAL AND MAKE AVAILABLE
TO ALL USERS OF THIS EQUIPMENT!
Manual Part Number 7200-372
Copyright © 2024 Axxiom Manufacturing, Inc.
11927 S. Highway 6, Fresno, Texas 77545
800.231.2085 * 281.431.0581 * fax 281.431.1717
Visit us at
www.AxxiomMfg.com
BAABS G3
Axxiom
Swivel Strap
Manufacturing
See back cover for additional BAABS links
Assembly
Website
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAABS G3 and is the answer not in the manual?

Questions and answers

Related Manuals for Schmidt BAABS G3

Summary of Contents for Schmidt BAABS G3

  • Page 1 BAABS G3 Swivel Strap Assembly October 2024 SAVE THIS MANUAL AND MAKE AVAILABLE TO ALL USERS OF THIS EQUIPMENT! Manual Part Number 7200-372 Copyright © 2024 Axxiom Manufacturing, Inc. 11927 S. Highway 6, Fresno, Texas 77545 800.231.2085 * 281.431.0581 * fax 281.431.1717 Visit us at www.AxxiomMfg.com...
  • Page 2 Do Not modify or alter any abrasive blaster, blast equipment or controls thereof without written consent from Axxiom Manufacturing, Inc. Do Not use bleeder type deadman valves on any Schmidt® abrasive blaster. The use of A-BEC, Clemco or a similar bleeder type deadman valve can cause unintentional start- up without warning, which can result in serious personal injury.
  • Page 3 KNOW YOUR EQUIPMENT. Do Not operate this equipment in a manner other than its intended application. Do Not operate this equipment or any other Schmidt® equipment without following the Rules for Safer Operation and all the operating procedures and instructions. Learn the applications and limitations as well as the specific potential hazards related to this machine. Failure to do so could result in serious injury or death.

  • Page 4: Specifications And General Information

    2.0 Specifications and General Information The BAABS G3 Swivel Strap Assembly mounts the G3 Trigger Deadman directly to the blast hose. It allows the G3 Trigger Deadman to easily swivel around the blast hose to maintain a comfortable hand position.
  • Page 5 G3 Swivel Strap Removal Without Tool G3 Swivel Strap Assembly Installation Do Not alter or make modifications to the BAABS G3 Swivel Strap Assembly. Making alterations or modifications can cause equipment malfunction which can lead to severe injury or death.
  • Page 6 Figure 3.2 - Chart to Determine Correct BAABS G3 Swivel Strap Adapter Size Figure 3.3 – Matching BAABS G3 Swivel Strap Adapter with Nozzle Holder Size Copyright © 2024 Axxiom Manufacturing, Inc.
  • Page 7 Deadman (#8) above the locking knob (#9) with the forward most hash mark on the G3 Swivel Strap Adapter (#5). (See Figure 3.4) 3.3.4 Hand tighten the locking knob (#9). Remove (Uninstall) BAABS G3 Swivel Strap Adapter Assembly (#4) from blast hose (#3). 3.4.1 Disconnect twinline or electrical connection from G3 Trigger Deadman (#8). 3.4.2 Loosen the locking knob (#9) to remove G3 Trigger Deadman (#8) from the G3 Swivel Strap Adapter rail (#5).
  • Page 8 G3 Swivel Strap Assembly with damaged or incorrect components can result in equipment failure or malfunction which can cause severe injury or death. Always check the blast hose and the BAABS G3 Swivel Strap Assembly for damage before each use. Repair or replace any component that shows any sign of wear or other damage.
  • Page 9 4.2.2 Turn off or disconnect the power source from the blast system and unplug the existing deadman from the blast controls. 4.2.3 Secure the G3 Trigger Deadman (#8) to the BAABS G3 Swivel Strap Adapter rail (#5) if not previously attached. See Figure 3.4...
  • Page 10 5.0 Standard Operation Two position Trigger Deadman (2PP shown) G3 Trigger Deadman (2PP or 2PE) Operation Securely grip G3 Trigger Deadman (#8) The blast hose (#3) should be on the same side as the hand that is gripping the G3 Trigger Deadman (#8), such as between the arm and torso.
  • Page 11 Refer to Hose Inspection video link below. 6.1.1 Remove BAABS G3 Swivel Strap Assembly (#4) from blast hose (#3) and disconnect electric or pneumatic connections daily. See Section 3.4 for removal procedure. 6.1.2 Inspect blast hose (#3). If the blast hose is frayed, replace the blast hose, or cut back to good hose. (See Figure 6.1) Figure 6.1...
  • Page 12 7.0 BAABS G3 Swivel Strap Assemblies Figure 7.1 Copyright © 2024 Axxiom Manufacturing, Inc.
  • Page 13 8.0 G3 Trigger Deadman Assemblies Figure 8.1 Copyright © 2024 Axxiom Manufacturing, Inc.
  • Page 14 Figure 8.2 G3 Trigger Deadman Control Module 2PP Figure 8.3 G3 Trigger Deadman Control Module 2PE Copyright © 2024 Axxiom Manufacturing, Inc.

  • Page 15: Troubleshooting

    9.0 Troubleshooting Pneumatic G3 Trigger Deadman Electric G3 Trigger Deadman (Refer to Figures 8.1 and 8.2) (Refer to Figures 8.1 and 8.3) 9.1 Air Leaks from the Trigger Deadman Control Module (2PP only): 1. Defective cartridge assembly (#9). Replace cartridge assembly.

  • Page 16: Warranty Policy

    SCHMIDT 11.2 Warranty Policy 1. All SCHMIDT products are guaranteed to be free of defects in material and workmanship at time of shipment. Axxiom Manufacturing, Inc. warrants its products against defects in material and workmanship under normal and proper use for a period of ninety (90) days from the date of delivery.
  • Page 17 Invoices covering such merchandise will clearly state the provisions of the applicable warranty for each specific transaction. 12. USE OF NON-ORIGINAL SCHMIDT® FACTORY REPLACEMENT PARTS ON ANY SCHMIDT EQUIPMENT VOIDS ALL WARRANTIES. 13. AXXIOM MANUFACTURING, INC.
  • Page 18 Schmidt®, the stylized “S” logo, Axxiom®, Thompson®, Microvalve®, MV2®, MV3®, Teravalve™, Combovalve®, and Ergo-Ladder® are registered trademarks owned by Axxiom Manufacturing, Inc. Use of the Schmidt, the stylized “S” logo Axxiom, Thompson, Microvalve, MV2, MV3, Teravalve, Combovalve, and Ergo-Ladder trademarks without the written consent of Axxiom Manufacturing is strictly prohibited.
  • Page 19 NOTES Copyright © 2024 Axxiom Manufacturing, Inc.
  • Page 20 Additional Helpful BAABS Links Blasting Blasting in Blasting BAABS BAABS Stances tight spaces Demonstration Products Demonstration Visit us at www.AxxiomMfg.com Copyright © 2024 Axxiom Manufacturing, Inc.
