Summary of Contents for Honda CVM5806Z

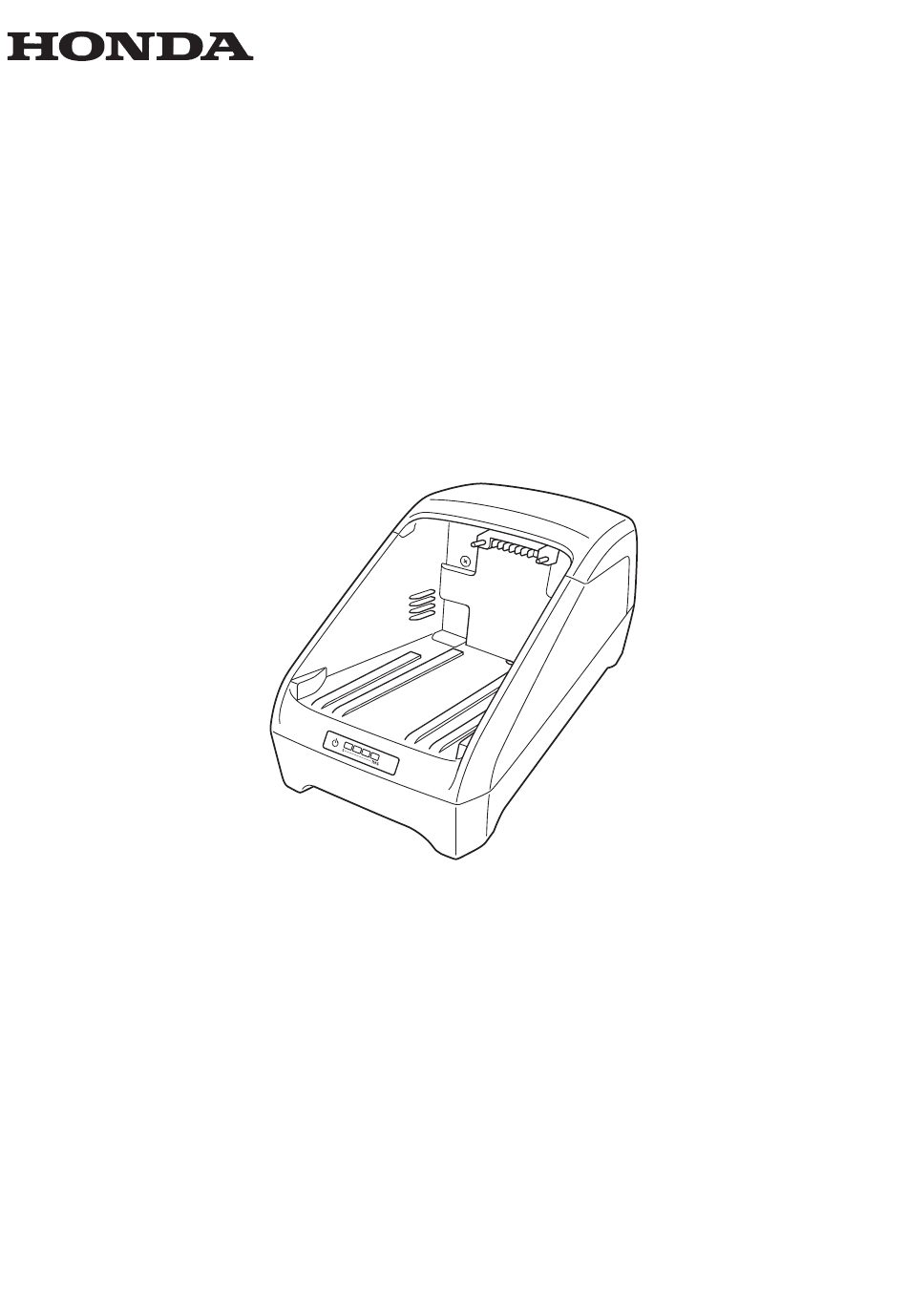

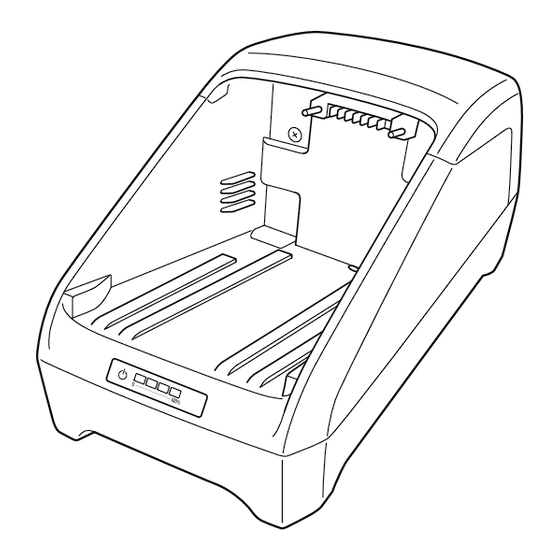

- Page 1 Honda Power Pack Charger e: CVM5806Z OWNER’S MANUAL ©2023 Honda Motor Co., Ltd. –All Rights Reserved CVM5806Z 3270E600 00X32-70E-6000...
-
Page 2: Table Of Contents
This charger is exclusively for charging the Honda Mobile Power IDENTIFICATION OF CHARGER ............. 4 Pack e:. It cannot charge the “Honda Mobile Power Pack”. Do not COMPONENT & CONTROL LOCATIONS ..........5 use it for any purpose other than charging the “Honda Mobile BEFORE CHARGING .................. -
Page 3: Prohibitions When Using The Charger
• This appliance is not intended for use by persons (including • Do not drop the charger or AC cable or subject them to children) with reduced physical, sensory or mental capabilities, excessive physical shock or lack of experience and knowledge, unless they have been –... -
Page 4: Safety Label Location
SAFETY LABEL LOCATION IDENTIFICATION OF CHARGER PRODUCT LABEL Safety labels are affixed to the charger for your instruction so that it is used safely. Carefully read these safety labels and the safety precautions in this manual. BATTERY TRAY DIRECTION LABEL [10] BOTTOM OF CHARGER [1] Model... -
Page 5: Component & Control Locations
COMPONENT & CONTROL LOCATIONS BEFORE CHARGING BATTERY TRAY WHERE TO CHARGE OUTPUT TERMINAL Charge the mobile power pack in the following locations. • Level location indoors where the charger is stable • Well ventilated location with low humidity Charging temperature range: -10 to 40 °C However, charging may stop depending on the temperature of the mobile power pack in environments below 0 °C. -
Page 6: Charger Installation
CHARGER INSTALLATION CHARGING PROCEDURE • Install indoors in a level and stable location. CHECK BEFORE CHARGING • Do not install on a surface that slopes more than 10°. Also, do not install the charger on its side or back. Doing so could cause Before you start charging, check the following points. -
Page 7: Procedure After Charging
5. Gently push the mobile power pack in until it hits the bottom HOW TO READ INDICATORS of the battery tray. Do not push the mobile power pack in forcefully. Doing so could cause damage to the output terminal. MOBILE POWER PACK POWER INDICATOR CHARGE LEVEL INDICATOR POWER INDICATOR... -
Page 8: Charge Level Indicator
CHARGE LEVEL INDICATOR Temperature protection function When the charger or the mobile power pack temperature is high The charge level indicator shows the charge level of the mobile and the temperature protection function is activated, the power power pack that is inserted. indicator flashes in red and charge level indicator turns on as It also shows the states of the charger or mobile power pack follows:... -
Page 9: Cleaning
CLEANING TRANSPORTING • When cleaning, always unplug the plug from the electric outlet and disconnect the AC cable from the charger. • Use a soft dry cloth to clean the exterior of the charger and the Do not drop or subject the charger to excessive AC cable. -
Page 10: Troubleshooting
Carrying by vehicle TROUBLESHOOTING • Remove the mobile power pack from the charger. If a problem is not resolved or the symptoms do not improve, • Place the charger in a level location in the vehicle or cargo area, consult your servicing dealer. and secure it so it does not move. -
Page 11: Specifications
SPECIFICATIONS Model CVM5806Z Type Description code CAAGY Length* 434 mm Width* 244 mm Height* 227 mm Weight* 5.3 kg Cooling method Forced air cooling Charging Rated charging 58 V voltage Rated charging 6.75 A current Rated charging 270 W power...
