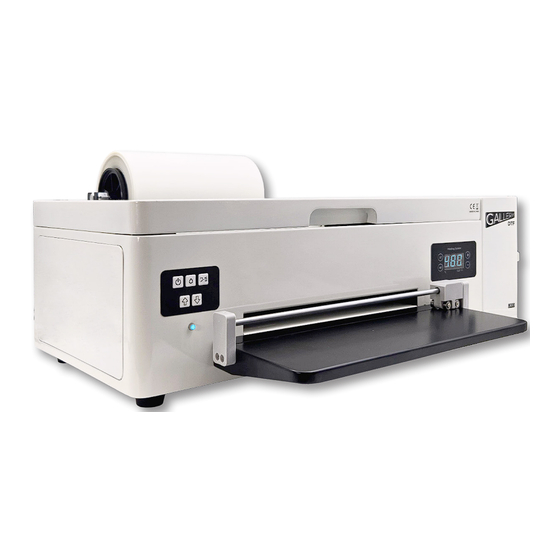

GALLERY L800
DTF Printer User Manual
V. 1.5 October 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the L800 and is the answer not in the manual?

Questions and answers

Related Manuals for GALLERY L800

Summary of Contents for GALLERY L800

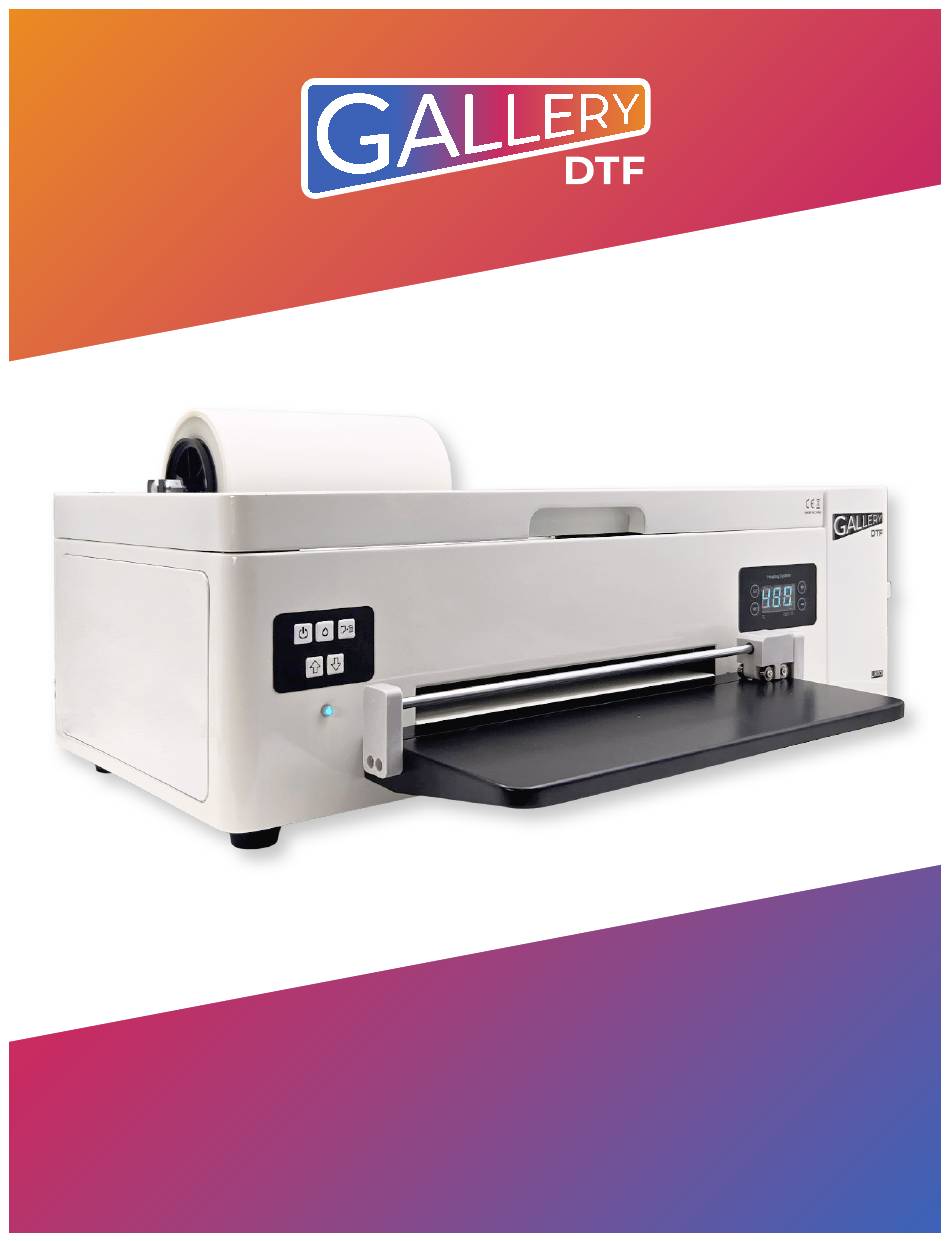

  • Page 1 GALLERY L800 DTF Printer User Manual V. 1.5 October 2024...

  • Page 2: Overview Of Main Components

    Overview Of Main Components: Front Left Front Right Control Panel Control Panel Front Exit Tray LED To Monitor To attach, loosen the screws on front of printer. White Ink Circulation Align the holes in the tray with screws on printer, and re-tighten screws Front Left Control Panel The front left control panel has five buttons:...
  • Page 3 Overview Of Main Components (Continued): LED To Monitor White Ink Circulation LED To Monitor White Ink Circulation The front left side of the printer has an LED to show ink circulation status BLUE = All parts of the ink circulation system are active and functioning correctly. Blinking shows that head cleaning is actively occurring.
  • Page 4 Setting Up Your Gallery L800 DTF Printer: Step 1 Remove the zip tie next to the printhead. Step 2 Attach the waste ink bottle holder to the back of the printer. Attach empty bottle to waste ink line. Step 3 Screw the left and right film roller brackets to the back of the printer.
  • Page 5 Setting Up Your Gallery L800 DTF Printer (Continued:) Step 5 Cut film edge to be exactly perpendicular to the film sides so that the film will feed in straight. Step 6 Place film into printer and press Exit (Forward) button on front control panel to pull film through the printer.
  • Page 6 5. Enter your code and customer information. Follow the on-screen prompts. 6. You will require this code whenever referencing your product with the manufacturer or dealer you purchased it from. ACTIVATION CODE: P1234 5678 9012 34 GALLERYCARD-091123 Continue To Next Page To Complete Gallery L800 Printer Set Up...
  • Page 7 Setting Up Your Gallery L800 DTF Printer Continued: Step 8 Once software is installed, load a test file and try to print it. Observe that the printhead moves back and forth many times, the film advances and the front control panel blinks green while printing and goes solid green shortly after printing ends.

  • Page 8: Frequently Asked Questions

    A: Prints properly stored should be able to be used up to a year from when they were created. Q: What is the shelf life of the inks? A: CMYK inks perform best when used within 9-12 months. Gallery bottles show date information. White ink performs best when used within 6-9 months. Gallery bottles show date information.

  • Page 9: Troubleshooting

    With the above checked, in the RIP software, try running a head clean to see if the printer responds. Red LEDS Flash In An Alternating Fashion This indicates that the waste ink counter has reached its maximum limit. In an upcoming release of Gallery DTF the counter will be reset within Gallery DTF RIP software under: Devices->ManageDevices->DeviceProperties->ResetInkWastePadCounter.
  • Page 10 Congratulations On Your Purchase Of The Gallery L800 DTF Printer. In order to get maximum benefit from your printer, please familiarize yourself with the printer and its functions. galleryprinters.com/manuals...
