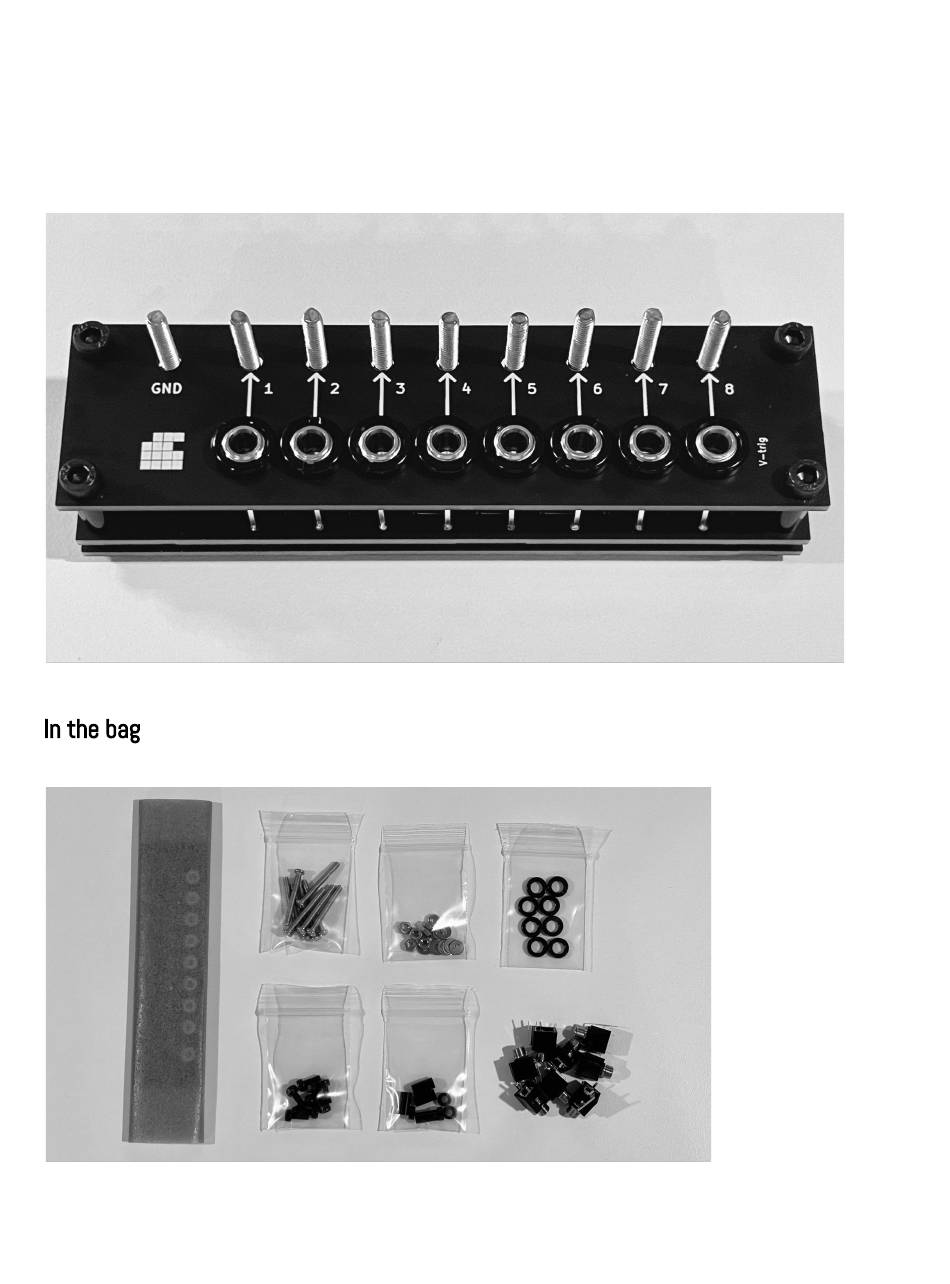

- Page 1 8-GATES build guide by jroo In the bag...
- Page 2 ● Panels & PCB ● Five bags (poles, pole nuts/washers, spacers, panel screws, jack nuts) ● 8 jacks Materials ● 1 top panel ● 1 PCB ● 1 bottom panel ● 9 pole screws ● 9 pole nuts ● 9 pole washers ●...
- Page 3 Take PCB, 2 short spacers, 2 long spacers and 2 panel screws and attach them to opposite corners of the PCB as shown. The short spacer will be on the bottom side of the PCB and the long spacer on the top side. Add 8 jacks to top side of PCB (where long spacers are) but do not solder them yet.
- Page 4 Keep jacks in place by placing the top panel on top of them and tightening the panel with two more panel screws. Turn everything upside down to where the bottom of the PCB is showing and solder the jacks to the PCB...
- Page 5 Remove spacers, panel screws and top panel Step 2: Add poles Add a washer to each of the 9 pole screws Add all 9 poles to the PCB by inserting them through the bottom, pointing up in the direction the jacks point...
- Page 6 Add hex nut to each of the nine poles on the top side of the PCB and tighten with fingers. Tighten further with an M3 wrench or pliers and a screwdriver. Holding the nut with pliers can result in slipping and scratching the PCB. If you go this route, it’s highly recommended that you put tape around the metal on the pliers to decrease the odds of scratching the PCB! Step 3: Add spacers and panels...
- Page 7 Orient the bottom panel to where the jroo music machines logo is on the left and facing down and not visible. Orient the PCB to where from your perspective jacks are below screws and rest the PCB...
- Page 8 Add the top panel and with your fingers, screw four more panel screws into the long spacers through the holes of the top panel With the flat side of the nut facing down and the notches up, add and hand tighten the 8 jack nuts to each of the jacks...
- Page 9 Congratulations! You’re all set. If you run into any trouble, be sure that you soldered correctly, the nuts for the poles are tight and that you follow the troubleshooting advice in the 8-GATES manual. Thanks and enjoy. https://jroo.co/products/8-gates Designed and packaged in Canada ©2024...
