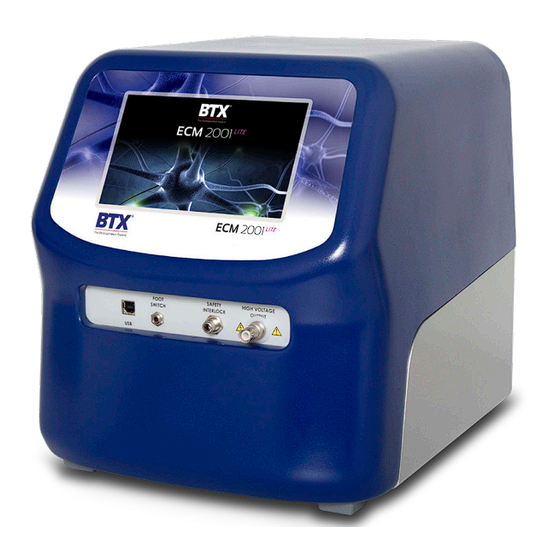

Harvard Bioscience ECM 2001 LITE Quick Start Manual

Electrofusion &
Electroporation System
Quick Start Guide
Unpacking the System
Your ECM 2001 LITE System is packed in a shipping carton that is
specifically designed to provide maximum protection to the instrument
during transportation and normal handling conditions. Upon receipt,
the carton should be examined for any external damage resulting from
shipment.
Open the carton and carefully remove the ECM 2001 LITE System and
inspect the unit for any apparent damage. Save the carton and packing
materials for future transportation and shipping requirements.
Packing Data
Check the packing slip to ensure that all items ordered and listed are
included in the shipment. Inform BTX immediately if any parts are
missing or damaged.
Power Source
As received, the instrument is ready for use with 100–240 VAC, 50/60 HZ.
The power requirements are 350 watts. In the USA, the power cord has
a standard three-prong plug.
Installation
Once you have determined that the components of the system have
not sustained any obvious damage in shipment, proceed with the
installation.
Place the generator in a location that is a dry, level, sturdy surface free
from extremes in ambient temperature, dust or chemical exposure.
Allow the device to equilibrate to room temperature.
Remove the battery insulating tab from the battery holder at the
bottom of the unit.
Connect the mains/power cord into the back panel.
Power up the system by pushing the rocker switch located on the back
panel. The display will show the Splash Screen with BTX and ECM 2001
LITE logos during software initialization. Once the software initializes,
the Electrofusion Main Menu will appear.
You are now ready to begin your work.
BTX ECM 2001 LITE Quick Start Guide • www.btxonline.com
Download full user's manual at:
Splash Screen
Remove Battery Insulating Tab
Back Panel
