3500

RINT

Ceramic Decal Printer

User Manual

Version 3.2

Table of Contents

Need help?

Do you have a question about the CERPRINT 3500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosetta CERPRINT 3500

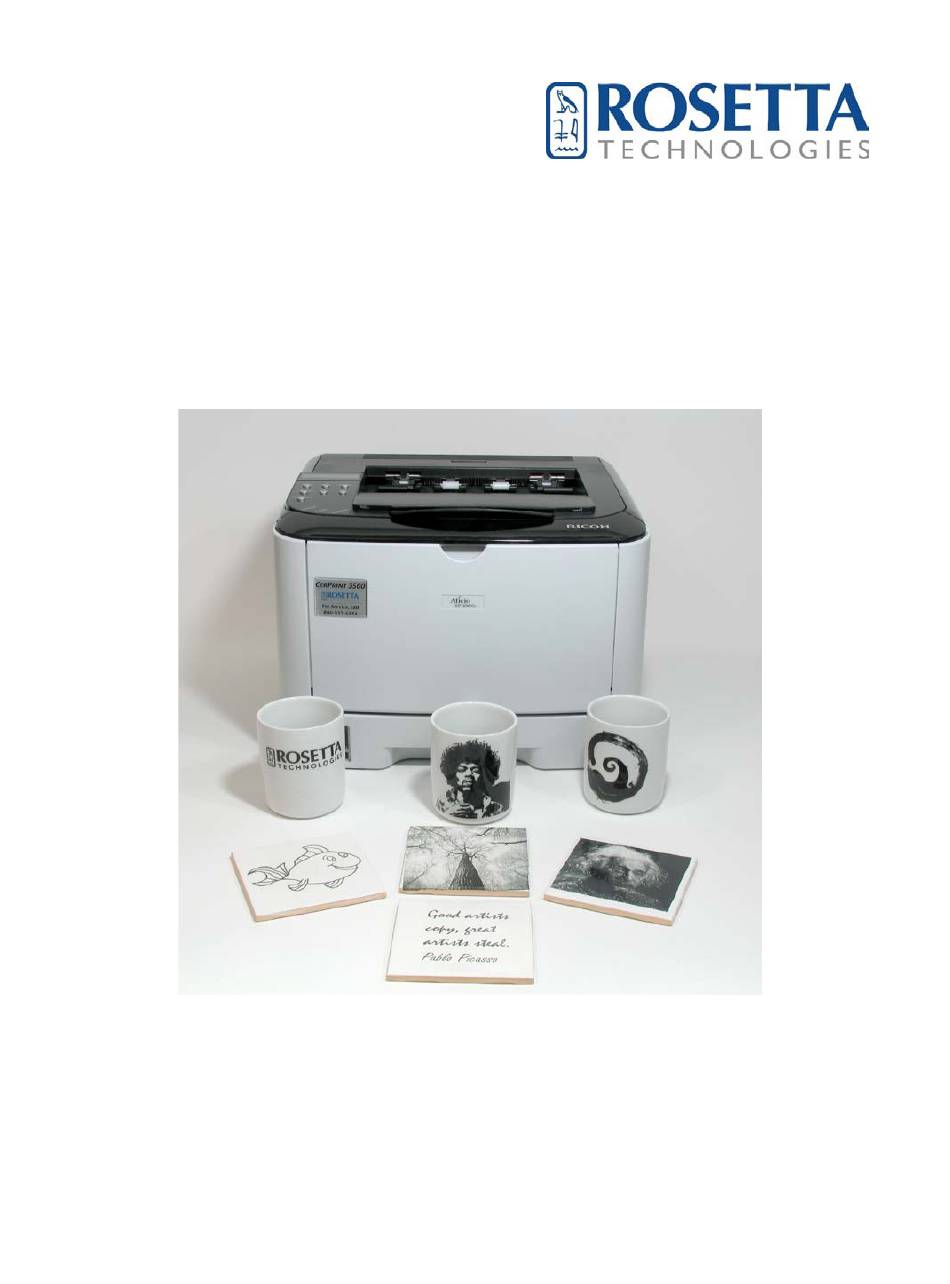

Page 1 3500 RINT Ceramic Decal Printer User Manual Version 3.2...
Page 2 Thank you for purchasing a CerPrint 3500 Ceramic Decal Printer. This printer is a 30 page-per- minute laser printer engineered for the successful printing of ceramic decals. The toner in the cartridge is designed to produce deep, rich, black fired images. Additional colors will be available as we develop them.
Page 3: Table Of Contents
Installation Mac OS ............................. 32 Media Considerations ..........................40 Decal Transfer and Application ........................41 Printing Tips ..............................42 Firing Schedules ............................42 Warranty Support ............................44 Warranty Statement ........................... 44 Contact Information ............................ 44 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 3...
Page 6: What's In The Box
What’s In the Box? • One CerPrint 3500 Printer • One Ceramic Decal True Black toner cartridge • Sample pack (25 sheets) of fluxed decal paper (1550-1650 degrees F, recommended) • CD containing drivers and other information • User Manual(s)
Page 7: Installation For Windows Os Via Usb
PC for the first time. Once the installation is complete the PS driver can then be installed from the Windows “Devices and Printers” Control panel. 1. Connect the printer via USB to a port on your computer. Turn on the printer 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 7...
Page 8 2. Windows will automatically install the PCL Version of the printer driver 3. Once the printer is installed. Open the Devices and Printers from the Control panel 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 8...
Page 13 9. This link will direct you to the Ricoh Support Driver download page for the Ricoh SP3500 DN printer. 10. Under “Your OS” select your version of Windows, in this case Windows 10 is selected. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 13...
Page 14 13. Double click on run the downloaded file: a. The executable will as where to extract the driver, the default location is the “C:\temp\z73295en\” folder. b. Click on Unzip. And then OK. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 14...
Page 15 14. Go back to the “Add Printer Driver Wizard”. Click on the “Have Disk…” button on the Printer Driver Wizard. 15. Click on “Browse…”. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 15...
Page 16 16. Navigate to the “C:\temp\z73295en\Disk1” folder. a. Select the GIEPA.inf file and press Open. 17. Click OK on the “Install From Disk” screen. 18. Select the Ricoh Aficio 3500 N PS Driver a. Click Next. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 16...
Page 17 19. Once completed the PS Driver is now installed. a. Click Finish to close the Add Printer Wizard. 20. Once completed, go to the General tab and click Print Test Page to test the PS Driver. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 17...
Page 18: Installation For Windows Os Via Network
[DHCP] following this procedure. When [DHCP] is selected, you cannot make settings for the following items: a. IP Address b. Subnet Mask c. Gateway Address 2. Press the [Menu] key. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 18...
Page 19 9. The address will be detected by the printer. 10. Press the [Menu] key. 11. If you are requested to restart the printer, turn off the printer, and then turn it back on. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 19...
Page 20 15. Using this Configuration Page, the CerPrint printer can now be installed. 16. Press the Windows button on the Keyboard. a. This should open the Windows Search Bar i. Type “Control Panel”, and then click on the Control Panel icon. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 20...
Page 22 20. The following window will open: 21. Click on “The printer that I want isn’t listed” 22. Select “Add a Printer using TCP/IP address or hostname”. Then Click Next. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 22...
Page 23 25. Using the following link, download the Postscript driver for your version of Windows. https://bit.ly/2RRhgdP 26. This link will direct you to the Ricoh Support Driver download page for the Ricoh SP3500 DN printer. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 23...
Page 24 “z73295en.exe” and was in the Downloads folder. 30. Double click on run the downloaded file: b. The executable will as where to extract the driver, the default location is the “C:\temp\z73295en\” folder. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 24...
Page 25 Click on Unzip. And then OK. 31. Go back to the “Add Printer Driver Wizard”. Click on the “Have Disk…” button on the Printer Driver Wizard. 32. Click on “Browse…”. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 25...
Page 26 33. Navigate to the “C:\temp\z73295en\Disk1” folder. d. Select the GIEPA.inf file and press Open. 34. Click OK on the “Install From Disk” screen. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 26...
Page 27 35. Select the Ricoh Aficio 3500 N PS Driver e. Click Next. 36. Once completed the PS Driver is now installed. Click Finish to close the Add Printer Wizard. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 27...
Page 29: Setting Up The Driver For Printing
Media type selected as Plain 1. Also, we recommend using the bypass tray for decal printing. You can experiment with this, but this selection gives the most consistent results. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 29...
Page 30 Then scroll down and click on the “+” box next to PostScript options. Scroll down to Mirrored Output and change it to “Yes”. Click “OK”, then Click “OK” again. If your application is already creating mirror images, then you can skip this part. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 30...
Page 31 Pull out the paper support guide. Make sure the paper guides on either side are spread to the 8.5-inch position. Insert your media face up in the tray. Print the page from your application. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 31...
Page 32: Installation Mac Os
1. Go to the following website and download the Mac Postscript PPD installer file for the RICOH SP 3500DN. https://bit.ly/2RRhgdP b. Click on the blue download button. 2. Go to your Downloads folder and look for the downloaded .dmg file, in this case its “r76592L13.dmg”. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 32...
Page 33 3. Run the file, when the file has run the following will appear. a. Double click and run the “RICOH Aficio SP 3500N_3510DN.pkg” 4. Follow the prompts, and restart the computer once completed. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 33...
Page 35 6. If the printer is USB, plug the printer into your Mac, the driver will be Automatically Added and Assigned. If your printer is networked, Click [ ] or [Add] button. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 35...
Page 37 11. Print options/setting will only when a document or image is being printed. a. This this sample a PDF was opened, and the print settings are being set to print using recommended settings. Settings can be changed under “Layout” 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 37...
Page 38 12. Under Layout, Printer Features will be listed. 13. Printer Features - Media Type must be set to Plain 1 (If not, 1200 DPI will not be available.) 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 38...
Page 39 15. Lastly if needed, the image can be reversed to allow for text to be readable. This is not a required step. Pressing Print would then print the image to the CerPrint 3500 printer. 4/17/2019 Rosetta Technologies Corporation All Rights Reserved...
Page 40: Media Considerations
There are many different types of decal media available. The ceramic toner that comes with the CerPrint 3500 does not contain flux and was developed for use in combination with the special fluxed printing paper included with your CerPrint 3500 and available from Rosetta Technologies.
Page 41: Decal Transfer And Application
Decal Transfer and Application One Step Method The “One Step” fluxed decal paper included with your CerPrint 3500 is used like any other decal paper. We recommend cutting your decal as close to the printed image as possible as there can be a noticeable flux edge after firing. We use an articulated exacto knife, which works well when doing close cuts.
Page 42: Printing Tips
Decal stock is fairly heavy, so the straightest path is the best. 3. Print density in the CerPrint 3500 has been turned to +2. If the fired images of your transfers are too dark or too light, you can go into the main menu on the printer, following the directions in the Ricoh SP 3500N Manual, and turn it down.
Page 44: Warranty Support
Please retain the packing material your CerPrint 3500 printer came in, as we are not responsible for shipping damage. Also, please do not send your toner cartridge, as this can result in toner leakage during shipping.
Page 45 True Black Cerprint Toner cartridge, for use with CerPrint decal media PN 12113000 Blue CerPrint Toner cartridge, for use with CerPrint decal media (PN 121130003) Extended Warranty (post initial warranty) Coverage is available. See our Gallery Pages at www.CerPrint.com 4/17/2019 Rosetta Technologies Corporation All Rights Reserved Page 45...
