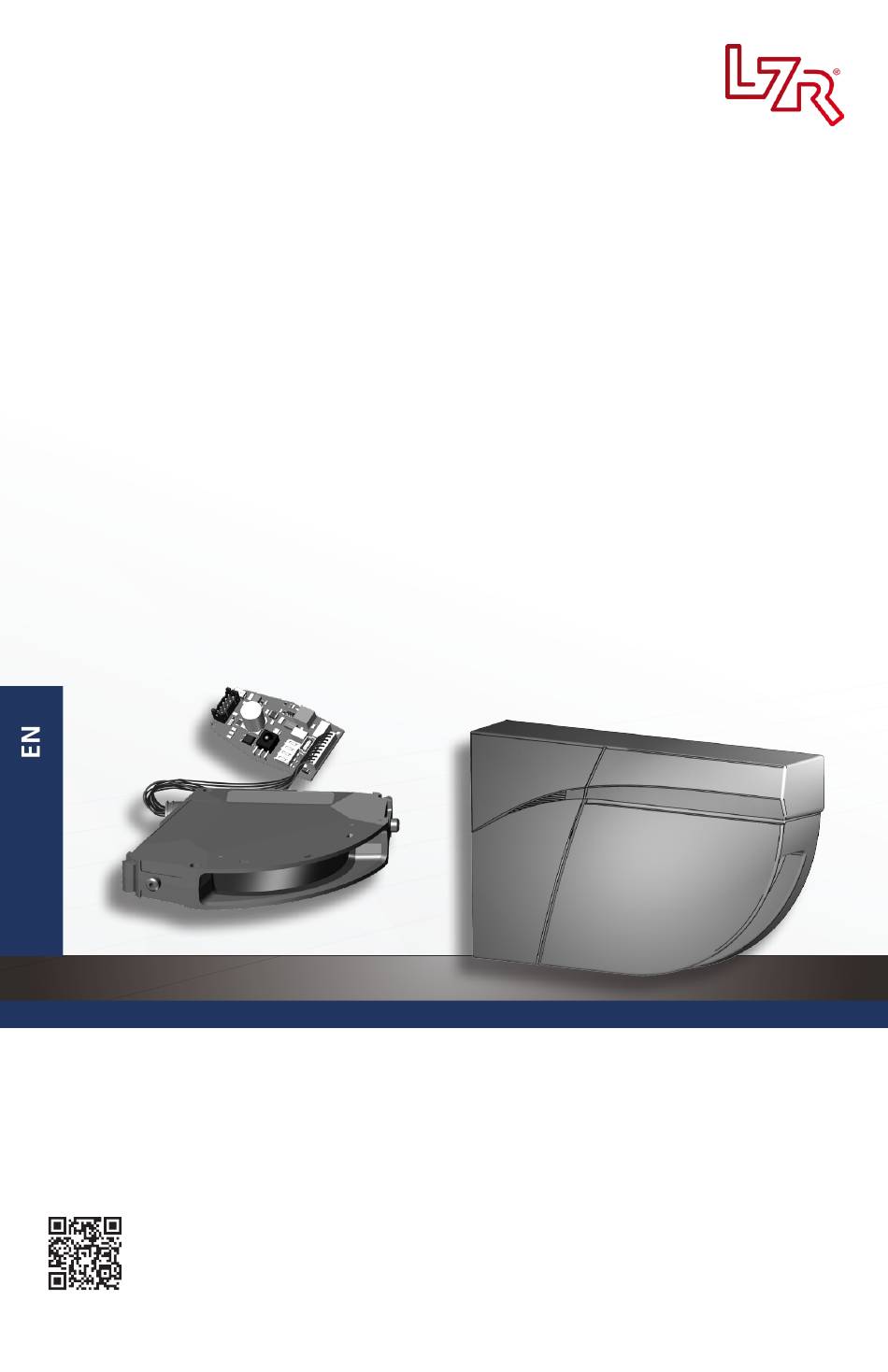

- Page 1 -FLATSCAN U950 ® -FLATSCAN U952 ® LASER MEASUREMENT DEVICE WITH BIDIRECTIONAL BUS COMMUNICATION Visit website for available languages of this document. 75.0037.02 LZR-FLATSCAN U950_952 20240129 Page 1 of 8...
-
Page 2: Class 1 Laser Product
RELEASE DOES NOT EXTEND TO CLAIMS WHICH THE CREDITOR DOES NOT KNOW OR SUSPECT TO EXIST IN HIS FAVOR AT THE TIME OF EXECUTING THE RELEASE, WHICH IF KNOWN BY HIM MUST HAVE MATERIALLY AFFECTED HIS SETTLEMENT WITH THE DEBTOR. Page 2 of 8 75.0037.02 LZR-FLATSCAN U950_952 20240129... -
Page 3: Led Signals
APPLICATIONS The LZR-FLATSCAN U is a LASER-based device measuring distances with 1 curtain. It can be installed to scan in any direction and is designed to provide the highest degree of flexibility. • Profile analysis • Traffic control • Navigation of Automated Guided Vehicles •... -
Page 4: Technical Specifications
Compliance 2014/30/EU; 2011/65/EU; IEC/EN 60825-1 Laser safety; IEC/EN 61000-6-2; IEC/EN 61000-6-3 EMC * These parameters can be configured via the RS 485 communication interface. For more information on the existing options, see LZR ® FLATSCAN U Protocol. Specifications are subject to change without prior notice. - Page 5 Cut the power cable to the right length, strip the 6 wires and connect all wires as indicated. Observe polarity. MOUNTING U950 Mounting instructions (next page) apply to both horizontal and vertical mounting orientations. 75.0037.02 LZR-FLATSCAN U950_952 20240129 Page 5 of 8...
- Page 6 Remove the sensor cover by inserting your finger and then pull firmly towards you. Secure the sensor to the mounting base by sliding it downward. Secure the lock screw to avoid vibrations during door movement. Page 6 of 8 75.0037.02 LZR-FLATSCAN U950_952 20240129...
- Page 7 = angular resolution distance @ 1 m 1.5 mm 12.5 mm shown @ 4 m 6 mm 50 mm @ 8 m 12 mm 100mm DISTANCE BETWEEN SPOTS ("c" above) min. 0.18° 75.0037.02 LZR-FLATSCAN U950_952 20240129 Page 7 of 8...
-
Page 8: Troubleshooting
Cut and restore power supply. flashes 3x If the LED flashes again, replace the sensor. Some errors may not be indicated via the LED. In this case, refer to the LZR -Flatscan U Protocol. ® ADDITIONAL INFORMATION Additional information about the FLATSCAN U950/952 can be found on the BEA Sensors Github page: https://github.com/BEA-Sensors-Americas...
