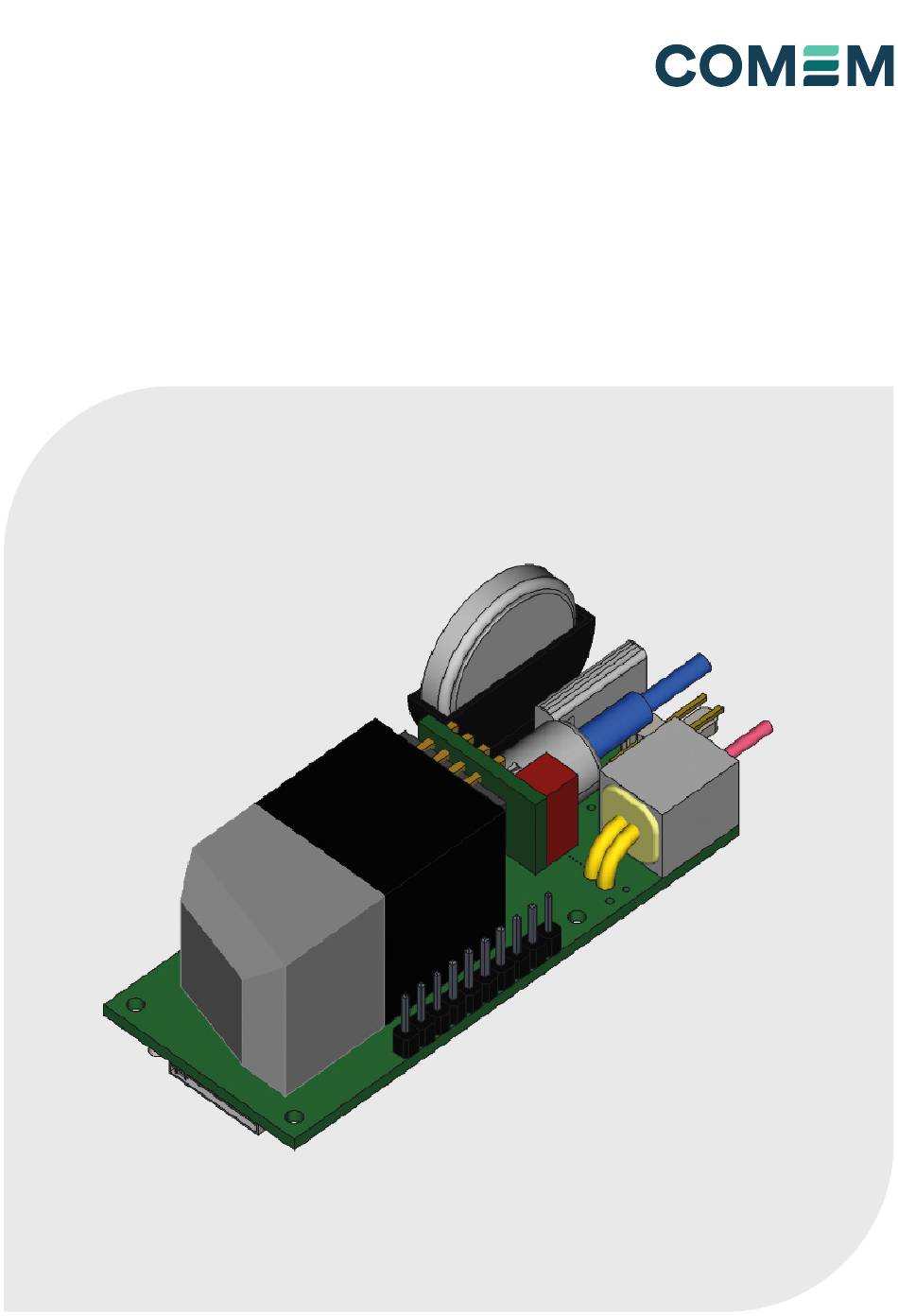

- Page 1 INSTRUCTION MANUAL FOTEMP MN30...
-
Page 2: Table Of Contents
CONTENT INDEX Content index General ............3 Safety ............3 Unpacking, inspection, service .....3 Product description ........4 Calibration ............4 Quick start ............5 Installation ............5 Sensor connection ........6 Sensor handling ..........6 Sensor/connector cleaning ......7 Optional external power .......8 Pin header ............8 Logging ............8 Serial communication ........9 Troubleshooting ...........9... -
Page 3: General
TD +49 351 843 599 0 personal safety and to prevent damage. Safety instructions in this manual are shown in three Equipment return address different forms to emphasize important information. COMEM Optocon GmbH Washingtonstrasse 16/16a 01139 Dresden, Germany WARNING Disposal... -
Page 4: Product Description

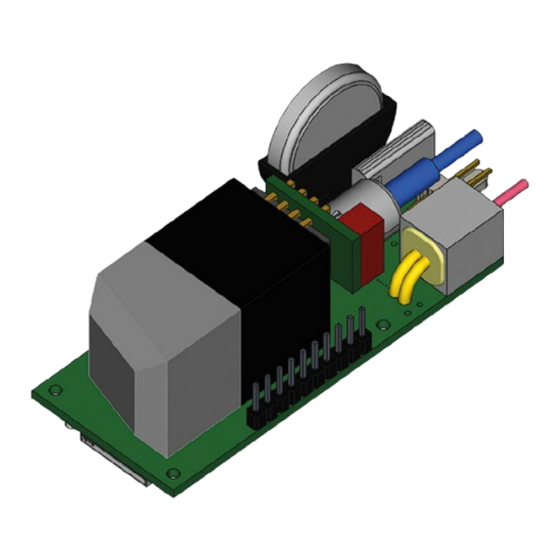

(RTC, TC, capillary, etc.) is not possible. Environment Communication ASCII FOTEMP MN30 is a minimalistic device for many fields of Protocols application, e.g.: Interfaces TTL, RS232, RS485, USB • Embedded instrument applications Operating Temperature -20 °C to 60 °C... -
Page 5: Quick Start
However, it can not replace comprehensive literature CAUTION containing important information and safety warnings. Top view FOTEMP MN30 is only compatible with COMEM optocon fiber optic sensors. Do not use temperature sensors from other brands. General installation guidelines: When installing the fiber optic device, carefully follow the installation instructions, paying close attention to the order of the instructions. -
Page 6: Sensor Connection
FOTEMP MN30 Sensor connection Sensor handling Bending radius: Fibers with a core diameter of 200 μm have a short time (≤10 min) bending radius of 10,0 mm Ferrule key and a long time (>10 min) bending radius of 27,0 mm. -
Page 7: Sensor/Connector Cleaning
Sensor/connector cleaning Mechanical load: Avoid stretching! Avoid pinch points! Avoid shocks on sensor tip and connector head! Storage: Instructions When not in use, the sensor should be carefully stored in Clean the ST sensor’s connector with the connector its delivery box or suitable storage container to prevent cleaner. -
Page 8: Optional External Power Pin Header
FOTEMP MN30 Optional external power Pin header The FOTEMP MN30 has the possibility to power the device with a voltage range of 9-24V using the front connector. Alternatively, you can also utilize the corresponding pins (refer to the picture below). -
Page 9: Serial Communication
Alternatively, you can communicate with the device using our open ASCII protocol or Modbus. Troubleshooting For more information please contact us or consult the Application note AN206: FOTEMP Device Troubleshooting https://comem.com/en/library/. - Page 10 In case you need any further information, contact us at customerservice@it.comem.com www.comem.com The data and illustrations are not binding. We reserve the right to modify the contents of this document without prior notice following the technical and product developments. Copyright 2024 COMEM. All rights reserved Manual-10-2024...
