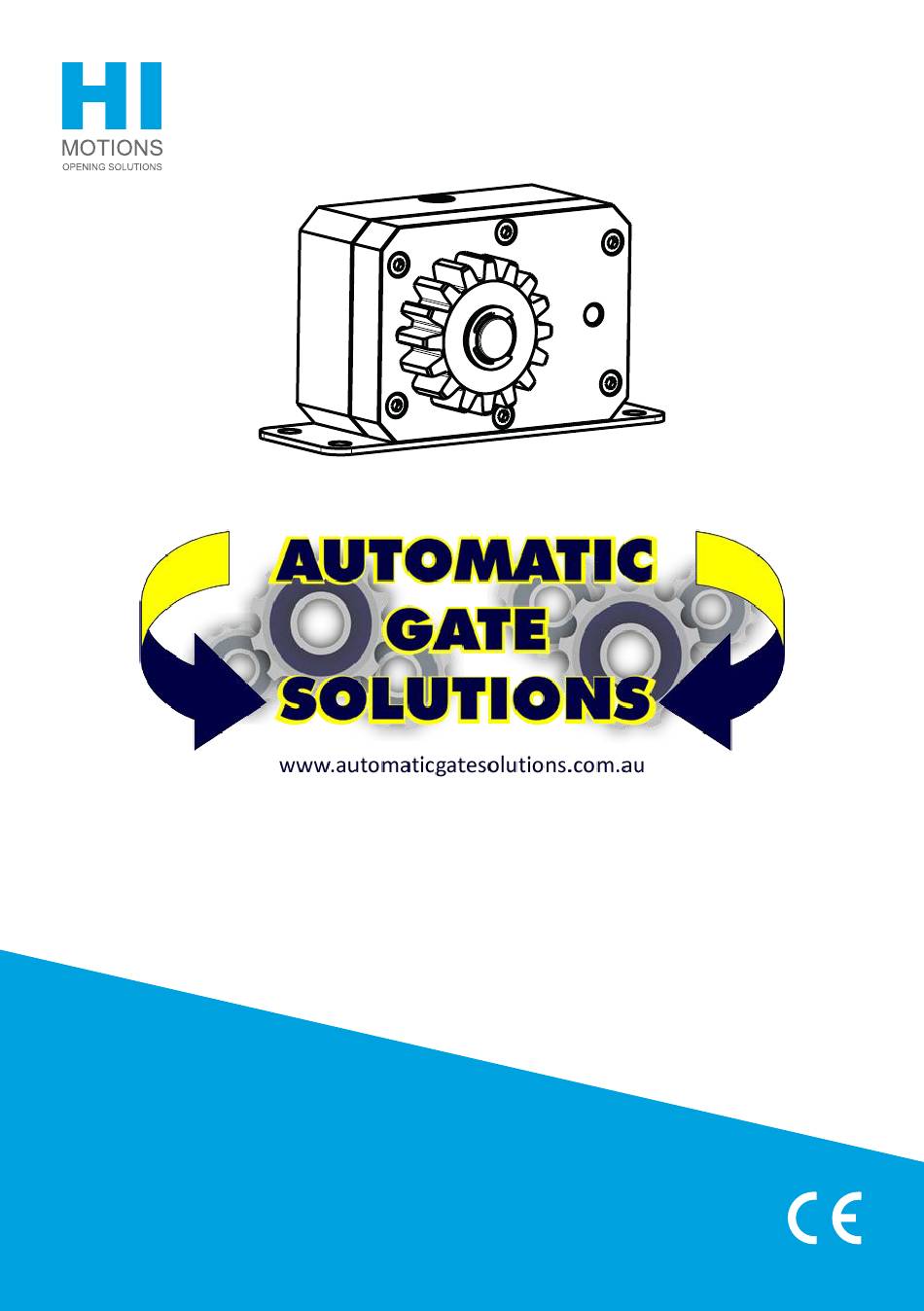

- Page 1 09/2022 rev 0 199.2 HYDRAULIC RADIAL DAMPER...
- Page 2 1. DESCRIPTION The 199.2 hydraulic rotating brake M4 Z16 has been developed to adjust and control the speed of the gate in systems with a slope throughout their path. For safety reasons, the gate must not be allowed to gain speed when the automation system is unlocked.
- Page 3 3.2 Assembly. The 199.2 hydraulic rotating brake M4 Z16 must be placed as close as possible to the operator (Fig.6) and adjusted to the correct height, leaving 1 mm of clearance between the pinion and the rack (Fig.7). Fig.6 Fig.7 3.3 Calculation.
