AVOCOR H Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H S
U
M
ERIES
SER
ANUAL
for models AVH-6520, AVH-7520 & AVH-8620

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVOCOR H Series

Summary of Contents for AVOCOR H Series

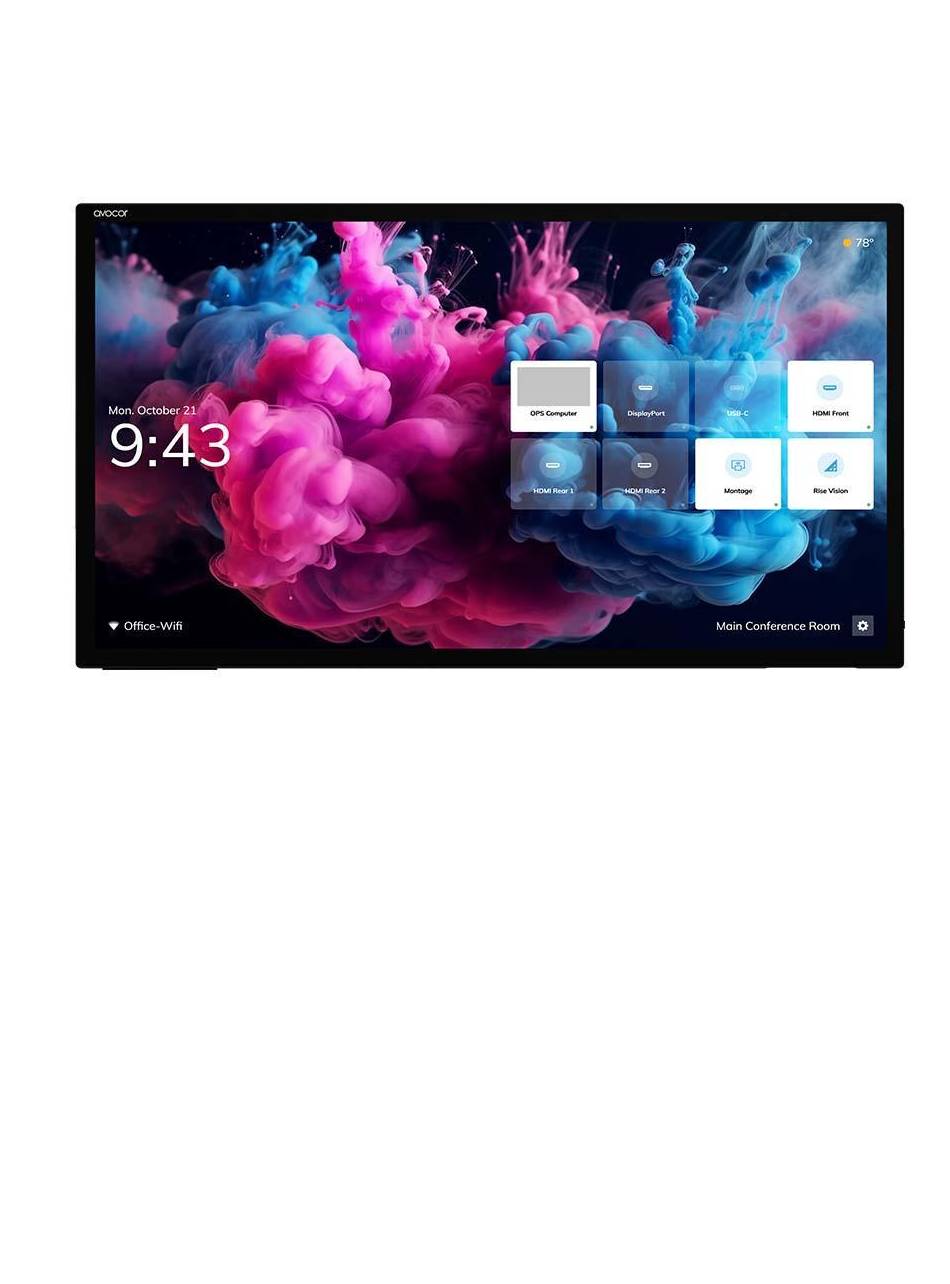

  • Page 1 ERIES ANUAL for models AVH-6520, AVH-7520 & AVH-8620...

  • Page 2: Table Of Contents

    H SERIES USER MANUAL | 1 ABLE OF ONTENTS Safety Warning Specifications Prepare to Install Terminal Interface Remote Control Connection and Setting Simple Troubleshooting Maintenance...

  • Page 3: Safety Warning

    H SERIES USER MANUAL | 2 AFETY ARNING Before operating, please read this manual thoroughly and keep it for future reference. Images shown in this manual are indicative only. There may be differences between the pictures and the actual product.
  • Page 4 H SERIES USER MANUAL | 3 EMPERATURE Normal operating temperature is 0 ~ 40℃. Do not place the unit near or over a radiator or a heater. If your unit is suddenly moved from a cold to a warm place, please unplug the power cable and do not turn it on for at least 2 hours.

  • Page 5: Graphic Conventions

    H SERIES USER MANUAL | 4 GRAPHIC CONVENTIONS The following symbols may appear throughout this manual to emphasize key points. Keep these in mind to avoid problems with your display or personal injury. — Highlights helpful guidelines and best practices for using certain features.
  • Page 6 Supported Colors 10 Bit 1.07 billion Color Display Orientation Landscape Touch System Touch Up to 40 points Avocor Intelligent Touch + 1 stylus Glass Zero parallax, 2mm optically bonded, anti-glare, anti-fingerprint Interface 2 x USB-B 2.0, 1 x Type C Connectivity Top inputs 1 x USB-A 3.0 hub...
  • Page 7 H SERIES USER MANUAL | 6 Presence Sensor Yes, max 4 range Power Max Power 227W 257W 390W Consumption Environmental Operating 0°C ~ 40°C / 32° F ~ 104° F Temperature Storage Temperature -20° C ~ 60° C / -4° F ~ 140° F...

  • Page 8: Prepare To Install

    H SERIES USER MANUAL | 7 REPARE TO NSTALL Items ：Tap to enter energy-saving mode and hold it for at least 2 seconds to enter standby mode. Magnetic Zone: Area for placing the absorptive magnetic pen. LED indicator PIR: The screen will light up automatically when a person is detected in front of the screen.

  • Page 9: Terminal Interface

    H SERIES USER MANUAL | 8 ERMINAL NTERFACE Items Function description TOUCH1/2/3 Touch signal output to the external computer High-definition multimedia interface signal input, connect to HDMI 1/2/3/4 devices with HDMI output interface (a personal computer with HDMI output, set-top box, or another video device) Connected to devices with Displayport output function.
  • Page 10 H SERIES USER MANUAL | 9 Carry multichannel sound via optical signals. SPDIF AC power output, connecting AC power supply AC OUT AC power input, connecting AC power supply AC IN To open or shut down the AC power supply. “I” means power on, AC SWITCH “O”...

  • Page 11: Remote Control

    H SERIES USER MANUAL | 10 EMOTE ONTROL Button Description Power Turns the display screen on and off Home Switch to Favorite Source input (Home by default). Source Selects a media source Navigation arrows Navigates through submenus and settings Confirms the selection...

  • Page 12: Remote Control Batteries

    H SERIES USER MANUAL | 11 EMOTE ONTROL ATTERIES To install batteries in the remote control: 1. Press down the tab on the cover plate and pull the cover plate up. 2. Insert the included batteries. Ensure that the polarities match the (+) and (-) markings inside the battery compartment.

  • Page 13: Connection And Setting

    H SERIES USER MANUAL | 12 ONNECTION AND ETTING Please do not connect any power plug before connecting for your safety and the machine's safety. XTERNAL OMPUTER AND OUCH ONNECTION Use a USB Type-C cable to connect to a computer (Or use an HDMI cable to connect to the HDMI output port of an external computer.

  • Page 14: Audio And Video Equipment

    H SERIES USER MANUAL | 13 UDIO AND IDEO QUIPMENT 1. Use an HDMI cable to connect the audio and video equipment to the HDMI output. 2. After the cable is connected, plug in the power cord and switch the power on.

  • Page 15: Usb Connection

    H SERIES USER MANUAL | 14 USB C ONNECTION AUDIO OUT C ONNECTION...

  • Page 16: Simple Troubleshooting

    H SERIES USER MANUAL | 15 IMPLE ROUBLESHOOTING ACHINE AILS TO ORMALLY Check whether there are other objects between the remote control and the equipment control receiving window, thus leading to the failure of the remote control. Remote control failure Check whether the battery electrode in the remote control is correct.

  • Page 17: Maintenance

    H SERIES USER MANUAL | 16 Touch positioning is Check whether the touch pen is facing the not correct screen. ’ IDEO UNCTION ORMALLY Check whether the machine is in a started state. Check whether the signal wire is well plugged No picture and and whether INPUT corresponds.

  • Page 18: Clean Screen

    H SERIES USER MANUAL | 17 LEAN CREEN Please mix and stir a little fabric softener or tableware detergent with alcohol. Please use a soft cloth and thoroughly soak it in the mixture. Please remove the cloth and twist it to a half-dry state to wipe the machine screen.

This manual is also suitable for:

Avh-6520Avh-7520Avh-8620
