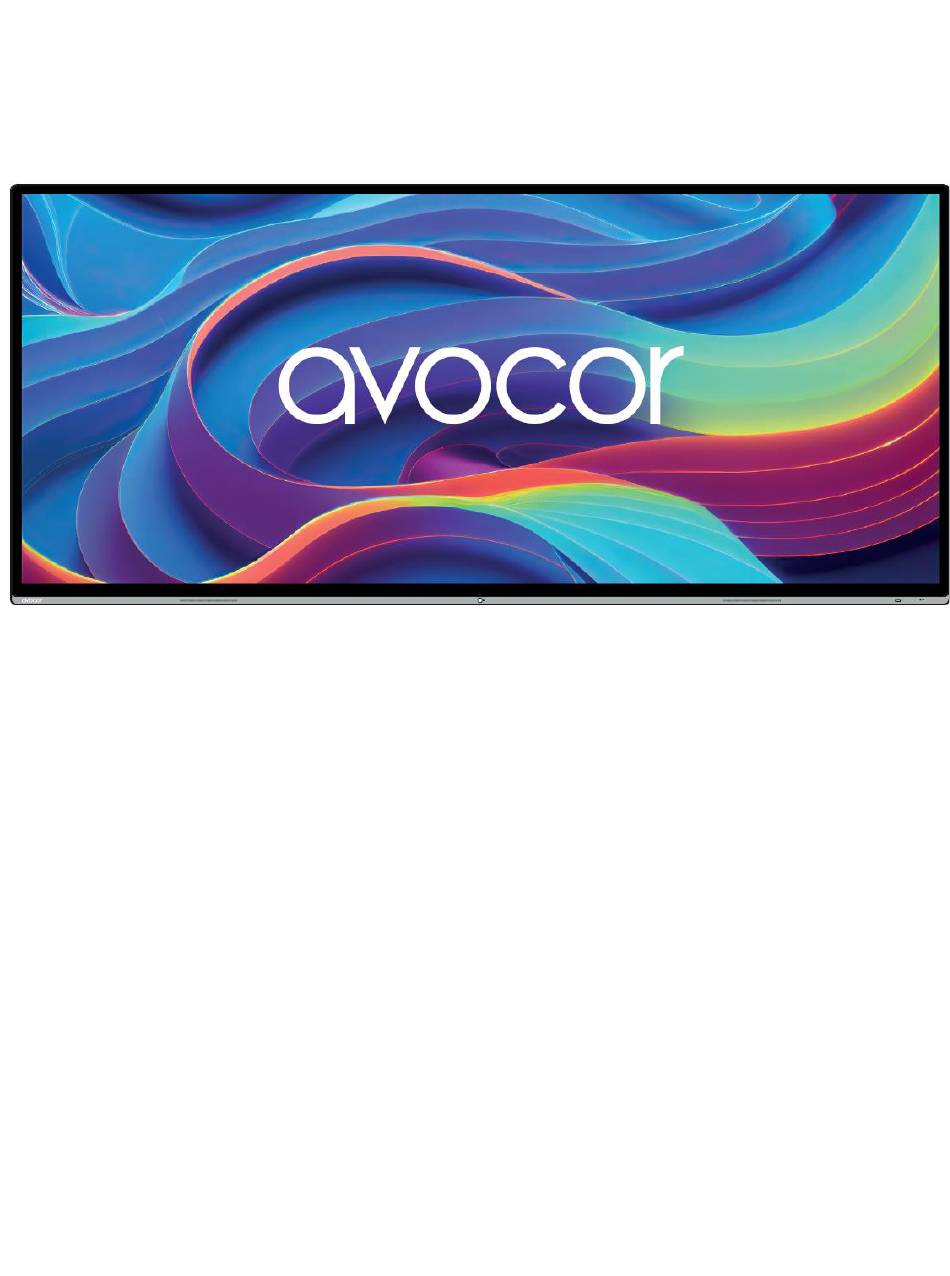

- Page 1 L-SERIES USER MANUAL for models AVL-1050-T & AVL-1050-D...
-
Page 2: Table Of Contents
L-SERIES USER MANUAL | 1 ABLE OF ONTENTS Compliance Information ............................. 3 Declaration of Conformity ..........................3 Caution ................................3 Industry Canada (ICES-003) .......................... 3 Product Disposal ............................. 3 Disposal of Old Electrical and Electronic Equipment ................4 Introduction ................................5 About This Manual ............................ - Page 3 RS232 Connection and Port Configuration ..................... 37 LAN Control Configuration ......................... 37 Command and Response Format ....................... 37 Serial Command List ............................ 38 Avocor: One-year Limited Warranty ......................41 Coverage ............................... 41 Exclusions ..............................41 Concealed Damage ............................42 Customer Data ............................. 42 Services ................................
-
Page 4: Compliance Information
L-SERIES USER MANUAL | 3 COMPLIANCE INFORMATION DECLARATION OF CONFORMITY Avocor hereby declares that the following Product Model Number: AVL-1050-T / AVL-1050-D conforms to the provisions of the following regulations: PENDING AUTION Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. -
Page 5: Disposal Of Old Electrical And Electronic Equipment
L-SERIES USER MANUAL | 4 DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT Applicable throughout the European Union and other European countries with separate collection programs This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. -
Page 6: Introduction
5K@60hz resolution, and multiple source inputs for your devices. This series comes in both an interactive touch model, and a non-interactive model. Avocor follows an agnostic approach to developing displays: they are compatible with a wide range of hardware and software, making them a great addition to any interactive meeting-room solution. -
Page 7: Graphic Conventions
L-SERIES USER MANUAL | 6 GRAPHIC CONVENTIONS The following symbols appear throughout this manual to emphasize key points. Keep these in mind not only to benefit from their advice, but also to avoid problems with the display or personal injury. Highlights helpful guidelines and best practices for using certain features. -
Page 8: What's In The Box
L-SERIES USER MANUAL | 7 WHAT'S IN THE BOX? Avocor L-Series Interactive Display ● Quick Start Leaflet with QR code ● Remote Control & Batteries ● (2) Touch Stylus 3mm ● Power Cables ● US Cable 2m UK Cable 2m... -
Page 9: Specifications
400 (cd/m2) Contrast Ratio 4000:1 Viewing Angle 178°/178° Supported Colors 30 Bit Deep Color Display Orientation Landscape Touch System Up to 40 points Avocor Intelligent Touch Touch Optically bonded, anti-glare, anti- Glass Anti-glare, anti-fingerprint fingerprint Interface 3 x USB-B inputs Connectivity Top inputs 2 x USB-A 3.0 hub... - Page 10 L-SERIES USER MANUAL | 9 Audio Built-in Speakers 2x 15W – Forward Facing Display Functions Auto-source detection, Source Preview, Blank, Freeze Physical Specifications Product Dimensions 25160.6 x 96.3 x 1123.3 mm | 98.84 x 3.79 x 44.22 in Shipping Dimensions 2703 x 425 x 1255 mm | 106.42 x 16.73 x 49.41 in Weight Net: 99kg | 218.26 lbs / Gross: TBD...
-
Page 11: The Display, At A Glance
L-SERIES USER MANUAL | 10 THE DISPLAY, AT A GLANCE The following diagrams depict the front, side, and bottom panels of the display. The physical interface and connections are labeled, and then described in the tables that follow. DISPLAY FRONT ETAIL RONT ANEL... -
Page 12: Detail: Front Panel Power Button & Sensors
L-SERIES USER MANUAL | 11 & S ETAIL RONT ANEL POWER BUTTON ENSORS Speaker Panel 2x left and right speakers, 16W. Ambient Light Sensor Calibrates screen brightness when Backlight>Auto is enabled. Motion activated sensor Presence Sensor Toggles power for the display. Power Button Ambient Environment Temperature, humidity, CO2/VOCS. -
Page 13: Back Panel View
L-SERIES USER MANUAL | 12 BACK PANEL VIEW USB Accessory Port USB 3.0 Type A - HID input for mouse & keyboard accessories. 2x Handles Handles for carrying the display. LAN/RS232 Panel LAN, RS232, Service Port. Power Panel A/C Power Switch, Power Input, Power Output Revision Date: 11 August 2023... -
Page 14: Side Panel View
L-SERIES USER MANUAL | 13 SIDE PANEL VIEW USB 3.0 Accessory Port Handle OPS Slot I/O Panel Revision Date: 11 August 2023... -
Page 15: Detail: I/O Panel
L-SERIES USER MANUAL | 14 : I/O P ETAIL ANEL USB Touch 1 USB-B 2.0 – provides touch for DP & HDMI 1 DisplayPort 1.4 input that supports 5K@60 HDMI 1 HDMI 2.1 input that supports 5K@60 2x USB USB 3.0 Type A - HID input for mouse & keyboard Accessory accessories HDMI Out... -
Page 16: Bottom Panel View
L-SERIES USER MANUAL | 15 BOTTOM PANEL VIEW Power Panel USB Accessory Wi-Fi Plugin Ethernet/Control Panel , USB P ETAIL OTTOM PANEL ORTS OWER INPUT UTPUT Wi-Fi Module Plugin Remove cover plate to access a USB-A plugin for the included WiFi module 2x USB Accessory USB 3.0 Type A - HID input for mouse &... -
Page 17: Detail: Ethernet/Control Panel
L-SERIES USER MANUAL | 16 ETAIL ETHERNET CONTROL PANEL SPDIF Optical audio out for digital speakers or an audio receiver 2x RJ-45 LAN input/output for internet or control system integration RS232 DB9 input, male, for control system integration USB Touch 3 USB-B 2.0 –... -
Page 18: The Remote Control
L-SERIES USER MANUAL | 17 THE REMOTE CONTROL Button Description Power Turns the display screen on and off Home Switch to Favorite Source input (Home by default). Source Selects a media source Navigation arrows Navigates through submenus and settings Confirms the selection Exit Exits the OSD menu Volume down... -
Page 19: Remote Control Batteries
L-SERIES USER MANUAL | 18 EMOTE ONTROL ATTERIES To install batteries in the remote control: 1. Press down the tab on the cover plate and pull the cover plate up. 2. Insert the included batteries. Ensuring that the polarities correctly match the (+) and (-) markings inside the battery compartment. -
Page 20: Installation
L-SERIES USER MANUAL | 19 INSTALLATION Please read the following precautions carefully before installing your new L-series display. Failure to comply may result in damage to the display and equipment, and may result in personal injury or death. DO NOT install the display in a high temperature environment or near any apparatus that ●... -
Page 21: Ambient Light
L-SERIES USER MANUAL | 20 MBIENT IGHT For the best viewing experience, make sure to minimize or remove light sources directed at the screen, especially sunlight. Any direct light may make images on the screen appear washed out and less vibrant, and direct sunlight may even affect touch control operation. -
Page 22: Mounting The Display
L-SERIES USER MANUAL | 21 MOUNTING THE DISPLAY The L-series requires a 1000x400mm compatible VESA mounting bracket. You can use any compatible mounting solution that supports both the VESA and weight of the display, but a compatible wall mount is included with your new display. PRECAUTION Please review the following items prior to mounting your L-series display. - Page 23 (g) 10x Concrete anchors ● ENERAL VERVIEW The diagram above features the back of the Avocor L series 105” display along with the box-provided HERE wall mount projected over it. For a more detailed view, click . It is important to note that consumers are able to change the locations of the wall mount bracket itself so that the display can either sit higher or lower.
- Page 24 L-SERIES USER MANUAL | 23 ETTING UP YOUR WALL MOUNT PLATE Once you have installed the wall mount bracket to the back of the AVL-1050 display, the next step is to set up the wall mount plate for installation. The wall mount plate must be installed into a wall with proper studs in order to support the weight of the display.
-
Page 25: Wi-Fi Module Installation
L-SERIES USER MANUAL | 24 WI-FI MODULE INSTALLATION 1. Take off the Cover using a Philips screwdriver. 2. Insert the Wi-Fi module fully into the Avocor L-series display along the direction of the arrow. 3. Complete assembly. Revision Date: 11 August 2023... -
Page 26: Ops Module Installation
Ensure the installation is complete before turning on the power. Turn on the display. When using an Avocor OPS PC you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational. - Page 27 L-SERIES USER MANUAL | 26 When installing or de-installing an OPS PC, the display must be switched off. If the display is on when performing the installation or deinstallation of the OPS PC, this could cause damage to either the display or OPS PC invalidating the warranty for both. The L-series supports OPS modules that follow the OPS standard.
-
Page 28: Operation
L-SERIES USER MANUAL | 27 OPERATION CREEN Avocor logo: can be toggle on/off, see Display Settings. Weather icon and temperature: powered by OpenWeather® API, shows the current weather conditions and temperature for the Location selected in Location & Time. Network connection is required. -
Page 29: Uiq Settings
L-SERIES USER MANUAL | 28 ETTINGS Display: Avocor Logo, Name, Wallpaper Energy ➢ Saving, Picture, Audio. Network: Status, LAN, Wi-Fi, Wake On LAN, ➢ LAN USB. Language: English, Deutsch, Español, Français, ➢ Italiano, Nederlands. Location & Time: Location, Auto Date & Time, ➢... - Page 30 L-SERIES USER MANUAL | 29 ISPLAY ETTINGS Avocor Logo: Toggles the presence of the ➢ Avocor logo on the Home Screen. Name: Changes the name assigned to the ➢ display, which is visible on the Home Screen. Wallpaper: changes the background image of ➢...
- Page 31 L-SERIES USER MANUAL | 30 Wallpaper ➢ Slideshow: toggle on, and the Home Screen background will cycle through all selected images. ➢ Default Images: high definition 21:9 images preloaded on the L-series display; touch the desired image(s), or highlight and select with the RCU, to set as the Home Screen background.
- Page 32 L-SERIES USER MANUAL | 31 Energy Saving Auto Power Schedule: toggle on to enable ➢ automatic power scheduling. Power On Time: select the time and days of the ➢ week to automatically power on the display. Power Off Time: select the time and days of the ➢...
- Page 33 L-SERIES USER MANUAL | 32 ETWORK ETTINGS ➢ Status: shows network connection status. ➢ LAN: set a "Static IP" or "DHCP," check LAN configuration, view ethernet MAC address. ➢ Wi-Fi: configure Wi-Fi settings, view Wi-Fi MAC address. ➢ Wake on LAN: toggle "Wake On LAN". LAN USB: toggle to pass network connection ➢...
- Page 34 L-SERIES USER MANUAL | 33 & T OCATION ETTINGS Location: set location dependency for Auto Date ➢ & Time and Weather information. Auto Date & Time: toggle Auto Date & Time On ➢ or Off (if On internet connection required). Set Date: manually set the date.
- Page 35 L-SERIES USER MANUAL | 34 NPUT ETTINGS Favorite Source: sets the source tied to the ➢ Home button on the remote and Overlay Buttons. Starting Source: sets the default source shown ➢ when the display powers on. Timeout Source: set a source to automatically ➢...
- Page 36 L-SERIES USER MANUAL | 35 ECURITY Require Passkey: toggle to require a passkey to ➢ access UiQ Settings. Set Passkey: set the passkey. ➢ ➢ Lock Front Keys: lock the front panel buttons on the displa BOUT ➢ Name: personalized display name, assigned when claimed in Fuse.
- Page 37 L-SERIES USER MANUAL | 36 Update System Firmware New System Version: numerical designation for ➢ the new update. New Firmware Version: expanded firmware ➢ version number. Release Notes: changes and fixes present in the ➢ new version will be listed here. Download &...
-
Page 38: External Control
IP address. Configure your control system to run through Port 4664. COMMAND AND RESPONSE FORMAT Any commands sent from an automation/control system or PC to an Avocor display must have the following format: [byte1] [byte2] [byte3] [byte4] [byte5] [byte6] [byte7] [byte8] [byte9] [byte1] indicates the start of the command data (always 3A). -
Page 39: Serial Command List
L-SERIES USER MANUAL | 38 SERIAL COMMAND LIST Event Param. Value Command 000 : backlight off 3A 30 31 53 30 30 30 30 0d 001 : backlight on 3A 30 31 53 30 30 30 31 0d Power 002 : power off 3A 30 31 53 30 30 30 32 0d 003 : power on 3A 30 31 53 30 30 30 33 0d... - Page 40 L-SERIES USER MANUAL | 39 021 : HDMI3 3A 30 31 53 3A 30 32 31 0d 031 : VGA2 3A 30 31 53 3A 30 33 31 0d 032 : VGA3 3A 30 31 53 3A 30 33 32 0d 051 : ATV 3A 30 31 53 3A 30 35 31 0d 101 : android...
- Page 41 L-SERIES USER MANUAL | 40 013 : Right 3A 30 31 53 41 30 31 33 0d 014 : Enter 3A 30 31 53 41 30 31 34 0d 020 : Menu 3A 30 31 53 41 30 32 30 0d 021 : Input 3A 30 31 53 41 30 32 31 0d 022 : Back/Exit...
-
Page 42: Avocor: One-Year Limited Warranty
This warranty does not cover installation, signal reception problems, potential incompatibility with peripheral devices, or acts of nature. Avocor does not warrant nor shall it be liable for Products which have been subject to abuse, including, but not limited to, improper voltage, accident, misuse,... -
Page 43: Concealed Damage
If freight was arranged by Avocor, and patent or obvious physical damage to the packaging is not detected but found on the product or product accessories upon inspecting the product, the customer must report the damages to Avocor within 10 calendar days after the delivery date to receive warranty services. -
Page 44: Services
AFR GUIDELINES. CONTACT SUPPORT FOR FURTHER DETAILS. Defective on Arrival (DOA): If the Product is determined by Avocor to be defective within the first 90 days of the initial purchase by the Customer, it is deemed Defective on Arrival (DOA). In the case of a DOA, the Customer will be provided a brand-new equivalent Product. - Page 45 L-SERIES USER MANUAL | 44 Repair with Expired Warranty: Avocor offers repair services, at cost to the Customer based on time and materials, for products with expired warranty. Customer will be responsible for all shipment costs. For more information, please email at service@avocor.com.
