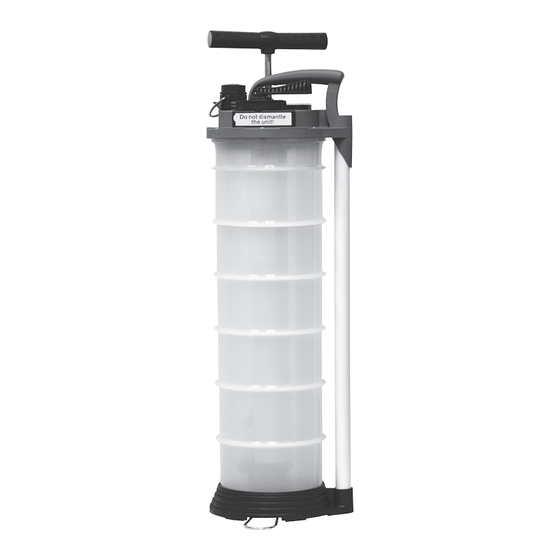

MANUAL EXTRACTOR & DISCHARGE PUMP
USER'S MANUAL
Part No. JDI-150DE
FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708
DATE OF PURCHASE:
READ AND SAVE THIS MANUAL
FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM
Rev 02/2024
151 Snyder Ave.
Barberton, OH 44203
Advertisement
Related Manuals for JohnDow Industries JDI-150DE
Summary of Contents for JohnDow Industries JDI-150DE
- Page 1 ™ MANUAL EXTRACTOR & DISCHARGE PUMP USER’S MANUAL Part No. JDI-150DE FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708 DATE OF PURCHASE: READ AND SAVE THIS MANUAL FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM Rev 02/2024 151 Snyder Ave. Barberton, OH 44203...
- Page 2 Indicates a hazardous situation which, if not avoided, could CAUTION result in minor or moderate injury. NOTICE • Confirm the pressure gauge is at zero before operating. Press the “PUSH” button to reset the gauge (Figure 1). • After finishing, move the “PUSH” button to RELEASE the pressure inside the unit. Confirm the pressure gauge is at zero. Figure 1 CAPACITY AND DIMENSIONS Product JDI-150DE Weight lbs. Gallons 1.5 gallons Item No. Description Qty. Push Button/Release Button/Outlet Pulling Handle In/Out Valve Lever...
- Page 3 OPERATION TO EXTRACT 1. Remove the vehicle's oil dipstick (Figure 2). 2. Turn the lever to the “IN” position (Figure 3). 3. Insert the appropriate diameter extension probe into the dipstick hole until it reaches the bottom of the oil pan (Figure 4). 4.
- Page 4 TROUBLESHOOTING EXTRACTING While extracting, you may experience the following: 1. Pump handle not operating. 2. The fluid will stop when full and the pump handle will not work. Solution: Switch the lever to “OUT” position first, then back to the “IN” position to use again. EVACUATING 1.
