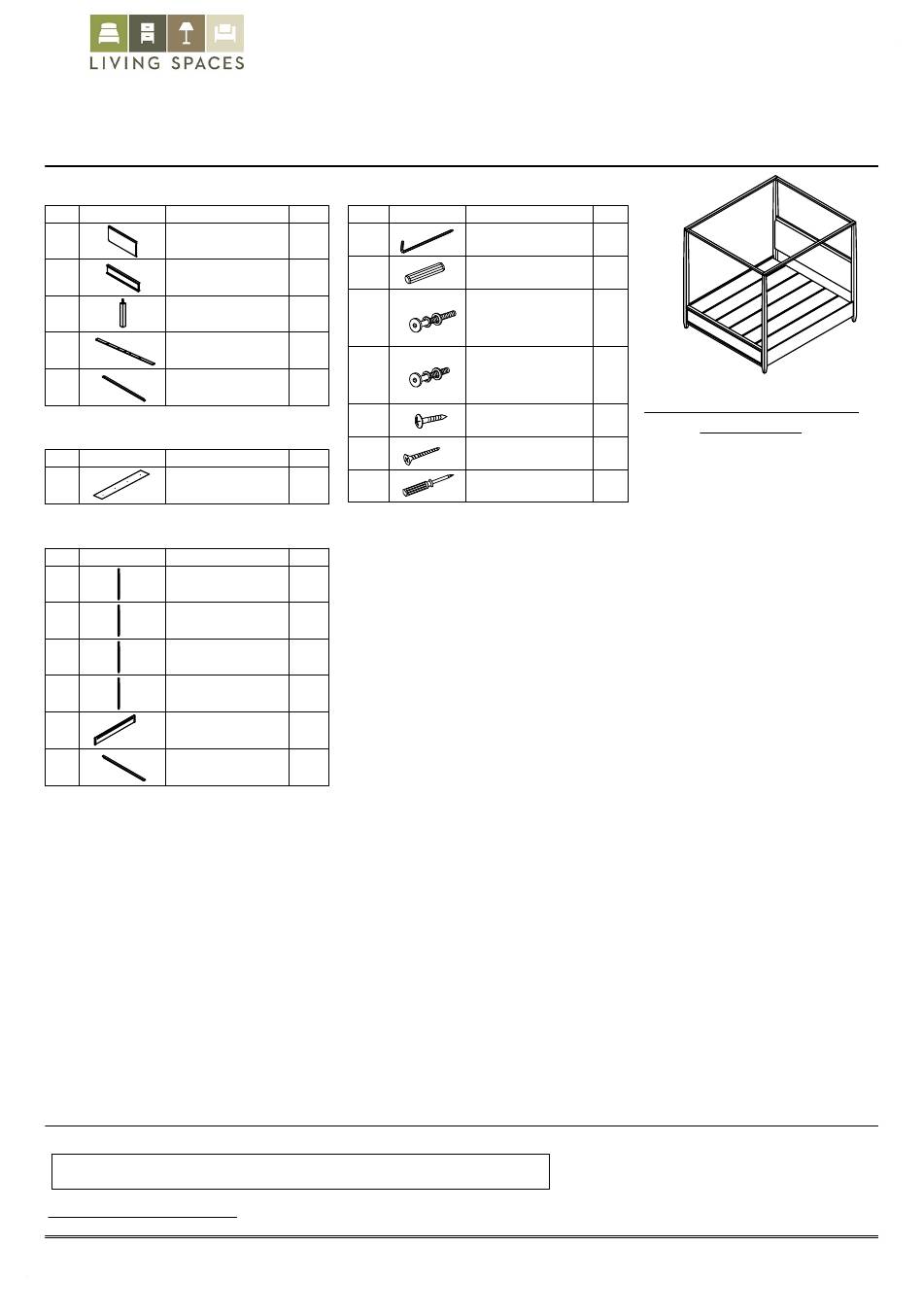

Living Spaces SIENNA B8250-K-HBFB Assembly Instructions

ASSEMBLY
INSTRUCTIONS
(BOX 1)
BOX OF HEADBOARD & FOOTBOARD
ITEM DRAWING DESCRIPTION
HEADBOARD FRAME
A
FOOTBOARD FRAME
B
C WOODEN SUPPORT
D WOODEN SLAT
E TOP RAIL
(BOX 2)
BOX OF PANEL
ITEM DRAWING DESCRIPTION
CONCEAL PANEL
F
(BOX 3)
BOX OF SIDE RAIL
ITEM DRAWING DESCRIPTION
LEFT
G1
HEADBOARD LEG
RIGHT
G2
HEADBOARD LEG
LEFT
H1
FOOTBOARD LEG
RIGHT
H2
FOOTBOARD LEG
I SIDE RAIL
J SIDE RAIL
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE.
CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS.
CLEANING INSTRUCTION
After assembly, clean & polish the completed parts if necessary with soft cloth and industrial recognized furniture polish
ITEM NO : B8250 - K - HBFB SIENNA KING HB + FB
+ H/F CANOPY BARS
B8250 - K - BASE SIENNA KING BASE
B8250 - KQ - RAIL SIENNA K/Q RAIL + SIDE CANOPY
+ POST
(BOX 1)
HARDWARE LIST
QTY ITEM DRAWING
1
1
2
1
8
3
4
4
2
5
6
QTY
6
7
The manufacturer does not provide item 7.
QTY
1
1
1
1
2
2
DESCRIPTION QTY
ALLEN WRENCH
1
(M4 x 110mm)
WOOD DOWEL
18
(M10 x 40mm)
CONNECTION BOLT
18
(M6 x 70mm)
(FOR HB & FB POST)
CONNECTION BOLT
4
(M6 x 50mm)
(FOR SR)

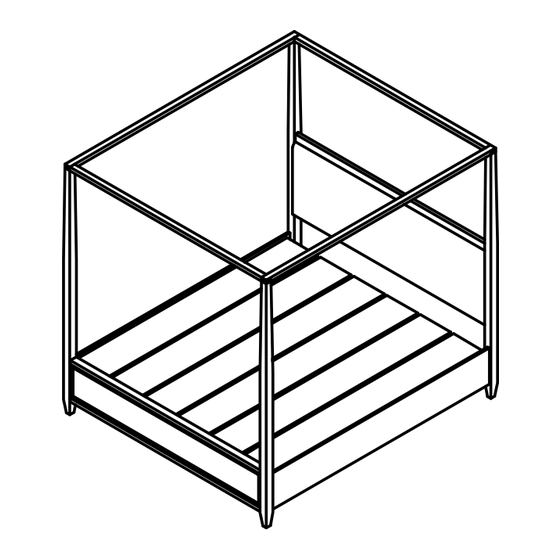

COMPLETED KING BED
ROUND HEAD SCREW
24
(M4 x 20mm)
FLAT HEAD SCREW
8
(M4 x 32mm)
1
SCREW DRIVER(*)
ASSEMBLY
PAGE 1 OF 5
