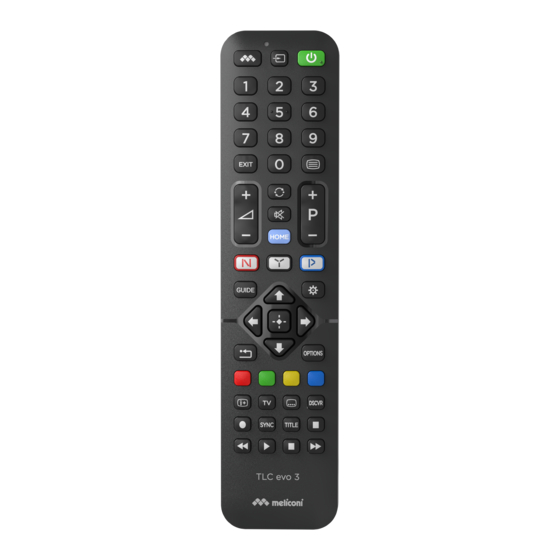

Remote control for TV sets SONY ready to use
Thank you for choosing a Meliconi remote control.
This remote control, after inserting the batteries, is normally ready for use as it is already set at the
If problems are found to command the TV, or some functions do not produce the desired effect, to follow the instructions
The TLC EVO 3 remote control is designed to command a
The MELICONI remote control reproduces infrared signals corresponding to the original; the functions that operate in radio
frequency (e.g. voice commands and pointers) are not supported.
The remote control has a permanent memory, so it does not lose its settings even if there are no batteries in it.
The remote control and batteries should not be exposed to excessive heat such as sunlight, fire
or the like.
The product is not a toy. Keep out of reach of children or domestic animals.
The remote control requires 2 new 1.5V AAA/LR03 alkaline batteries, not included in the
package. Insert with the correct polarity as shown in figure.
DO NOT use rechargeable batteries.
BATTERIES TEST: Press and hold the
continuously until the button is released. If the light is off or blinks, the inserted batteries are low,
therefore they need replacement.
Do not leave exhausted batteries inserted, as liquid may leak and damage the remote control
If the remote control can not control the TV correctly, it is essential to set a specific code, it matched.
Identify the specific code and set it into the remote control using one of the following ways:
SMARTPHONE
TABLET - WEB
Keep this booklet for future reference
factory with a specific code.
to the chapter ACTIVATION OF REMOTE CONTROL.
SAFETY WARNINGS
INSERTING THE BATTERIES
5
button and check that the LED remains on
ACTIVATION OF REMOTE CONTROL
TLC EVO 3
SONY
digital television sets.
MANUAL
SELECTION
MANUAL
SEARCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC EVO 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MELICONI TLC EVO 3

Summary of Contents for MELICONI TLC EVO 3

  • Page 1 The TLC EVO 3 remote control is designed to command a digital television sets. The MELICONI remote control reproduces infrared signals corresponding to the original; the functions that operate in radio frequency (e.g. voice commands and pointers) are not supported.

  • Page 2: Manual Selection

    • Three final flashes indicate that the operation has been completed successfully. VERIFY Check that the MELICONI remote control operates your device in the main functions; if it does not, REPEAT the procedure. NOTE: When the list of codes to be searched is over, the remote control exits the search and the LED remains off.

  • Page 3: Buttons And Functions

    2. Enter the code 0707. 3. While the LED remains on, enter the code 1600. 4. While the LED flashes, within 30 seconds, on the MELICONI remote control press the button which you want to delete the function 5. Repeat the procedure from point 3 for each function you want to delete on MELICONI remote control.

  • Page 4: Child Mode

    • Enter the code 0123. • Three final flashes indicate that the operation has been completed successfully. To restore all the original functions, insert code 0123 on the Meliconi remote control.. RESET THE REMOTE CONTROL If necessary it is possible to completely reset the remote control and bring it back to the initial conditions.

  • Page 5: Troubleshooting (Faq)

    If some of the MAIN functions are not available, you are probably using an incorrect code. Find and set a more suitable code as described in the ACTIVATION OF REMOTE CONTROL chapter. Sometimes some functions of the original remote control are not directly present on the MELICONI remote control keypad. To enable them, operate as described in the BUTTON AND FUNCTIONS chapter.
