Quick Installation Guide
TS-S402

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS-S402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TS-S402

Summary of Contents for TRENDnet TS-S402

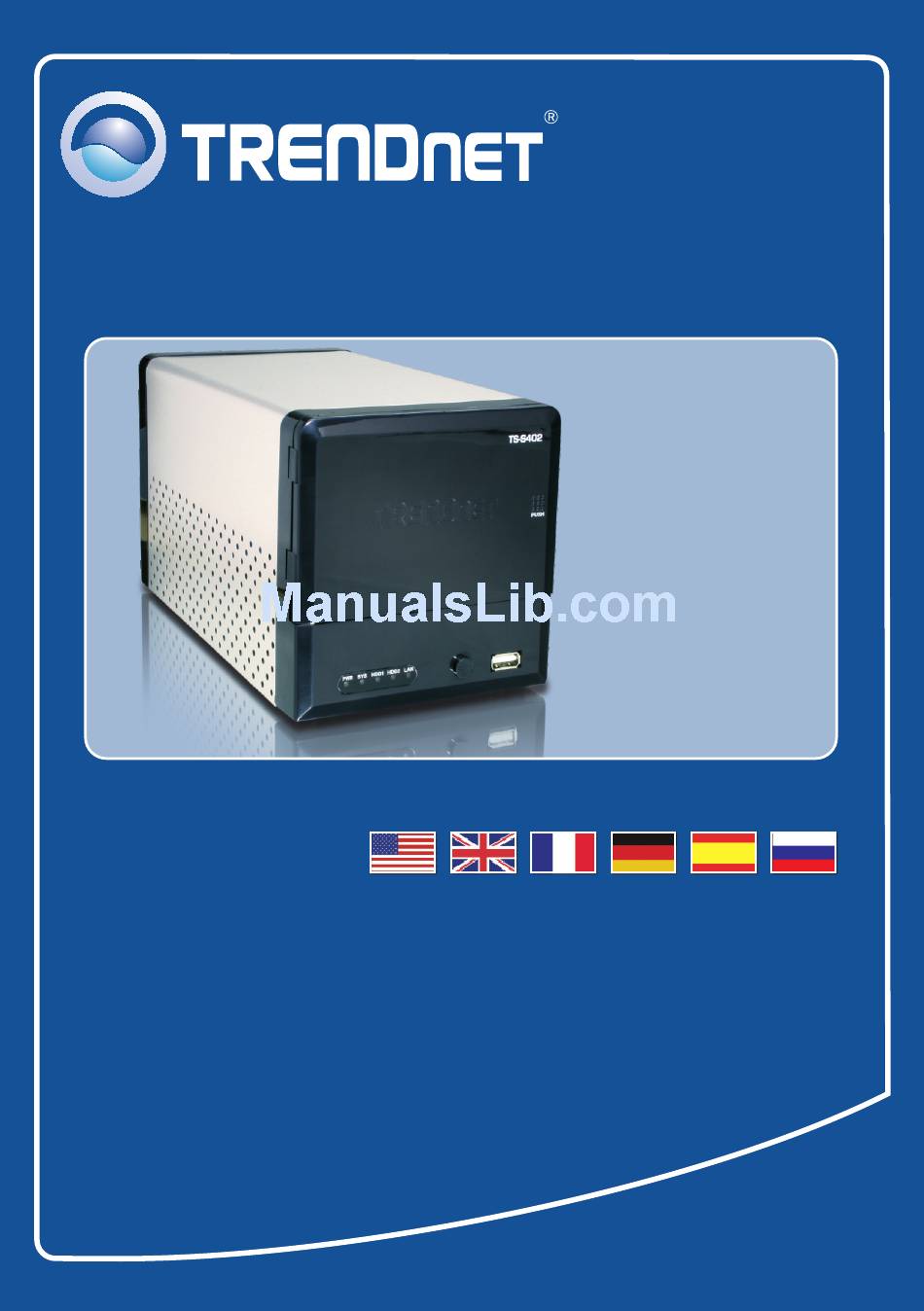

  • Page 1 Quick Installation Guide TS-S402...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ..................... 1. Before You Start ................. Hardware Installation ................. Configure the Storage Server ............4. Using the TS-S402 ................Troubleshooting ..................Version 11.28.2007...

  • Page 3: English

    1. Before You Start Package Contents TS-S402 Utility CD-ROM Quick Installation Guide Power Cord AC Power Adapter (12V DC, 7.0A) Mounting Brackets System Requirements Web Browser: Internet Explorer (6.0 or higher) A computer with a network adapter properly installed A network Switch or Hub with an available network LAN port A RJ-45 network cable.

  • Page 4: Hardware Installation

    2. Hardware Installation 1. Secure the supplied hard drive brackets to both sides of a 3.5” SATA hard drive using the provided screws. 2. On the front of the TS-S402, press push to open up the enclosure door. 3. Insert the hard drive into one of the two slots.
  • Page 5 Power, LAN, HDD. Your hardware installation is now complete. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet English...

  • Page 6: Configure The Storage Server

    3. Configure the Storage Server Note: It is recommended that you configure the Storage Server from a wired computer. Since the Storage Server's default IP address is 192.168.10.10, make sure no other network devices are assigned an IP address of 192.168.10.10.
  • Page 7 5. Click Yes. 6. Enter the administrator User ID and Password. Then click Login. By default: User: admin Password: admin 7. Select the Format Type (e.g. EXT2, EXT3) and then click Next. 8. Click OK to continue. 9. Click Finish. English...
  • Page 8 Note: The IP Address must match the network segment of your network. Your configuration is now complete. For detailed information regarding the TS-S402 configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. English...

  • Page 9: Using The Ts-S402

    4. Using the TS-S402 Add User 1. In the browser configuration, click Share Management, then user management. Then click on the green plus sign. If you are creating a shared folder, skip this step and continue on to Create Folder. 2.
  • Page 10 Create Folder 1. Click Share Management, then click Share Folder. Select the Disk Name, and enter a Folder Name. Shared Folder Select Anonymous, and then click apply. Private Folder Click Private Folder. Select a user, then click Add New User. Click Read Only to give read only access, then click Apply.
  • Page 11 3. Right click the folder and click Mount. 4. If you are accessing a private folder, this window will appear. Click OK. 5. Select an available Drive (e.g. Z:) and click Finish. 6. Double-click the folder (e.g. share <Z:>. Z represents the available Drive that you selected in step 2.) English...
  • Page 12 7. Repeat steps 1-7 on each Windows PC. Backup data on USB drives to share folder on hard drive 1. Press the Backup button on the front of the storage server until the SYS and HDD /HDD2 LEDs are blinking. 2.
  • Page 13 Setting up iTunes Server 1. In the browser configuration for the TS-S402, click on Configuration, then click Server Preference. By default, iTunes is enabled. If iTunes is disabled, select Enable and then click Apply. 2. Click Service Configuration and then click iTunes Server. Enter a iTunes Server Name, select a Share Folder and enter a refresh time (seconds).

  • Page 14: Troubleshooting

    Troubleshooting Can I connect or disconnect the USB storage device while the TS-S402 is on? Yes, you can connect or disconnect any external USB device while the computer is on, because the USB interfaces are Plug-and-Play and hot-pluggable. The NAS utility is unable to detect the Storage Server. What should I do? First, check your hardware settings again by following the instructions in section 2.
  • Page 15 What should I do? Make sure you are using CAT-5e or CAT-6 Ethernet Cables. Some CAT-5 cables are not rated to run in Gigabit. If you still encounter problems or have any questions regarding the TS-S402, please contact TRENDnet's Technical Support Department.
  • Page 16 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 17 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
