LHZ -03 Installation Instructions Manual page 20

EMG WIRING HARNESS COLORS:
BLACK: Negative
WHITE: Output
NOTE: Wiring diagram shows gray
wire instead of white for printing
legibility.
BRIDGE PICKUP
(EMG PASSIVE)
NECK PICKUP
(EMG PASSIVE)
TO BRIDGE
GROUND
LHZ-03 INSTALLATION INSTRUCTIONS
Revision 1.9

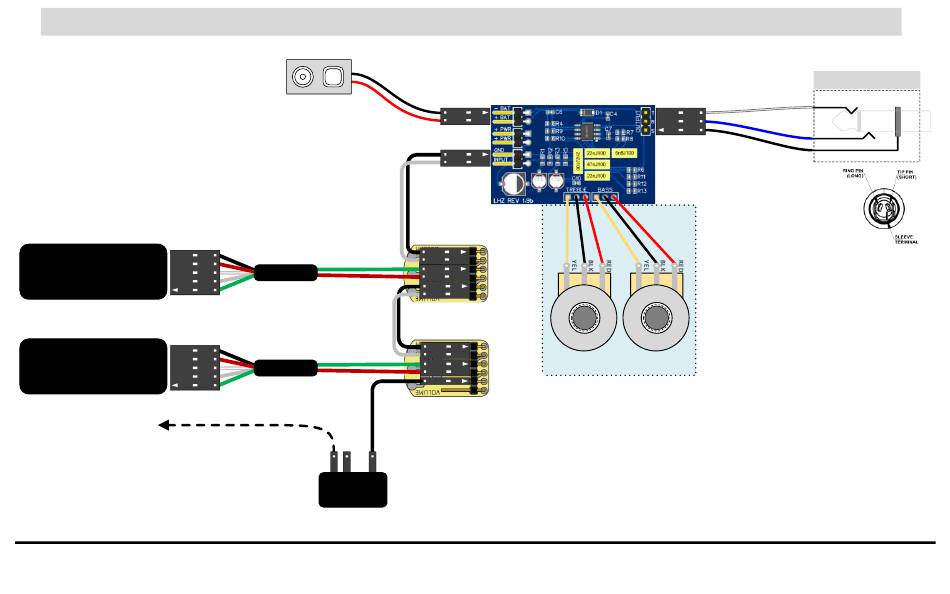

HUMBUCKER PICKUPS: DUAL VOLUME (EMG MODULAR)
9 VOLT
BR VOLUME
EMG B159
VOLUME
NK VOLUME
EMG B159
VOLUME
GROUND
BUSS
BASS & TREBLE
PREWIRED TO
LHZ BOARD
3 2 1 3 2 1
TREBLE BASS
100K 100K
LINEAR TAPER, LINEAR TAPER,
CENTER DETENT CENTER DETENT
SWITCHCRAFT 152B
T
(SHORT PIN)
R
(LONG PIN)
S
(SLEEVE TERMINAL)
20 of 28
Last Revised: 10/03/2024
