Cub Cadet V460 Series Operator's Manual

Self propelled mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
O
'
M
peratOr
s
anual

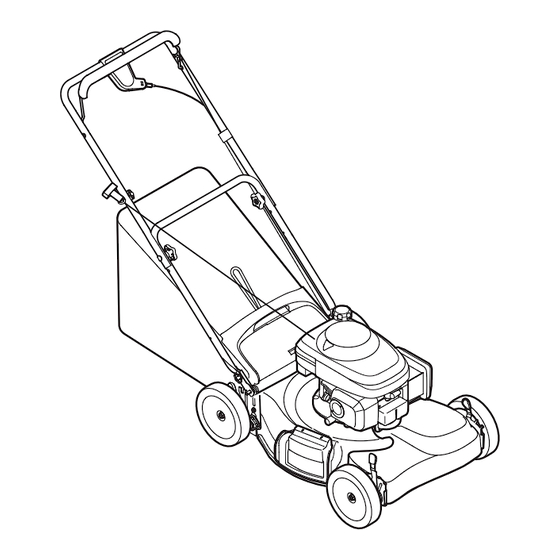

Self Propelled Mower — Model Series V460
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-03729
(December 12, 2007)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V460 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cub Cadet V460 Series

Summary of Contents for Cub Cadet V460 Series

  • Page 1 READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-03729...

  • Page 2: Table Of Contents

    Visit us on the web at www.cubcadet.com ◊ Call a Customer Support Representative at (800) 965-4CUB ◊ Locate your nearest Cub Cadet Dealer at (877) 282-8684 ◊ Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019...

  • Page 3: Safe Operation Practices

    Important Safe Operation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 A missing or damaged discharge cover can cause blade When starting engine, pull cord slowly until resistance contact or thrown object injuries. is felt, then pull rapidly. Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than Many injuries occur as a result of the mower being pulled you can let go.
  • Page 5 Service Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade Safe Handling Of Gasoline: for damage (e.g., bent, cracked, worn) Replace blade with the original equipment manufacture’s (O.E.M.) blade only, To avoid personal injury or property damage use extreme listed in this manual.

  • Page 6: Spark Arrestor

    Spark Arrestor Average Useful Life WARNING: According to the Consumer Products Safety Commission This machine is equipped with an (CPSC) and the U.S. Environmental Protection Agency (EPA), internal combustion engine and should not be used this product has an Average Useful Life of seven (7) years, or 140 on or near any unimproved forest-covered, brush hours of operation.
  • Page 7 2 — i ectiOn MpOrtant peratiOn ractices...

  • Page 8: Assembly & Set-Up

    Assembly & Set-Up Contents of Carton • One Lawn Mower • One Lawn Mower Operator’s Manual • One Bottle of Oil • One Grass Catcher • One Engine Operator’s Manual • One Hardware Pack • One Side Discharge Chute Assembly Insert a carriage bolt from the hardware pack into the upper hole on the handle mounting bracket.
  • Page 9 The rope guide is attached to the right side of the upper Slip plastic channel of grass bag over hooks on the handle. See Fig. 3-3. Loosen the wing nut which secures the frame. See Fig. 3-4. All the plastic channels except rope guide.
  • Page 10 Adjustments Side Discharge Chute Your mower is shipped as a mulcher. To convert to side Cutting Height discharge, make sure grass catcher is off of the unit and rear discharge door is closed. Each wheel has a height adjustment lever to change the cutting height of the mower.

  • Page 11: Controls & Features

    Controls and Features Blade Control Drive Control Recoil Starter Side Discharge Chute Mulch Plug Cutting Height Adjustment Levers Figure 4-1 Mulch Plug Blade Control The mulch plug is used for mulching purposes. Instead of The blade control is attached to the upper handle of the mower. collecting the grass clippings in a grass catcher or using the Depress and squeeze it against the upper handle to operate the side discharge chute, some mower models have the option...

  • Page 12: Operation

    Operation Starting Engine WARNING: Be sure no one other than the operator is standing near the lawn mower while starting engine or operating mower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
  • Page 13 Using Your Lawn Mower Using Grass Catcher Be sure lawn is clear of stones, sticks, wire, or other objects You can use the grass catcher to collect clippings while you are which could damage lawn mower or engine. Such objects could operating the mower.

  • Page 14: Maintenance & Adjustment

    Maintenance & Adjustments Maintenance Lubricate the wheels at least once a season with light oil (or motor oil). If wheels are removed for any reason, lubricate General Recommendations surface of the pivot arm and inner surface of the wheel with light oil. See Fig. 6-1. •...
  • Page 15 Replacing Rear Flap Engine Care A list of key engine maintenance jobs required for good To remove rear flap, lift rear door, and press flap in on performance by the mower is given below. Follow the either side to remove from hole. See Fig. 6-2. accompanying engine manual for a detailed list and instructions.

  • Page 16: Service

    Service Blade Care Lubricate the engine crankshaft and the inner surface of the blade adapter with light oil. Slide the blade adapter WARNING: onto the engine crankshaft. Place the blade on the adapter When removing the cutting blade for sharpening or replacement, protect your hands with such that the side of the blade marked “Bottom”...

  • Page 17: Off-Season Storage

    Press inward on tab on the engine baffle to release it from Replace with new belt, making sure belt is firmly seated on the baffle bracket. See Fig. 7-3. engine pulley while pulling from the other side and sliding it around the transmission pulley. Reattach engine baffle and reassemble blade as described in the previous section.

  • Page 18: Troubleshooting

    Troubleshooting Problem Cause Remedy Engine Fails to start Blade control disengaged. Engage blade control. Spark plug boot disconnected. Connect wire to spark boot. Fuel tank empty or stale fuel. Fill tank with clean, fresh gasoline. Engine not primed (if equipped with primer). Prime engine as instructed in the Operation section.
  • Page 19 Troubleshooting Problem Cause Remedy Uneven cut Wheels not positioned correctly. Place all four wheels in same height position (if equipped with individual height adjusters). Dull blade. Sharpen or replace blade. Mower will not self propel Belt not installed properly. Check belt for proper pulley installation and movement.

  • Page 20: Illustrated Parts List

    Model Series V460...
  • Page 21 Model Series V460 Part Number Description Part Number Description 753-05096A Drive Control Assembly 710-04329 Screw, .159 OD x .610 749-0928A Lower Handle 787-01593 Engine Baffle Bracket 736-0447 Washer, Wave, 1.5 x 1.0 x .029 710-0703 Carriage Bolt 1/4-20 731-06029 Engine Baffle 617-04377A Transmission Assembly 710-0599...
  • Page 22 Notes...
  • Page 23 Notes...

  • Page 24: Warranty
