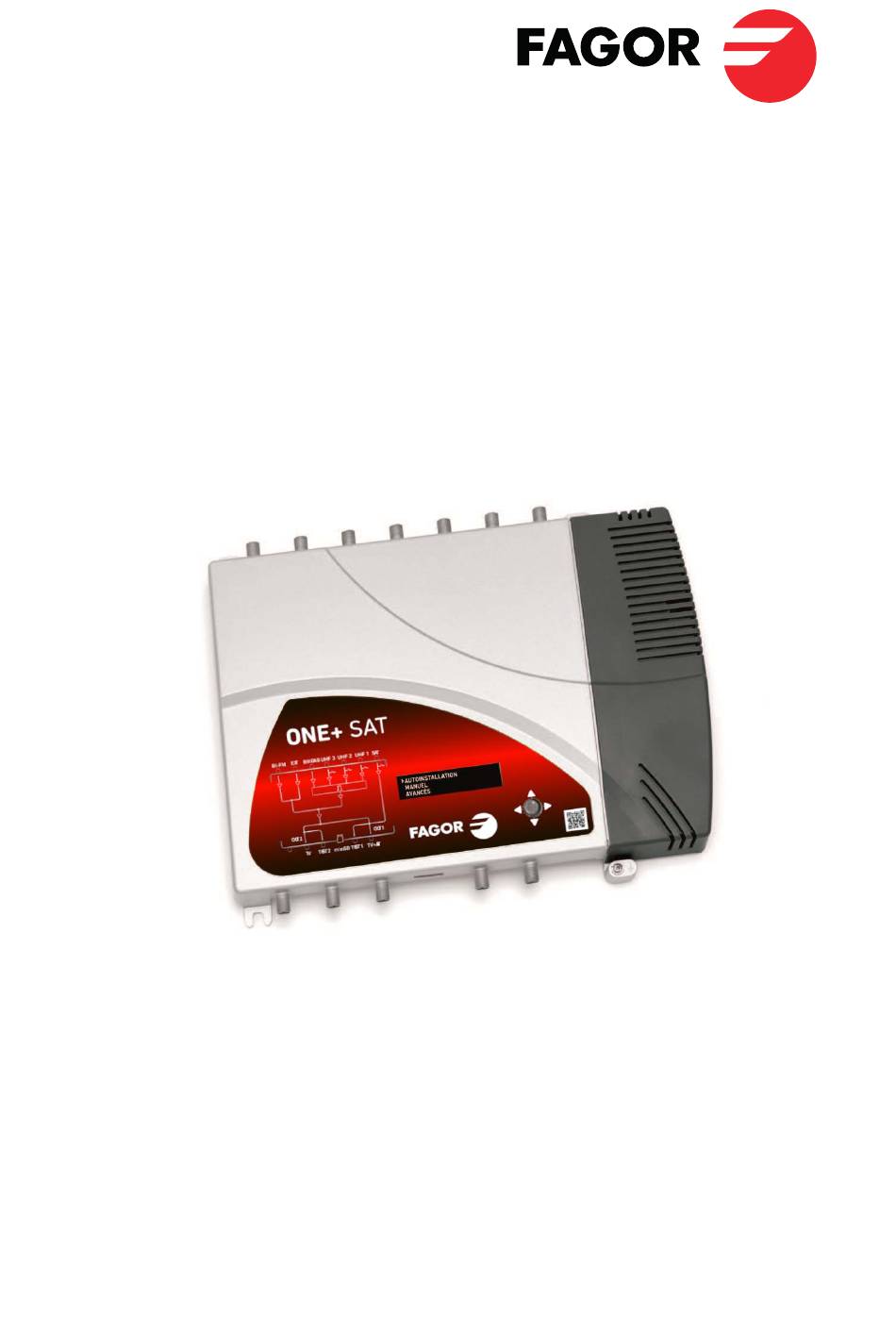

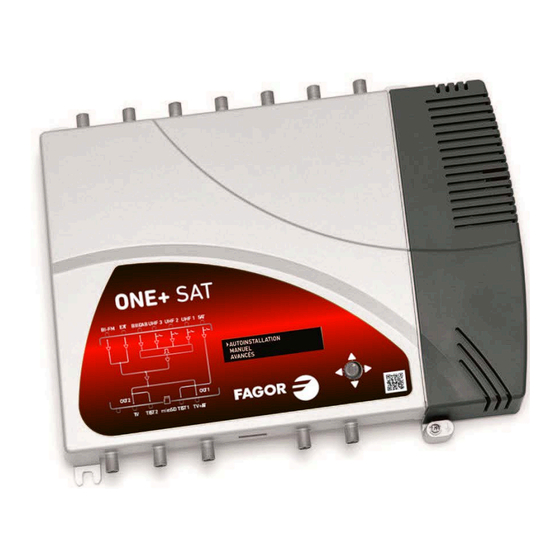

- Page 1 Configuration and setting guide Serie ONE+ ONE+ REF. 2865 ONE+ SAT REF. 2864 Firmware ONE+_v3.0.1...
-
Page 2: Table Of Contents
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 Index 1. INTRODUCTION.............................3 1.1 General safety instructions ....................3 1.2 Installation environment recommendations ............4 1.3 Description of the module ....................4 1.3.1 General description ................4 1.3.2 Main characteristics ................5 2. OLED INTERFACE ..........................5 2.1 General use of the equipment ..................5... -
Page 3: Introduction
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ 1. INTRODUCTION This document explains how to install the programmable digital amplifie s from the ONE+ family. The document describes how to configu e the amplifie . To do this, fi stly, the physical installation is ex- plained. -
Page 4: Installation Environment Recommendations
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 1.2 Installation environment recommendations The headend is for indoor use only. Do not plug in the headend in moist rooms. Never operate the headend immediately after moving it from a cold location to a hot location. When the device is exposed to such a change in temperature, moisture may condense on the crucial internal parts. -
Page 5: Main Characteristics
In addition to UHF signals, FM and VHF signals are also amplified The ONE+SAT model also amplifies FI sate lite sig- nals, as well as signals from an extension input. The individual adjustment of each fi ter allows them to be adapted to the specific situations of each TV channel in question, in addition to offering the possibility of being able to work i converter mode, transferring the TV channel to diffe ent frequency from the original one. - Page 6 Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 Vertical button movement In the menus and submenus, move the button up or down to browse upwards and downwards position by position. In the settings, move the button up or down to modify values position by position.
-
Page 7: Quick Menu Guide
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ 2.2 Quick menu guide UHF1/UHF2/UHF3 Autoinstall Vcc OFF FILTER 1 C21 474.000 + LTE2 5G FILER 2 C__ ___.___ + LTE1 4G ENTIRE UHF INPUT C21 474.000 OUTPUT C21 474.000 WIDTH 1 CH 8 MHz... -
Page 8: Regional Adjustments
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 2.3 Regional adjustments The fi st time the equipment is turned on, or after deleting the configu ation to restore the factory settings, the fi st screen shown allows the values related to a specific ountry to be adjusted. -
Page 9: Manual Installation
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ Detected channels UHF 1: 7 UHF 2: 1 UHF 3: 1 BIII: 0 2.5 Manual installation Using the manual installation, the headend may be completely configu ed, including the inputs and outputs that... -
Page 10: Biii
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 INPUT C21 474.000 OUTPUT C21 474.000 WIDTH 1 CH 8 MHz The parameters that may be modified a e: INPUT: input channel that is to be fi tered OUTPUT: output channel on which the signal will be sent ... -
Page 11: Bi/Fm
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ The adjustable parameters are: Vcc: this allows the voltage and tone that will be injected on the SAT input cable to be defined aimed at powe- ring/switching the LNB. Select BYPASS if you do not want to feed the LNB or if you wish to move the unicable signalling existing on the OUT 1 output to the SAT input. -
Page 12: Device Info
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 A screen will appear with the following sub-menus: DEVICE INFO: this allows constructive data from the equipment to be shown (serial No., manufacture date, fir ware version), as well as information related to its current status (hours of operation, alarms). -
Page 13: Uhf Pre-Amp Power
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ SAVE CONFIGURATION SAVE STATUS INF. D ELETE FILES The diffe ent actions that may be carried out on the microSD card are: FW UPGRADE: select this option to update the amplifie ’s fir ware. To do this, store the fir ware file with th new version on the microSD memory card in the ONE\Firmware folder beforehand. -
Page 14: Smart Amp. Control
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 2.6.4 Smart amp. control This sub-menu allows the behaviour mode of the equipment to be configu ed when it must amplify signals with very low power levels. It also manages the behavior of the amplifier when the signal disappea s on channels that have been assigned a fi ter. -
Page 15: Default Config
Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ 2.6.6 Default config This sub-menu deletes the amplifie ’s current configu ation, loading the default configu ation, (factory settings). Take care when using this option, since the entire previous configu ation will be lost. To access this configu ation, select the DEFAULT CONFIG. -
Page 16: Replacing The Power Supply
Configuration and setting guide Serie ONE+ Firmware ONE+_v3.0.1 3. REPLACING THE POWER SUPPLY 1. Disconnect from the power network DANGER 2. Loosen screws T1, T2 and T3 (fig 1) 3. Press the tabs P1 and P2 while sliding the power supply downwards, on its guides (fig 2) 4. - Page 17 Firmware ONE+_v3.0.1 Configuration and setting guide Serie ONE+ FAGOR MULTIMEDIA SOLUTIONS, SL Araba Hiribidea, 34 20500 Arrasate, Gipuzkoa Spain Tel.: +34 943 44 88 95 support@fagormultimedia.com www.fagormultimedia.com Configuration and setting guide Serie ONE+...
