CMT ORANGE TOOLS CMT335 Quick Start Manual

CMT335
PORTABLE 35mm HINGE BORING JIG

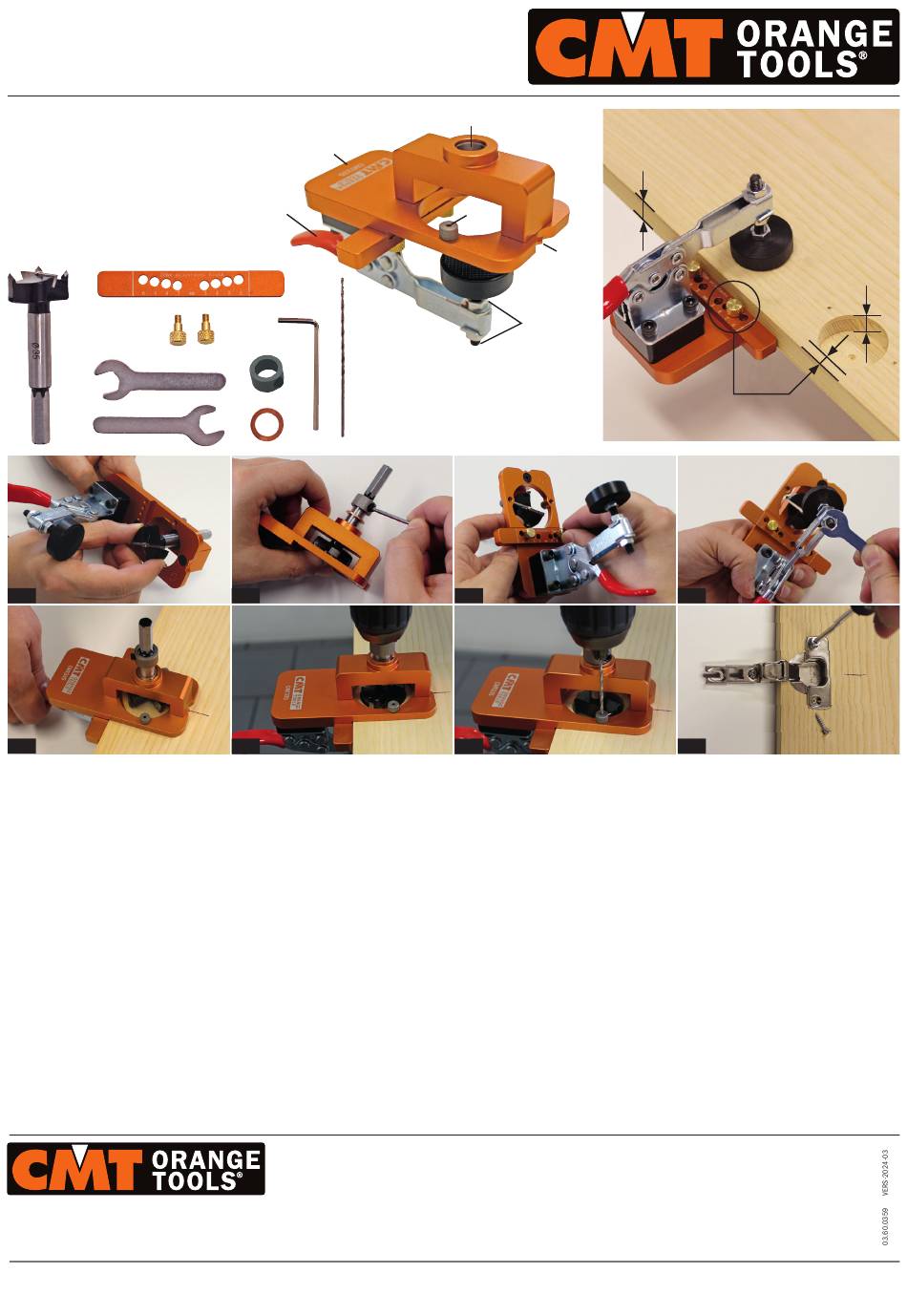

J. Portable 35mm Hinge Boring Jig
A. 35mm Hinge Boring Bit (CMT335-35)
B. Adjustable Distance Bar
C. Screw for Adjustable Distance Bar (2 pcs.)
D. 10mm Wrench (2 pcs.)
E. Spacer
F. Depth Collar
G. Hex Key 3mm
H. 2mm Drill Bit
A
C
D
1
6-7
EN - CMT335 – Portable 35mm Hinge Boring Jig
INSTRUCTIONS FOR USE
1. Lift the quick lever clamp [L] of the CMT335 (J) and insert the 35mm Hinge Boring Bit [A] with tip/cutting edge side up, into the hole
where the 12mm bearing [N] is housed.
2. Insert the spacer [E] and depth collar [F] on the shank of bit, then with the hex key [G] tighten the screw on the depth collar to lock it in
place.
3. Depending on the hinge model, adjust the desired drilling depth (max 13mm) by moving the depth collar [F].
4. Assemble the Adjustable Distance Bar [B] using the screws [C].
The arrows on the bar must point towards the Hinge Boring Bit.
The distance between the main hole and the panel's edge can be adjusted by changing the screws' positions in their respective holes (3-
4-5-6 mm) depending on the hinge model (the most common setting is at 5mm).
5. By loosening and tightening the nuts [M] with the 10mm Wrenches [D], you can determine the thickness (from 12 to 25 mm) of the ma-
terial you need to clamp with your jig.
6. Draw a reference line on the work piece. This line must correspond to the center hole of hinge bracket.
7. Secure your jig CMT335 to the work piece using the lever [L] and with the help of the reference spur [P]. Center it on the reference line.
8. Connect your drill to the Hinge Boring Bit and pressing the tool downwards, create the main hole for the hinge.
9. Mount the 2 mm Drill Bit [H] on your drill and make two small reference holes using the specific bushings [R].
10. Mount your hinge by securing it with two screws. The job is done.
THE PORTABLE HINGE BORING JIG CMT335 IS EXCLUSIVELY COMPATIBLE WITH 35MM HINGE BIT (Item: CMT335-35).
C.M.T. UTENSILI S.p.A.
Via della Meccanica, sn
61122 Pesaro (PU) - Italia
© C.M.T. UTENSILI S.P.A. Questo documento Vi è stato inviato solo ad uso personale. Qualsiasi altro uso e/o riproduzione di esso è vietata senza preventiva autorizzazione scritta rilasciata da C.M.T. UTENSILI S.P.A.
J
L
B
H
G
F
E
2-3
8
Phone #39 0721 48571
Fax #39 0721 481021
® : CMT, i loghi CMT, CMT ORANGE TOOLS e il colore arancio del rivestimento della superficie degli utensili sono marchi registrati di C.M.T. Utensili S.P.A.
® : CMT, the CMT logo and the orange color applied to tool surfaces are trademarks of C.M.T. UTENSILI S.P.A.
© C.M.T. UTENSILI S.P.A. This document has been sent for your personal use only. All usage and reproduction is forbidden without written permission from C.M.T. UTENSILI S.P.A.
N
12~25mm
R
P
M
4
9
info@cmtorangetools.com
www.cmtorangetools.com
h Max
13mm
3-4-5-6mm
5
10
