freor Leda Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
FREEZER
LEDA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leda and is the answer not in the manual?

Questions and answers

Related Manuals for freor Leda

Summary of Contents for freor Leda

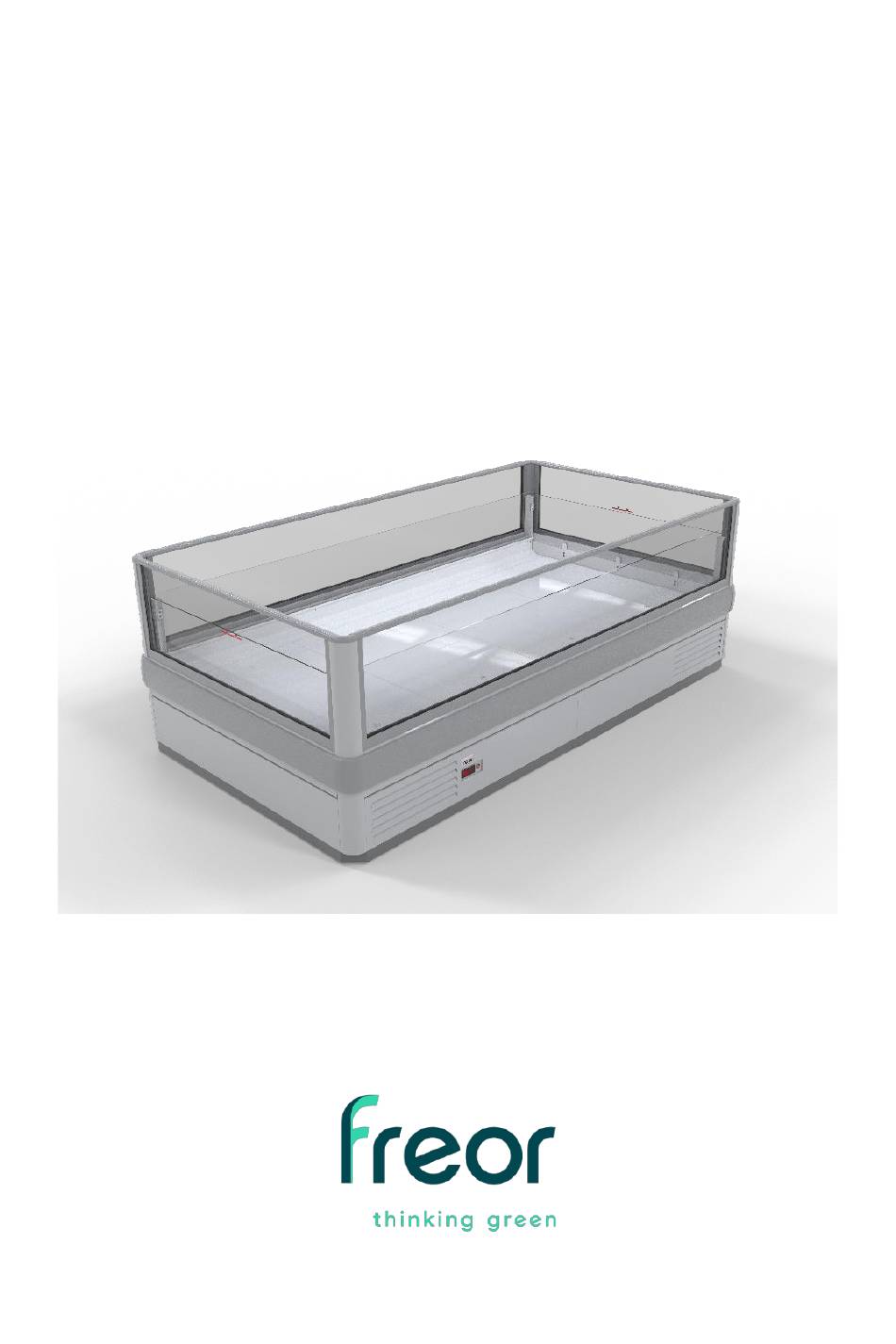

  • Page 1 OPERATION MANUAL FREEZER LEDA...

  • Page 2: Table Of Contents

    2.9. Unpacking and use ................. 12 2.10. Requirements for setting down the freezer ........12 UNPACKING ................... 13 INSTALATION OF THE FREEZER LEDA ............. 14 UPLOADING LEVEL ................. 22 CONNECTION OF THE POWER SUPPLY ............ 22 6.1. Connecting the unit to the power supply ........... 22 GENERAL INSTRUCTIONS FOR OPERATION ..........
  • Page 3 INFORMATION ABOUT MAINTENANCE OF THE FREEZER ......26 9.1. Information on temperatures ............26 9.2. Defrosting ..................27 9.3. Cleaning ..................27 9.4. Sanitary day ................... 27 10. ENERGY SAVING ..................28 11. DISPOSAL ....................28 12. STORAGE ....................28 13.

  • Page 4: General Information

    GENERAL INFORMATION 1.1. Manufacturer information FREOR LT, UAB Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania Manufacturer, T: +370 5 232 9188 address Made in Lithuania Customer Installation date Installation place Start of the product operation [PLACE FOR PRODUCT LABEL]...
  • Page 5 • The user instruction of the freezer Leda must be kept at the place of operation. It must be available to technical staff, service personnel and repair specialists at any time of the day.

  • Page 6: Dimensions

    1.2. Dimensions Fig. 2. Dimensions of Leda Fig. 3. Dimensions of Leda SS1 Fig. 4. Dimensions of Leda SS2...

  • Page 7: Package Dimensions

    1.3. Package dimensions Fig. 5. Leda 3750 package dimensions Length of Package length Package height Package width freezer (default modul) 3750 (mm) 3970 (mm) 984 (mm) 1500 (mm) 2500(mm) 2720 (mm) 984 (mm) 1500 (mm) 1880 (mm) 2095 (mm) 984 (mm)

  • Page 8: Safety

    SAFETY 2.1. Dangers of misuse • Only start up and operate the appliance once it has been properly set up and installed and has no obvious defects. • Do not make any technical changes to the appliance. • Do not store any explosive substances, such as aerosol containers with flammable propellant gas, in the freezer.

  • Page 9: Material Damage During Prolonged Shutdown

    • Disconnect the unit prior to all maintenance, service, or repair work. • Disposal of the unit must be performed following Waste & Disposal-Recycling Regulations requirements. Failure to comply with safety requirements could lead to potential health injuries and safety risks. 2.3.

  • Page 10: Electrical Voltage

    2.5. Electrical voltage Only qualified staff may carry out work on the electrical system. In the event of fault messages or damage to the freezer, contact the maintenance service. Electrical safety guidelines: • Do not connect a damaged appliance or damaged parts (such as connecting cables) to the power supply.
  • Page 11 Fig. 6. Unsuitable ambient conditions...

  • Page 12: Intended Use

    2.8. Intended use Leda freezer must be protected against external mechanical damage. The shelf load may not exceed the set values. Frozen products, except ice cream ≤-18 о Ice cream prepacked in blocks ≤-18 о Ice cream, portions ≤-10 о...

  • Page 13: Unpacking

    UNPACKING Size 17 15 min Unload the freezer; Unscrew and remove the unit from the pallet;...

  • Page 14: Instalation Of The Freezer Leda

    INSTALATION OF THE FREEZER LEDA Size 17, 32 Install plastic legs; Using the front and rear legs, perform horizontal and vertical pre-adjustment of the freezer. The leg is adjustable 5 cm. Using the level, perform horizontal and vertical pre- adjustment of...
  • Page 15 Remove all bottom shelves; Remove all inner glass panels; Remove all inner decorations, as shown in the figure;...
  • Page 16 Remove the indicated shelf trays; Unscrew and remove the evaporator revision covers on both freezers at the sides of junction; Put the steel guides, needed for more precise connection, to the lower plastic handrails. Put guides to the upper handrails when it is being attached (see further steps);...
  • Page 17 Put the plastic plates to the indicated places; Apply adhesive foam tape to seal the junction; Apply silicone, as shown in the picture, to seal the junction;...
  • Page 18 Push the freezers together; To achieve a more robust connection, compress the freezer legs; Connect the glass stands with connection bracket;...
  • Page 19 Insert threaded rods with washers into the indicated places and tighten them with the wrench. Threaded rod M10x90 DIN 976; Insert threaded rods with washers into the indicated places and tighten them with the wrench. Threaded rod M8x90 DIN 976; Secure the threaded staples to the dust cover;...
  • Page 20 Connect the dust covers using the self- cutting screws M4x13 DIN 968; Put on the side dust covers and fasten them with the self- cutting screws M4x13 DIN 968; Put on the end dust covers and fasten them with the self- cutting screws M4x13 DIN 968;...
  • Page 21 Attach the plastic bumpers; Apply double sided adhesive tape to the glass packs; Attach the handrails;...

  • Page 22: Uploading Level

    UPLOADING LEVEL Freezers Leda is equipped with shelves, the maximum allowable loads of which are specified in the principal layout (Fig. 8.). Maximum allowable uploading level is specified in chapter 1.2. It is forbidden to exceed the indicated values.

  • Page 23: General Instructions For Operation

    • The power supply voltage and frequency must match the specifications on the technical data sticker. • Do not connect a damaged unit or damaged parts (such as electrical cables) to the power supply. • Only connect the unit to a mains circuit with protective grounding. •...
  • Page 24 • Uploading and loading of products. The products must be evenly distributed in the internal space of refrigerated area; it is not recommended to leave free space on the shelves of the freezer or to overload the shelves on one side and underload on the other ones.

  • Page 25: Operation

    7.2. Operation • The freezer Leda is installed in the shopping premises at a predefined location. • The units must be interconnected in accordance with the furniture installation manual. • Connection of the condensate drainage systems. • Connection of the glycol circuit in accordance with the piping installation instructions.

  • Page 26: Assembly Of The Condensation Unit

    8.2. Assembly of the condensation unit Attach the siphon on the condensation outlet pipe; Attach the condensate drain elbow on outlet pipe; INFORMATION ABOUT MAINTENANCE OF THE FREEZER 9.1. Information on temperatures Prior uploading of products into the freezer, it is necessary to set temperature to be maintained in the internal space of the freezer.

  • Page 27: Defrosting

    9.2. Defrosting Warm ambient air can get into freezers. It is particularly probable when the showcase is open. Due to it, evaporator can frost. Evaporators must be regularly defrosted in accordance with programs set in the control. During the defrosting refrigeration is not run.

  • Page 28: Energy Saving

    • Make sure that defrosting is in progress. • Remove the products from the freezer, and temporarily place them in the freezer compartment. • Disconnect electrical installations. • Remove the bottom shelves, air circulation grids, and evaporator covers. • Clean the ventilator of the freezer from plaque. Clean foreign bodies from the structures of the evaporator and ventilators.

  • Page 29: Transportation

    15. ACCESSORIES Most of FREOR LT supplied equipment may be ordered with many special accessories, such as partitions, tabs, price holders, a drainage collection tub, evaporation baths, safety bumpers, etc. For more information, please call FREOR LT or sales partner.

  • Page 30: Technical Data

    16. TECHNICAL DATA 16.1. Electrical layouts Find inside electric box. 16.2. Failures and troubleshooting Repair of the internal freezing coil of the freezer, checking of the refrigerant amount and replacement of parts may only be carried out by a specialist qualified to work with F and OAM gases. Only an electrician with the respective qualification may carry out inspection and repair of electrical installation.

  • Page 31: Symbols

    17. SYMBOLS Symbol Meaning Type Qualified specialist Work clothing Protective gloves Brittle surfaces; Wrench Sizes: 17, 32 Screwdriver Rubber hammer Protective goggles Silicone pistol Clamp...
  • Page 32 FREOR LT, UAB Manufacturer of the commercial refrigeration equipment Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania T: +370 5 232 9188 E: sales@freor.com www.freor.com DOM-40XXX-0XXXXE_v1.2 FREOR LT is not affiliated with Chemours or FREON.

This manual is also suitable for:

Leda ss1Leda ss2
