freor VEGA SPACE QB Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
SERVE-OVER
VEGA SPACE QB
FREEZER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA SPACE QB and is the answer not in the manual?

Questions and answers

Related Manuals for freor VEGA SPACE QB

Summary of Contents for freor VEGA SPACE QB

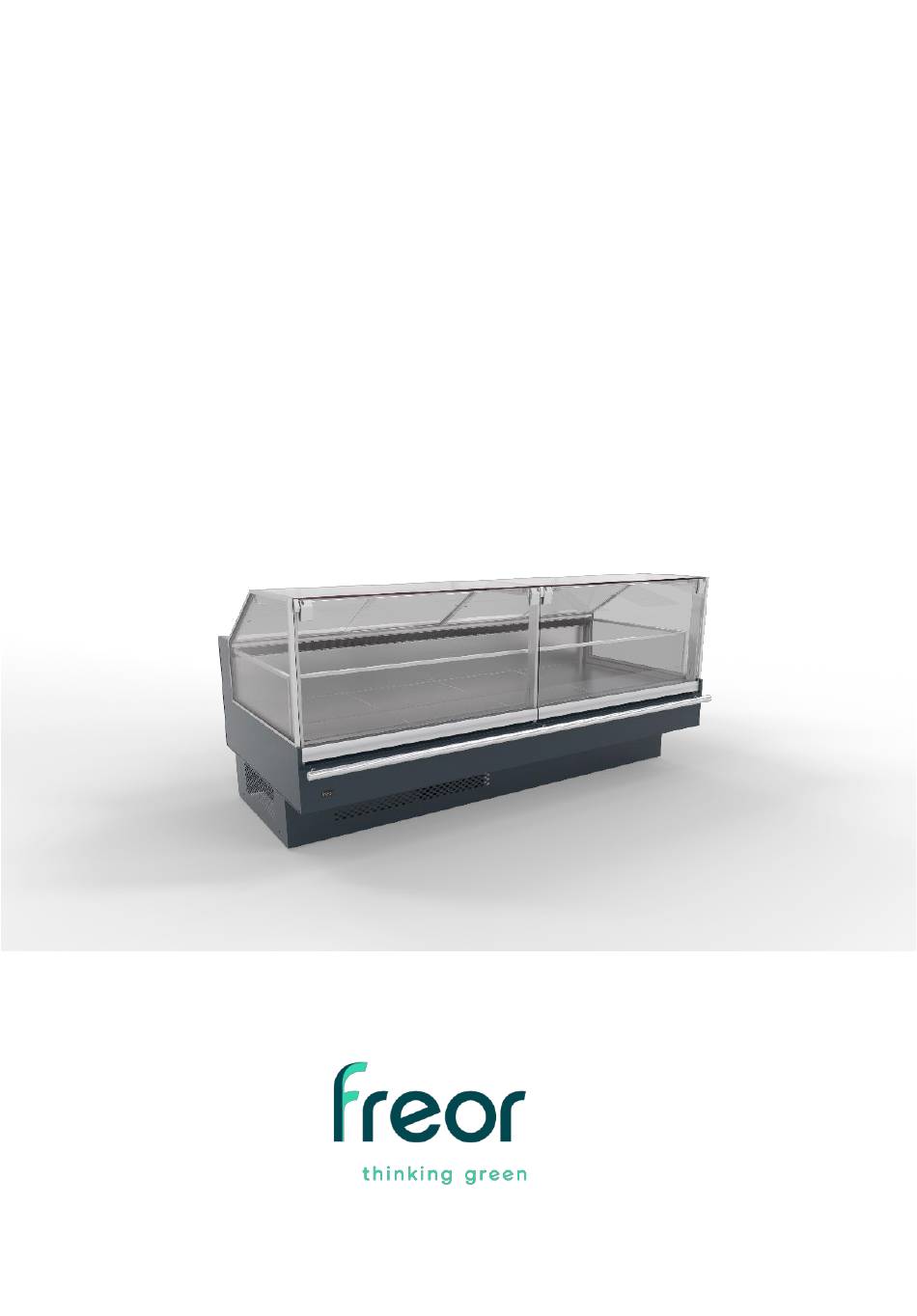

  • Page 1 OPERATION MANUAL SERVE-OVER VEGA SPACE QB FREEZER...

  • Page 2: Table Of Contents

    5.1. Installation of the dust covers (optional) ........... 21 5.2. Installation of the leg panels (optional) ..........22 GLASS STAND ADJUSTMENT ON VEGA Space QB Freezer LU ..... 24 6.1. Connecting the unit to the power supply ........... 25 DRAINAGE ..................... 25 7.1.
  • Page 3 8.1. Maintenance .................. 25 8.2. Defrosting ..................25 8.3. Cleaning ..................26 ENERGY SAVING ..................27 10. DISPOSAL ....................27 11. STORAGE ....................27 12. TRANSPORTATION ................. 27 13. TESTING ....................28 14. ACCESSORIES ..................28 15. TECHNICAL DATA .................. 28 15.1.

  • Page 4: General Information

    GENERAL INFORMATION 1.1. Manufacturer information FREOR LT, UAB Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania Manufacturer, T: +370 5 232 9188 address Made in Lithuania Customer Installation date Installation place Start of the product operation [PLACE FOR PRODUCT LABEL]...
  • Page 5 • The operation manual of the freezer Vega Space QB Freezer must be kept at the place of operation. It must be available to technical personnel, service personnel and repair specialists at any time.

  • Page 6: Dimensions

    1.2. Dimensions Fig. 2. Dimensions of Vega Space QB Freezer LU...

  • Page 7: Package Dimensions

    1.3. Package dimensions Fig. 4. Vega Space QB Freezer package dimensions. Length of serve-over Length of package (X) 3750 (mm) 3900 (mm) 2500 (mm) 2650 (mm) 1880 (mm) 1880 (mm) 1250 (mm) 1450 (mm) SAFETY 2.1. Dangers due to misuse •...

  • Page 8: Refrigerants

    • Use a damp cloth or sponge to remove condensation water and for cleaning. Do not use dry clothes or sponges to dry the unit (Risk of electrostatic charge and sparking). • Before starting-up and restarting, fill the drain with approx. 2 litres of water. Prevents carry-over of refrigerant into drains.

  • Page 9: Personal Protective Equipment

    • Check that the unit is in proper condition. Any damage must be repaired immediately. • In the event of a power failure, stored products must be inspected by the operating company (temperature check). • Check the area in which goods are placed for foreign objects. Remove goods stored incorrectly immediately.

  • Page 10: Refrigerant Circuit

    Applicable standards and safety instructions. The power supply voltage and frequency must match the specifications on the technical data sticker. • Only trained operating personnel may disconnect the unit. • Observe the following safety rules if the unit is damaged during operation or prior to maintenance: Disconnect the unit (switch off all sources of electrical power).

  • Page 11: Purpose Of Use

    о Ice cream, portions ≤ о The freezer Vega Space QB Freezer as to be protected against external mechanical damage. Shelf load may not exceed established norms. If used for unintended purpose the manufacturer will be exempted from warranty obligations.
  • Page 12 Size 17 15 min Use appropriate equipment for unit transportation (refer to unit weight and dimension information). Lift the serve-over. Remove pallet’s screws. Pick up the freezer.
  • Page 13 Install the plastic legs. Lower the serve-over.

  • Page 14: Installation

    INSTALLATION 4.1. Requirements for installation the freezer Installation of the unit must be performed following next requirements: • The unit must be aligned horizontally (both depth and length) and installed in the stable position. • Set up the unit only on the designated adjustable legs. •...

  • Page 15: Installation Of Vega Space Qb Freezer Lu

    4.2. Installation of Vega Space QB Freezer LU Size 17, 32 Using the front and rear legs, perform horizontal and vertical pre-adjustment of the serve-over. The legs are adjustable up to 5 cm.
  • Page 16 Apply the foam tape around perimeter of connection. Apply silicone to seal the perimeter of connection.
  • Page 17 Push the serve-overs together. With help of a level, check if both serve-overs are horizontal.
  • Page 18 All 4 connection slot positions in the figure. Front connection slot position. Connection slots are fixed together with threaded pins – M10x90 ISO 7985.
  • Page 19 Remove the back decoration. Back connection slot position. Connection slots are fixed together with threaded pins – M10x90 ISO 7985.
  • Page 20 River the connection plate on the back of the connection. Rivets D4.8x10. Example of installed serve-overs.

  • Page 21: Different Covers Installation

    DIFFERENT COVERS INSTALLATION 5.1. Installation of the dust covers (optional) 15 min Fix the front dust cover with self-tapping screws D4,2x13. Fix the rear dust covers and cover connector with self-tapping screws D4,2x13.

  • Page 22: Installation Of The Leg Panels (Optional)

    Fix the side dust covers with self-tapping screws D4,2x13. 5.2. Installation of the leg panels (optional) 15 min Attach the front panel to the leg.
  • Page 23 Fix the sides of the panel with self-tapping screws D4.2x13. Fix the back panel with self-tapping screws D4,2x13.

  • Page 24: Glass Stand Adjustment On Vega Space Qb Freezer Lu

    GLASS STAND ADJUSTMENT ON VEGA Space QB Freezer LU Hex 4, 5 15 min To adjust the angle and the height of the stand, slightly loosen the bolts indicated on the left of figure above. Adjust the stand angle and height by rotating the bolts indicated on the right of figure above.

  • Page 25: Connecting The Unit To The Power Supply

    Do not use extension cords or multiple socket strips. DRAINAGE 7.1. Drainage system Freezer Vega Space QB Freezer to be equipped with suitable drainage system. The condensate can be drained to the tub trough the drainage siphon. Also, condensate drainage can be connected to the common sewerage system.

  • Page 26: Cleaning

    8.3. Cleaning The freezer must be regularly cleaned as food products are sensitive to bacteria and microorganisms. Also, the packaging of displayed products may be damaged, liquid products may damage the metal parts of the freezer and small products can enter drainage openings and affect condensate drainage.

  • Page 27: Energy Saving

    • Make sure that the drainage openings are not clogged, and condensate drains freely. • Remove dust, possible residue of food products and the condensate residue from surfaces. • Disinfect the internal space of the serve-over. • Clean and disinfect detached parts and dry them. •...

  • Page 28: Testing

    14. ACCESSORIES Variety of special accessories available on request, such as: partitions, tabs, price holders, a drainage collection tub, evaporation baths, safety bumpers, etc. For more information, please call FREOR LT or sales partner. 15. TECHNICAL DATA 15.1. Electrical layouts The layouts are in the electrical console.
  • Page 29 Possible causes: Error signal Potential reason Troubleshooting Power supply failure (the Check electrical installations, system does not receive the network, and fuses. power supply). The temperature of the Remove warm products from the uploaded products is cabinet and freeze them up to higher than the the necessary temperature in the temperature in the internal...
  • Page 30 Check for the phase matching (in the event of changing phases, one-phase cabinet elements can The freezers out of order. Power supply malfunction. be operational). Check switches. Check the power network. Fluctuations of the electrical network voltage. Refrigeration cycle Contamination of refrigerant malfunction.

  • Page 31: Meanings Of Symbols

    16. MEANINGS OF SYMBOLS Symbol Meaning Type Qualified specialist; Work clothing; Protective gloves; Brittle surfaces; Wrench; Sizes: 13, 17, 32 Screwdriver; Rubber hammer; Protective goggles; Silicone pistol; Clamp; Hex key; Size 4, 5...
  • Page 32 FREOR LT, UAB Manufacturer of the commercial refrigeration equipment Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania T: +370 5 232 9188 E: sales@freor.com www.freor.com DOM-1KKOX-00000E_v1.0 FREOR LT is not affiliated with Chemours or FREON.
