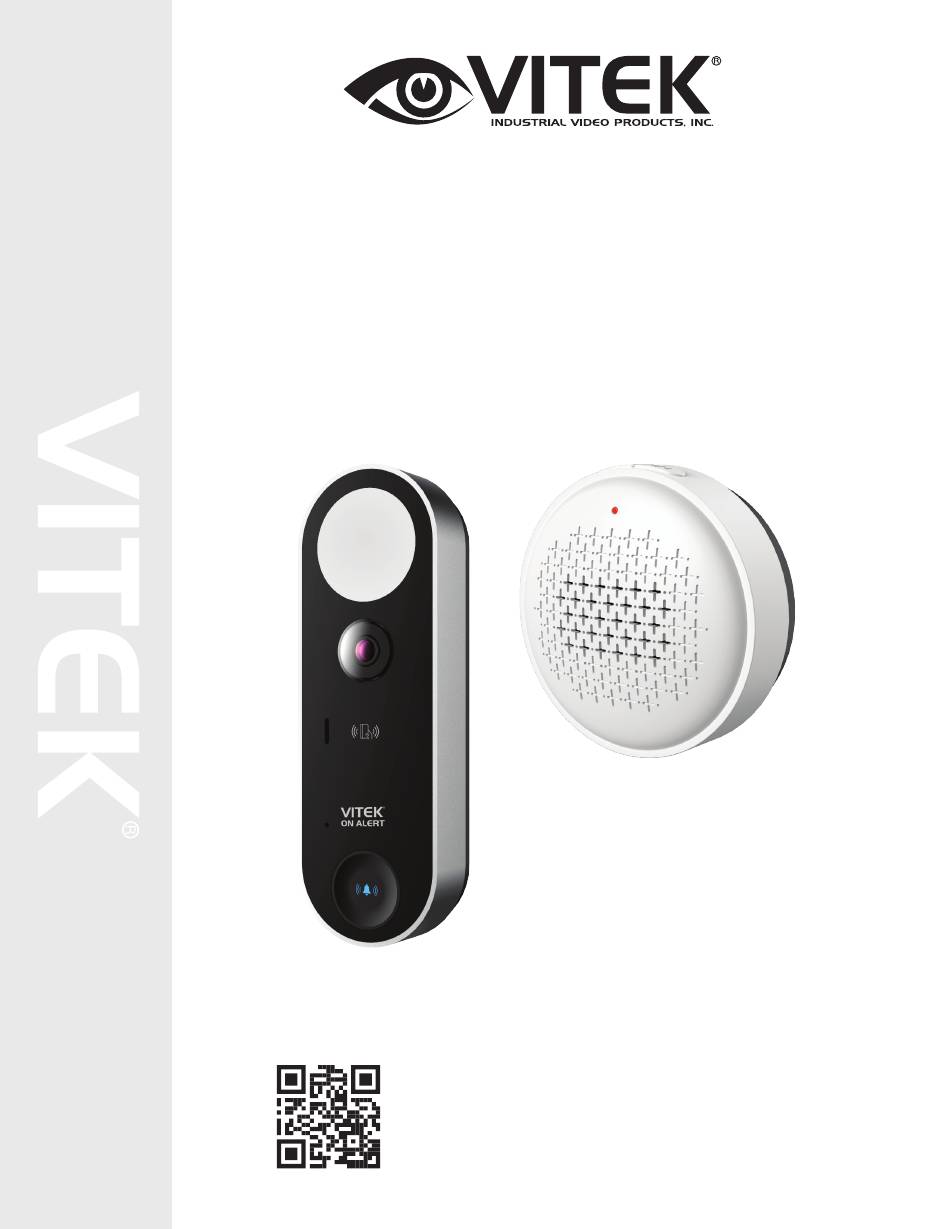

DOORBELL CAMERA
SET-UP GUIDE
VITEK ON ALERT SERIES
CONNECT TO MOBILE DEVICE USING IP
TOOL OR TRANSCENDENT APP
& SET-UP INCLUDED CHIME
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
https://vitekcctv.com

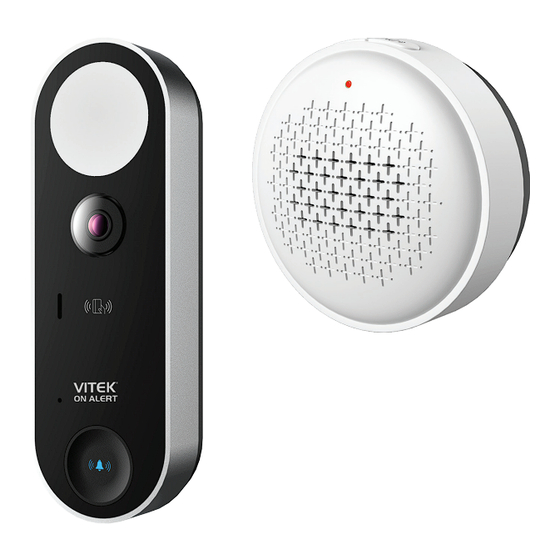

VT-DBCFA-WP1
VITEK On Alert Series 2MP
WiFi, PoE / DC12V Wiegand
Doorbell Camera with
Built-in Mic and Speaker, plus
included Chime (VT-CH1)
10/2024 : REV-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ON ALERT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek ON ALERT Series

Summary of Contents for Vitek ON ALERT Series

  • Page 1 VITEK ON ALERT SERIES CONNECT TO MOBILE DEVICE USING IP TOOL OR TRANSCENDENT APP & SET-UP INCLUDED CHIME VT-DBCFA-WP1 VITEK On Alert Series 2MP WiFi, PoE / DC12V Wiegand Doorbell Camera with Built-in Mic and Speaker, plus included Chime (VT-CH1)
  • Page 2 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up This guide will help you program and connect the Vitek Doorbell to your mobile device. Connect the doorbell to a PoE switch or a 12vdc power supply to doorbell and connect to a standard switch.

  • Page 3: Download Mobile App

    VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up After the Doorbell is connected to a switch, connect a computer to the PoE switch and run IP Tool 3. The icon is as follows:...
  • Page 4 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Once downloaded please open the App and the following screen will appear: Please tap the following symbol on the upper left-hand corner. This will bring you to the following screen:...
  • Page 5 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up The Doorbell requires that the user has a registered account. Please tap where it says “Not logged in”. This will bring up the following screen: Please enter a valid email and password to set up the account.
  • Page 6 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Once logged in, click on the "Config" option, then click on "Network" > "P2P" enable "P2P." Click "Save" to apply the changes. Enable "P2P." Click "Save" to apply the changes.
  • Page 7 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Now, navigate to "System" > "Basic Information" to view the doorbell's P2P (QR) code. The "Binding State" should display as "Unbound." Using the Transcendent Viewer app, scan the doorbell’s QR code. Ensure you are logged in to the app.
  • Page 8 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Connecting to the Doorbell In the Transcendent Viewer app, click on the top three squares and go to the "Server List." Locate the doorbell account and ensure the icon is green, indicating the connection is established.

  • Page 9: Formatting The Sd Card

    VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Formatting the SD Card To format the SD card, log into the doorbell's local web interface using its IP address. Use the default credentials: Username: admin Password: 123456 Navigate to "System"...
  • Page 10 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Recording and Snapshot Settings Under the "Record" section, you can program the doorbell's recording schedule (optional). Under "Snapshot," you can configure the image format and resolution. You can also...
  • Page 11 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up Wi-Fi Connection The Transcendent Doorbell supports 2.4GHz Wi-Fi. To connect: Use a PoE switch or a 12V power supply. In the menu, navigate to "Config" > "Network" > "Wi-Fi."...
  • Page 12 VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up The Doorbell should now be available on Wi-Fi and able to connect to your phone using P2P CODE. Chime Setup The Transcendent Doorbell includes a wireless chime.

  • Page 13: Limited Product Warranty

    VITEK SET-UP GUIDE - VITEK ON ALERT Doorbell Camera: Connect to Mobile Device & Set-up LIMITED PRODUCT WARRANTY This VITEK product carries a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free...
