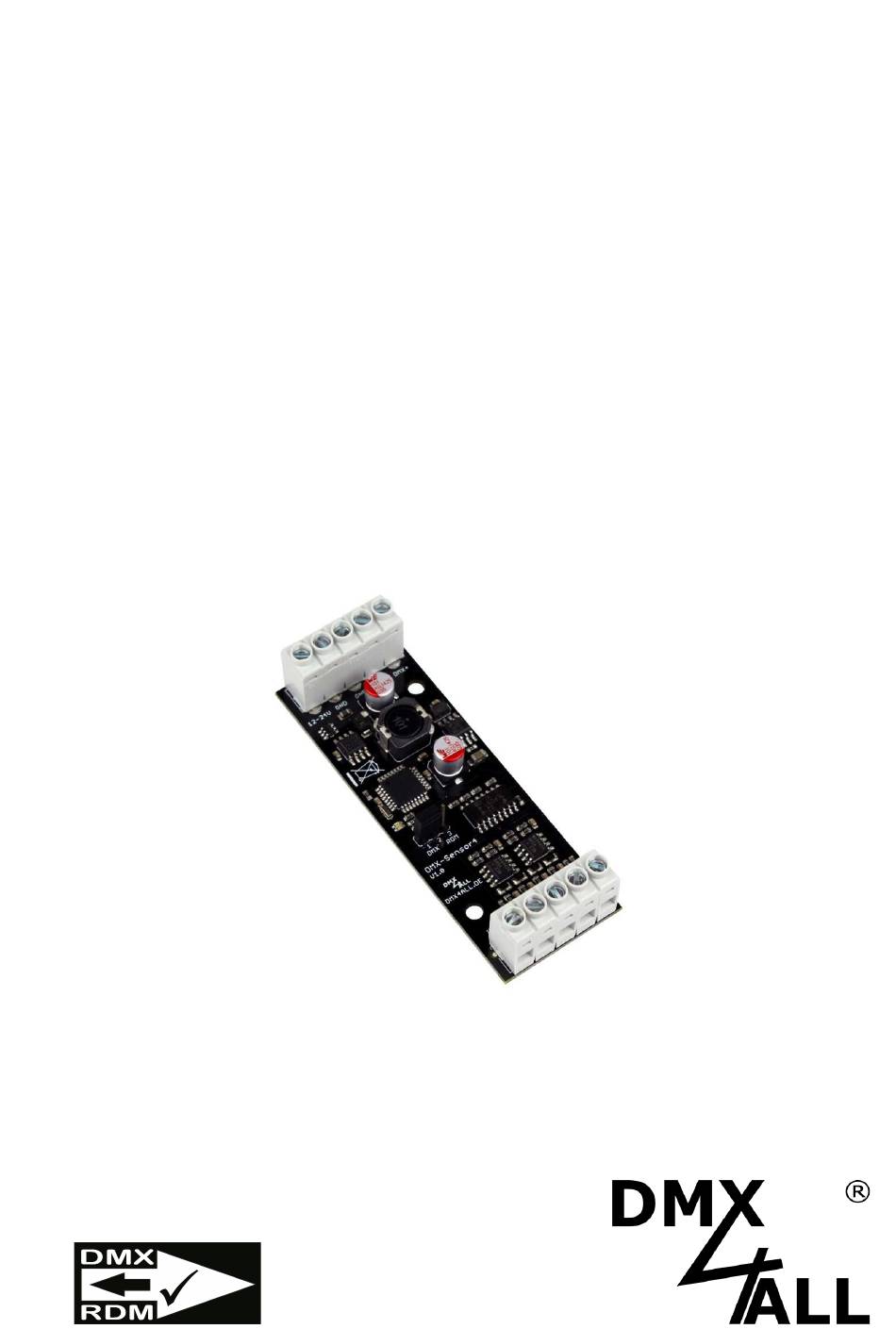

- Page 1 DMX/RDM-Sensor 4 User Manual...
-
Page 2: Table Of Contents
DMX/RDM-Sensor 4 For your own safety, please read this user manual and warnings carefully before installation. Contents Description ........................3 Content ........................4 Connection ......................... 5 Operation Mode ......................6 DMX ........................6 RDM ........................7 RGB-LED-Display ....................... 7 Configuration ......................8 RDM ........................... -
Page 3: Description
DMX/RDM-Sensor 4 Description The DMX/RDM-Sensor 4 is a converter with 4 signal inputs and can be used both as a DMX output device / DMX source or as an RDM device. Different Operation Modes The DMX/RDM-Sensor 4 can be run as DMX output device (inputs to DMX channels) or RDM device (inputs to sensor values). -
Page 4: Data Sheet
DMX/RDM-Sensor 4 Data Sheet Power supply: 12-24V DC (150mA@12V / 100mA@24V) Protocol: DMX512 or RDM Operation modes: DMX (Inputs to DMX channels) RDM (Inputs to RDM sensor values) Inputs: 4 Analog (0-10V) or Digital Inputs Connections: Screw terminals Dimension: 29,2mm x 82mm... -
Page 5: Connection
DMX/RDM-Sensor 4 Connection POWER 12-24V DMX / RDM DMX-Sensor 0-10V 0-5V... -
Page 6: Operation Mode
Pin 1 and 2 = DMX Pin 2 and 3 = RDM Within the DMX operation mode, the DMX/RDM-Sensor 4 is a DMX source. The input signals are outputted according to the DMX addresses and DMX personality specified in the configuration. -
Page 7: Rdm
DMX/RDM-Sensor 4 Within the RDM operation mode, the DMX/RDM-Sensor 4 is a RDM device. The input signals are provided according to the configuration via RDM sensor values. DMX/RDM POWER 12-24V Gateway DMX/RDM Gerät DMX-Sensor RGB-LED-Display The DMX/RDM-Sensor 4 has one RGB-LED-Display, showing the current device... -
Page 8: Configuration
DMX/RDM-Sensor 4 Configuration The DMX/RDM-Sensor 4 must be configured in RDM mode. Jumper must be plugged for RDM (Pin 2 and 3) Connect the DMX/RDM-Sensor 4 with a ArtNet-RDM Gateway Use a RDM-Software, to set parameters The free RDM Configurator is recommended in combination with a DMX-Stage Profi... -
Page 9: Rdm
DMX/RDM-Sensor 4 RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings can occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary. - Page 10 DMX/RDM-Sensor 4 Parameter ID Discovery ANSI/ Command Command Command PID: SERIAL_NUMBER 0xD400 PID: AVERAGE_FILTER 0xD470 PID: SLOPE_ADJUST 0xD471 PID: DMX_CHANNELS 0xD472 1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands:...
- Page 11 DMX/RDM-Sensor 4 DMX_CHANNELS PID: 0xD472 This parameter sets the DMX channels. Send: PDL=0 Receive: PDL=32 (32 Byte ASCII-String) Send: PDL=2 (32 Byte ASCII-String) Receive: PDL=32...
-
Page 12: Lock Device Settings
DMX/RDM-Sensor 4 Lock device settings The RDM parameters Lock Pin and Lock State allow or prohibit changing saved RDM parameters. Lock Pin The four-digit pin code number for the lock function can be set using the Lock Pin parameter. After entering the correct currently used PIN (Old PIN) in the RDM software (e.g. -
Page 13: Factory Reset
DMX/RDM-Sensor 4 Factory Reset To reset the DMX/RDM-Sensor 4 into delivery status, select and execute the parameter FACTORY_DEFAULTS via RDM. -
Page 14: Dimension
DMX/RDM-Sensor 4 Dimension All details in mm... -
Page 15: Accessory
DMX/RDM-Sensor 4 Accessory Top-hat rail housing 350 Top-hat rail housing 350flat Wall bracket for top-hat rail housing Power supply 12V... -
Page 16: Revision History
DMX/RDM-Sensor 4 Revision History Firmware V1.00 First Release... -
Page 17: Ce-Conformity
DMX/RDM-Sensor 4 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. -
Page 18: Risk-Notes
DMX/RDM-Sensor 4 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. - Page 19 Germany Last changes: 18.09.2024 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
