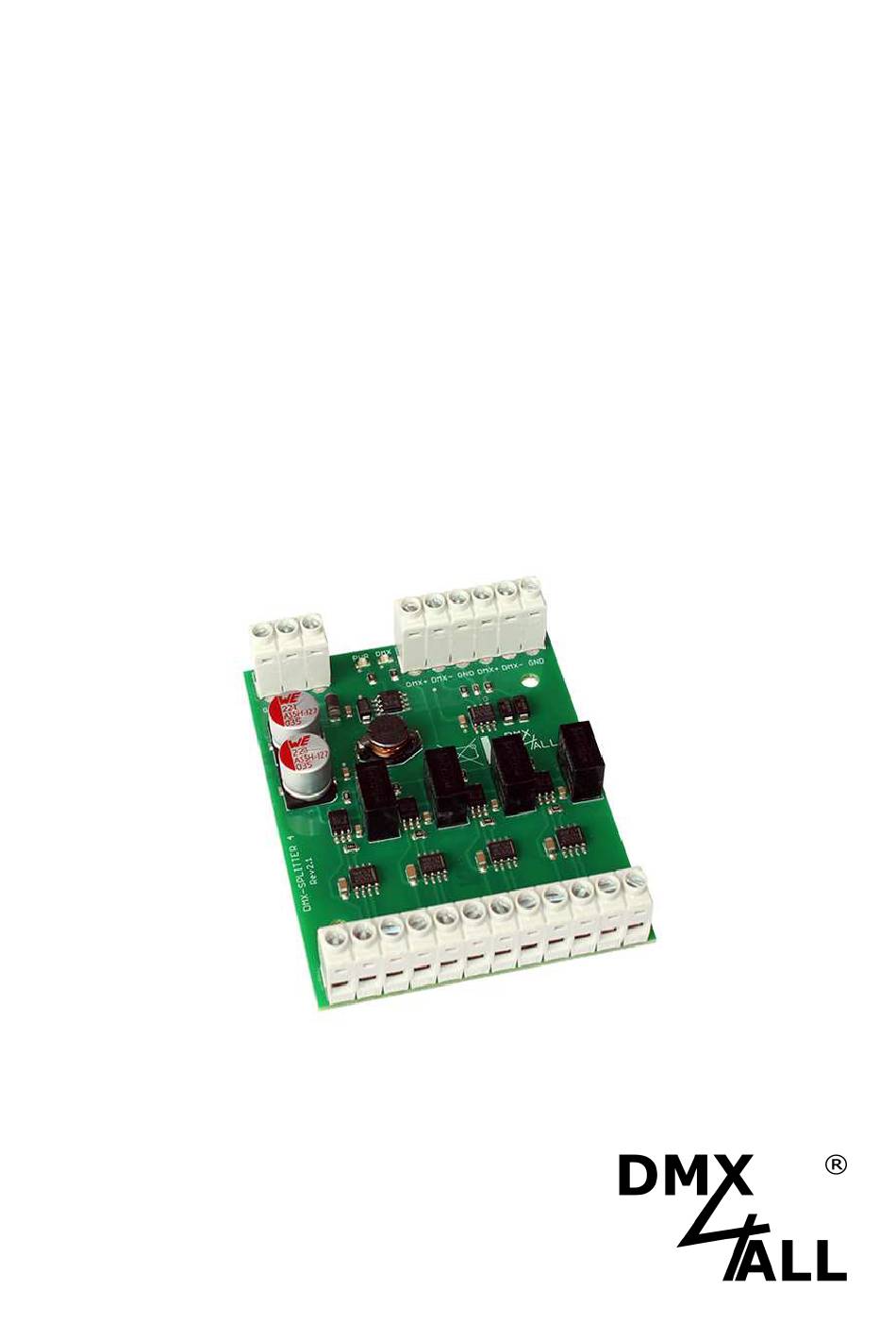

- Page 1 DMX-Splitter 4 User Manual...
-
Page 2: Table Of Contents
DMX-Splitter 4 For your own safety, please read this user manual and warnings carefully before installation. Contents Description ........................3 Data Sheet ........................4 Content ........................4 LED-Display ........................ 4 Connection ......................... 5 Dimensions ......................... 6 Accessories ........................ 7 CE-Conformity ......................8 Disposal ........................ -
Page 3: Description
The power supply occurs via one power supply unit. The voltage range is between 8V up to 24V. Compact design for top hat rail mounting The DMX-Splitter 4 is suitable for installation in top hat rail mountings with a width of 7cm due to its small size. LED-Display Two LEDs show clearly the current operation mode. -
Page 4: Data Sheet
DMX-Splitter 4 Data Sheet Power supply: 8-24V DC (350mA@12V; 200mA@24V) Input: 512 Channels Output: 4x 512 Channels galvanically isolated Connections: Screw terminals Dimensions: 64,2mm x 82mm Content DMX Splitter 4 Quick manual german and english LED-Display LED green The green LED lights up as soon as operation voltage is connected. -
Page 5: Connection
DMX-Splitter 4 Connection DMX IN POWER 12-24V DMX-Splitter 4 If more than 4 DMX-Outputs are needed, several DMX-Splitter 4 can be combined as follows:... -
Page 6: Dimensions
DMX-Splitter 4 Dimensions All details in mm... -
Page 7: Accessories
DMX-Splitter 4 Accessories Top hat rail mounting 700 Power supply 12V... -
Page 8: Ce-Conformity
DMX-Splitter 4 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. -
Page 9: Risk-Notes
DMX-Splitter 4 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. - Page 10 Germany Last changes: 22.07.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
