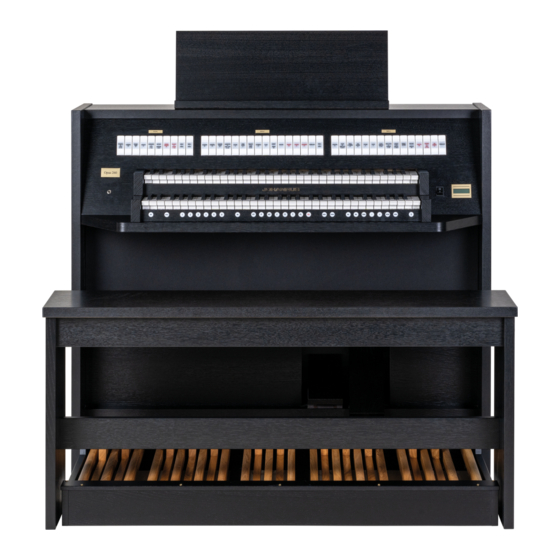

Johannus Opus 260 Quick Reference Manual

JOHANNUS Opus 260
INSTALLATION MUSIC DESK:
- Turn countersunk brass screws into music desk slat by hand till screws stick out 2 mm.
- Place music desk at the right position, with screw points into the pre drilled holes.
- Tighten screws of the music desk with screw driver. Electric screw driver is not recommended.
INSTALLATION PEDAL BOARD:
- Shift pedal board against black pedal front cover. Pedal bolts will stick out 5 mm
- For security reasons mount pedal board to organ with wing nuts.
OVERVIEW OF CONTROLS
A Pedal stops
B Great stops
C Swell stops
D Headphones
E SET (save registration)
F STYLE: Organ style selection
G Capture memory locations (1-6)
H MB: Manual Bass.
I Pre-programmed memory locations
J RO: Reeds Off
K PANFL.: Panflute,
TRUMP.: Trumpet.
L VOL.: Volume control Organ,
REV.: Volume control
Cathedral (reverb)
M TRANS.: Transposer
N - and + pistons
O ENTER
P MENU
Q 0: Recall / Reset
R On/Off pistons
S Display
T Manual Great
U Manual Swell
SWITCH ON
Switch on the organ with the on/off piston at the right, next to the manuals.
Wait several seconds. Starting the control functions and the settings will take some time.
The organ is ready when the lights of the 0 piston and standard functions light up and the
display shows the settings.
ACCESSORIES
RO: Reeds Off
Reeds Off switches off all reeds simultaneously.
MB: Manual Bass
Couples the Pedal monophonic to the Great. Only the lowest key that is played on the Great
is coupled from the Pedal to the Great.
TRANS.: Transposer
The Transposer function shifts the pitch by half-tone increments (from -8 to +8).
The set pitch can be read on the display (Tr:..).

Press the TRANS. piston.

Use the - and + pistons to set the pitch.
MENU: Johannus Menu
In the Johannus Menu several functions of the organ can be set.

Press the MENU piston to activate the Johannus Menu.

Use the - and + pistons to navigate through the menu.

Use the ENTER piston to confirm.

Use the MENU piston Cancel or step back in the menu.
0: Recall / Reset function
The 0 piston cancels registration in two ways:

A short press on the 0 piston: the last register change will be cancelled.

A long press on the 0 piston: all stops will be turned off.
VOLUME CONTROLS
VOL.: With the volume button VOL. (Volume) the total volume of the organ can be set.
Press the VOL. button so that it lights up, then use the + or – button to increase or decrease
the volume. The volume level can be read from the display, behind the symbol.
REV.: The volume control REV. (Reverb) allows you to set the volume of the acoustic effect.
Press the REV. button, so that it lights up, then use the + or – button to increase or decrease
the reverb volume.
Quick Reference Guide
